0.8 Inch 16 Segment LED Green - Common Anode

Name: 0.8 Inch 16 Segment LED Green - Common Anode
Brand: Seeed Studio
SKU: SS104990131
Price: 5.632 AUD
Availability: InStock
Rating: 5 (1 reviews)

Default Title: Local stock

Variant

Save 5% A$5.93

Price:

A$5.63 Inc. GST

Price match

SKU:

SS104990131

Quantity:

2 units Ships in 24 hours

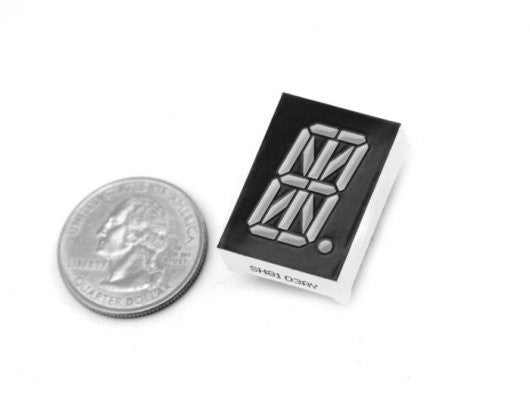

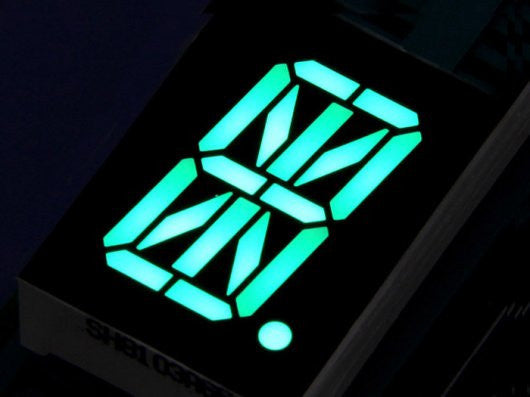

This is a 16 segment common cathode LED and is green. The advantage of 16 segment is that you can not only display 1234567890, but also ABCDEFGHIJKLM.

It is compatible with bread board and can work with Arduino by adding some current limiting resistors. So, it Suitable for people who is newbie of electronic.

Note: It just a segment LED without control chip.

Features

High Light
low current
low-voltage
low energy
Longevity
IC-compatible

Specification

0.80 inch
common port: 11
size: 20.0 x 27.7 x 8.5mm
Colors: green
surface colors: Black
Working temperature: -20~60°C

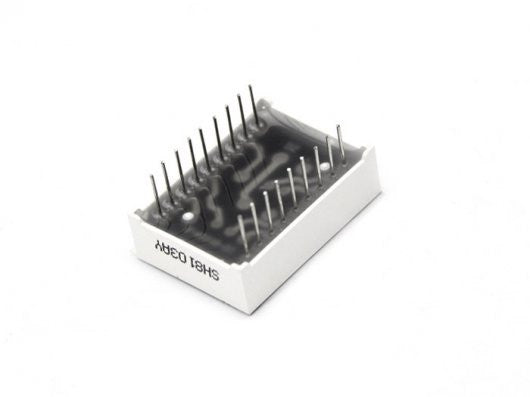

Mechanical Outline：

Unspecified Tolerances is: X±0.2

Absolute Maximum Ratings

Parameter	Symbol	Maximum Rating	Unit
Power Dissipation	Pd	-	mW
Peak Forward Current	Ifp	150	mA
Continuous Forward Current	Ifm	20	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	topr	-40 → +85	℃
Storage Temperature Range	Tstg	-40 → +100	℃
Static Voltage	Var	-	V

* Lead Sodering Temperature：260℃ for 3 seconds

* For operation above 25℃, The Ifm Ifp & Pd must be derated, the Curent derating is –0.36mA/℃ for DC drive and -0.86mA/℃ for Pulse drive, the power dissipation is -0.75mW/℃. The product working current must not more than the 60% of the Ifm or Ifp according to the working temperature.

Optical-Electrical Characteristic

Parameter	Test CONDITING	Symbol	Min	Type	Max	Unit
Luminous Intensity	IF=10mA	Iv	200	250	300	Mcd
Forward Voltage	IF=10mA	VF	-	3.2	-	V
REVERSE Current	VR = 5V	IR	-	80		uA
Peak Wavelength	IF=10mA	λp	515	517	520	nm
Spectral Bandwidth	IF=10mA	△λ	-	40	-	nm
View Angle	IF=10mA	2θ1/2	-		-	Deg.

Storage & Soldering Condions:

Store with care. Storing the units in bad condition will cause the reflector sheet and decrease it’s adhesive power. Storage the products under the condition :temperature ( 25℃ ± 10℃ ) and humidity (65℃ CRH±20℃ CRH) our recommendation.

The Soldering Temperature is 260±5℃ and Soldering Time should be less than 3 sec, and soldering iron power should be less than 30W.

The soldering point should be farther than 1.6mm from boby.

For any technical support or suggestion, please kindly go to our forum.
