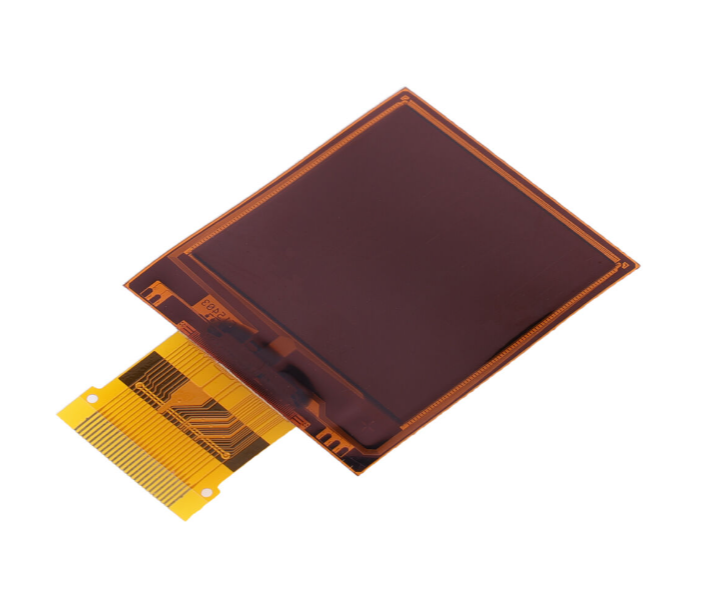

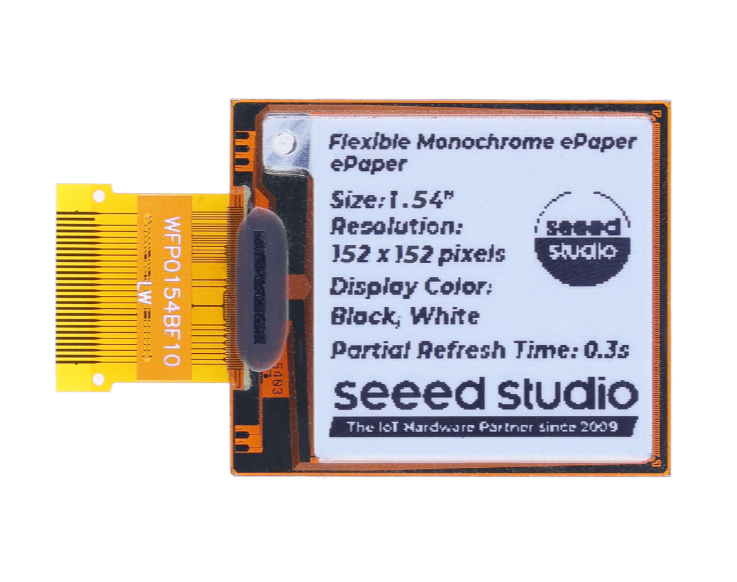

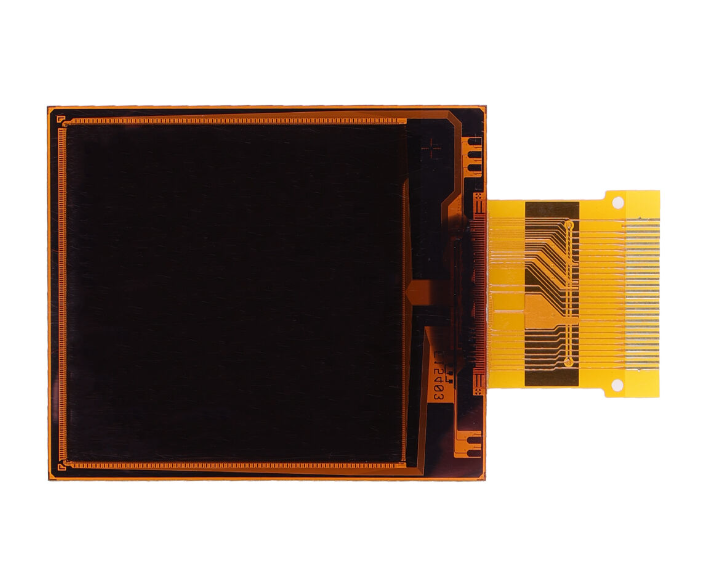

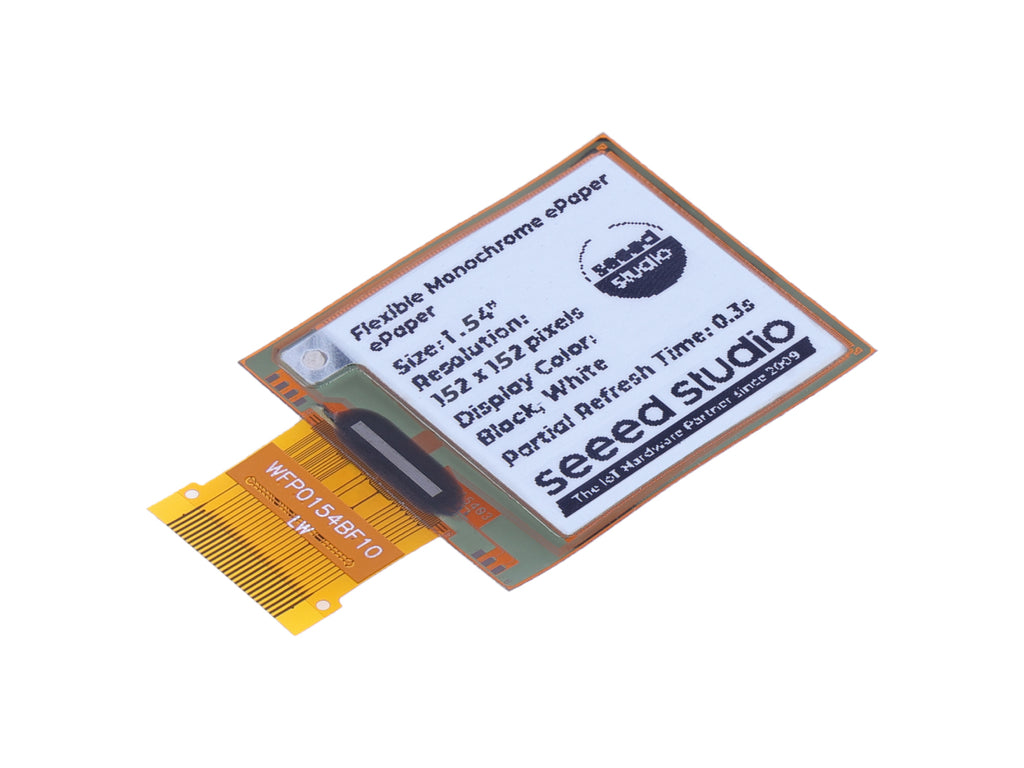

The 1.54'' Flexible Monochrome ePaper Display offers a vivid 152x152 pixel active area with 1-bit white/black capability, allowing for high contrast visuals. Its power consumption is exceptionally efficient, and it has a fully reflective mode..
Features
- Exceptional Readability: The display's reflective properties ensure effortless legibility of text and images in different lighting environments.
- Ultra-Low Power Usage: E-paper only consumes power during updates, leading to prolonged battery life and efficient energy use.
- Wide Viewing Angles: Greater than 170 degree, unaffected by light direction.

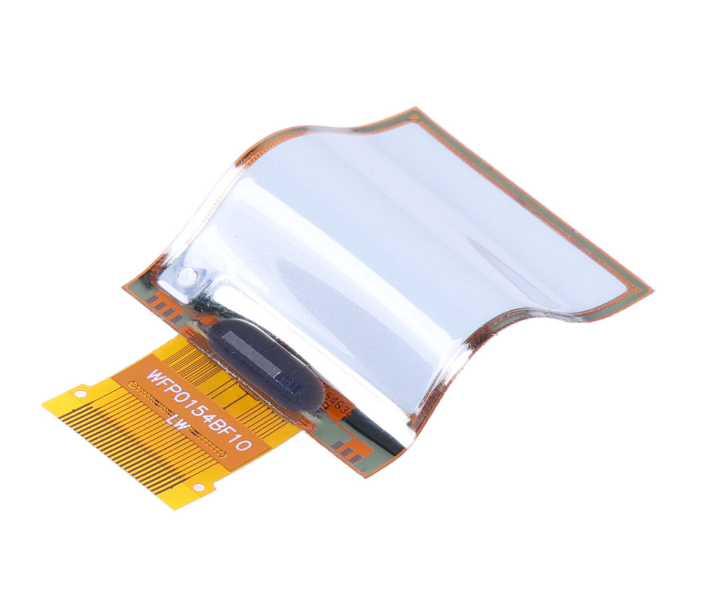

- Flexibility and Portability: Allowing bending and curling for versatile applications.
- Eye-Friendly and Heat-free: Eliminate glare, providing a comfortable viewing experience while remaining cool without generating heat
Description
The 1.54 inch E-paper Display is a flexible substrate-based display with a 152x152 pixel active area and 1-bit white/black full display capabilities. It features high contrast, high reflectance, ultra-wide viewing angle, ultra-low power consumption, and pure reflective mode. The display is bi-stable, operates in commercial temperature range, and has landscape and portrait modes. It is available in COG package IC thickness 280um and has an on-chip display RAM and waveform stored in On-chip OTP. The display also has a serial peripheral interface available, on-chip oscillator, and on-chip booster and regulator control for generating VCOM, Gate, and source driving voltage. This advanced display is designed to reduce energy consumption while delivering wide viewing angles and sharp contrast. The display operates in a commercial temperature range, and the on-chip RAM and OTP eliminates the need for external memory. Plus, the serial peripheral interface and on-chip oscillator make setup and configuration a breeze.
What is an E-Paper?
E-Paper, a form of display technology, recreates traditional paper and ink for high contrast readability in various lighting, from direct sunlight to complete darkness. Microcapsules contain liquid-suspended charged particles, which move with an applied electric field to create different shades and colors. E-Paper has energy-savvy applications in e-readers, smartwatches, and electronic shelf labels.
Advantages Over Traditional Displays
E-Paper displays boast superior readability to regular displays, visibility in bright light, low energy draw, sleek design, wide viewing angles, and prolonged battery life. Perfect for portable gadgets and areas requiring low glare and power efficiency.
Applications
- Reading equipment
- Mobile device
- Electronic tags and price tags
- Smart Wearables
- Electronic Shelf Labels
- Smart Card
Specification
Parameters | Details |
Model No. | GDEW0154I9FC |
Type | Dot Matrix |
Size | 1.54 inch |
Active Area | 27.6mm x 27.6mm |
Resolution | 152 x 152 pixels |
Pixel Pitch | 0.181 x 0.181mm |
Display Color | Black, White |
Grayscale | 2 |
Partial Refresh Time | 0.3s |
Full Refresh Time | 3s |
Interface | SPI |
Viewing Angle | >170° |
Operating Voltage | 3.3V |
Operating Temperature | 0-50°C |
Driver Mode | Support XIAO/STM32/Arduino/Micropthon |
Drawing | Support GUI Drawing |
Power Consumption | 26.4mW (typ.) |
Standby Consumption | 0.0165mW |

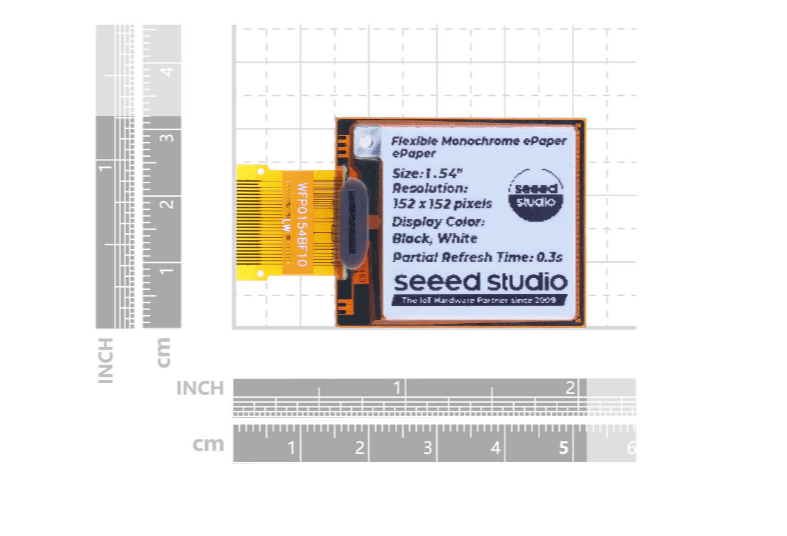

Outline Dimension | 31.8mm x 37.32mm x 0.98mm |
Weight | 3.2g |
Hardware Overview
Part List
1.54 Flexible Monochrome ePaper Display | ×1 |
FAQ
ECCN/HTS
| HSCODE | 8543709990 |
| USHSCODE | 8486400030 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
