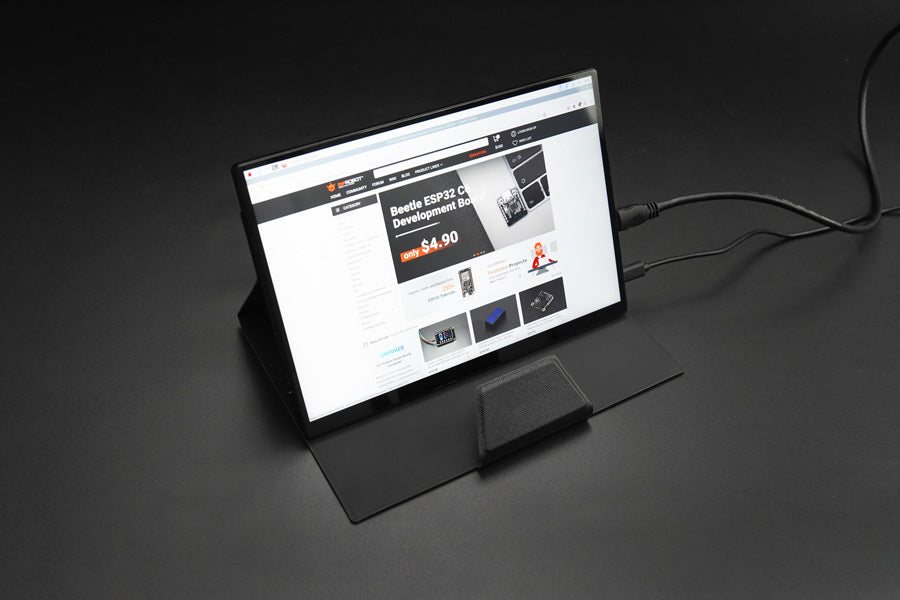

The 10.5-inch LED touch display is a versatile and portable screen solution that offers 1920x1280 HD resolution, advanced touch technology, and wide compatibility with various electronic devices. It seamlessly connects to a range of development boards, laptops, and other electronics, including LattePanda Sigma / LattePanda 3 Delta single-board computers, Raspberry Pi 4B / Raspberry Pi 5, and NVIDIA series SBCs.
High-Definition Visuals and Advanced Touch Technology
Equipped with a 1920x1280 HD resolution and an IPS panel, this display ensures sharp and vibrant visuals. The fully laminated glass and ten-point touch technology eliminate touch breakpoints, providing a smooth and responsive interaction. The LED backlight enhances brightness, contrast, and color vibrancy, delivering a superior viewing experience.
Lightweight and Portable Design

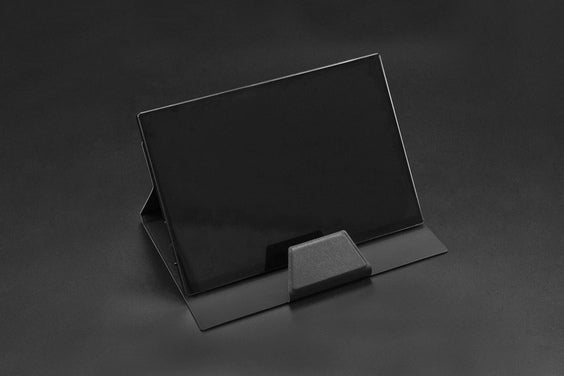

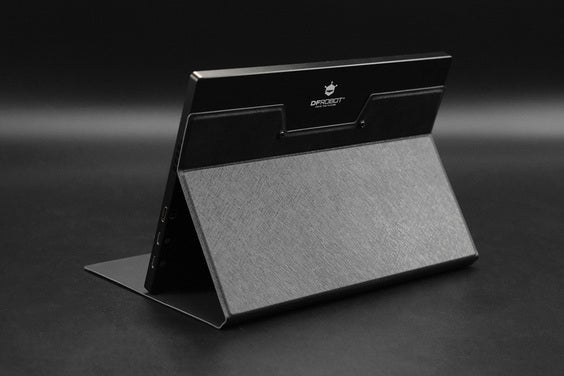

With a net weight of just 400g, the display is highly portable, making it convenient for users on the go. It comes with a leather case that not only provides protection but also serves as a desktop stand, enhancing its usability in various settings.

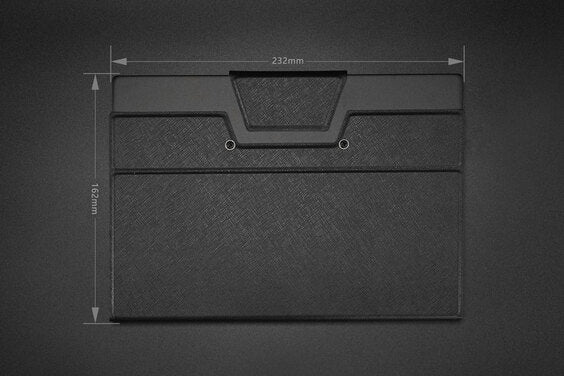

10.5-Inch Display Screen Size Diagram
Built-In Stereo Speakers
The display features built-in left and right speakers that are carefully modulated to produce high-quality stereo sound. This audio enhancement complements the visual performance, making it ideal for media consumption and entertainment.
Versatile Connectivity and Broad Compatibility
This display supports both HDMI and Type-C dual output interfaces, making it compatible with a wide range of devices, including LattePanda, Raspberry Pi 4B/5, and NVIDIA series single-board computers.It is suitable for gaming, travel, graphic design, and other scenarios that require a high-quality display.

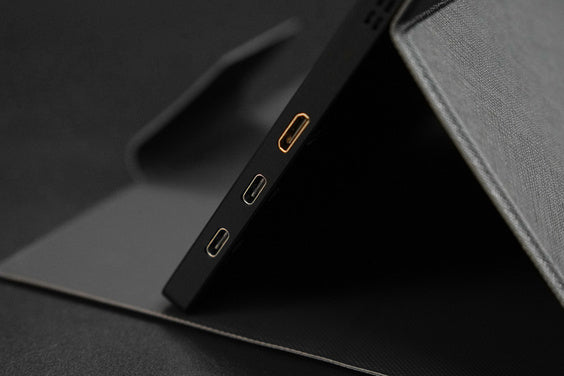

10.5-Inch Display Interface Diagram
Applications:
- Portable Coding and Development
- Travel-Friendly Gaming Setup
- On-Site Fieldwork Data Review
- Interactive Presentations for Small Groups
- Mobile Photography and Videography Monitor
Specification:
- Display Size: 10.5 inches
- Panel Type: IPS
- Backlight: LED
- Power Input: 5V via Type-C
- Resolution: 1920 x 1280 pixels
- Brightness: 400 cd/m²
- Aspect Ratio: 15:10
- Contrast Ratio: 1500:1
- Color Gamut: 100% RGB
- Refresh Rate: 60Hz
- Viewing Angle: 178° (horizontal/vertical)
- Touch Technology: 10-point capacitive touch
- Active Area: 222.048 mm (W) x 148.032 mm (H)
- Pixel Pitch: 0.11565 mm x 0.11565 mm
- Speakers: 2 x 1W (8Ω)
- Operating Temperature: 0 to 40°C
- Operating Humidity: 10% to 85% RH (non-condensing)
- Dimensions: 232 mm x 162 mm x 8.5 mm
- Net Weight: 400g

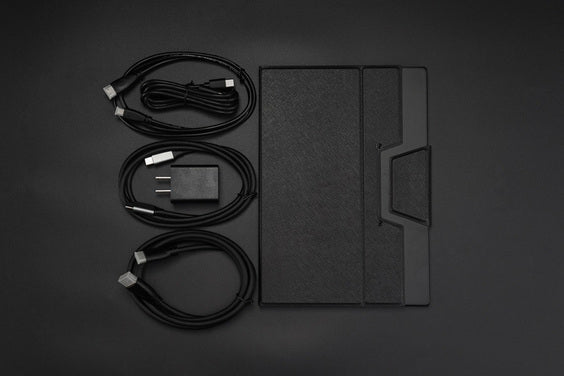

Product Includes:
- 10.5-inch 1920*1280 LED touch display (with leather case) x1
- Type-c to USB A cable x1
- Mini HDMI to HDMI cable x1
- Mini HDMI to Micro HDMI cable x1
- Dual-head Type-C cable x1
- Power adapter (with UL certification) x1
