Feature 1: Advanced mmWave Sensing for Breathing, Heartbeat and Human Presence Detection

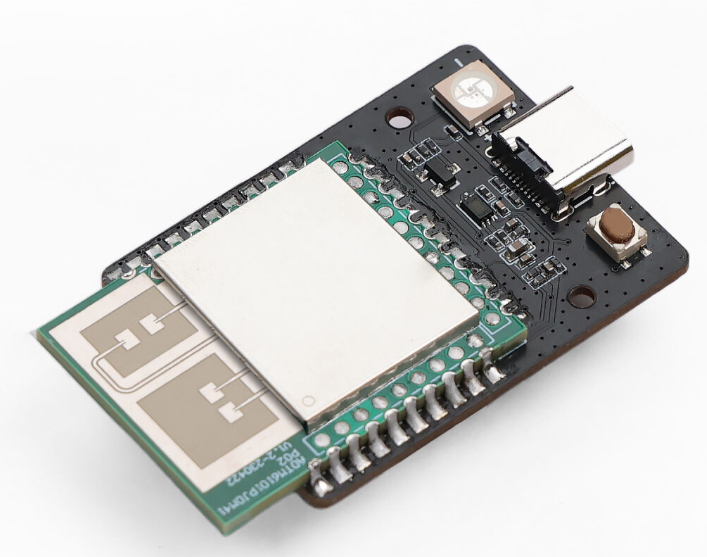

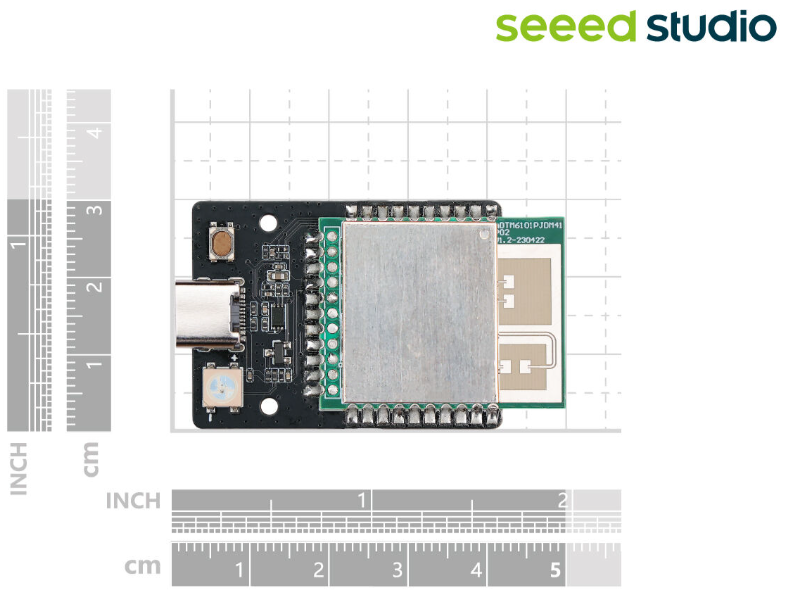

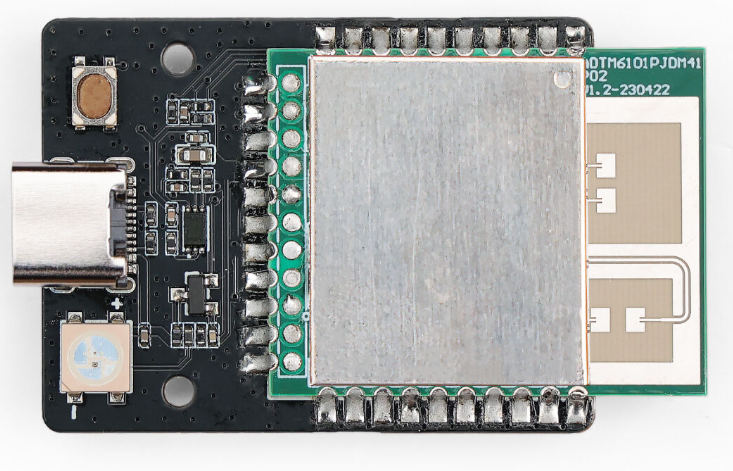

The MR60BHA2 60GHz mmWave Sensor Module excels in detecting breathing and heartbeat with pre-set algorithms, and also includes human static presence functionality.
- Human Static Presence: Measures effectively up to 6 meters.
- Breathing & Heartbeat Detection: Accurate for a single person at 1.5 meters with the device stationary.
*The above parameters have been tested in the empty deployment environments.

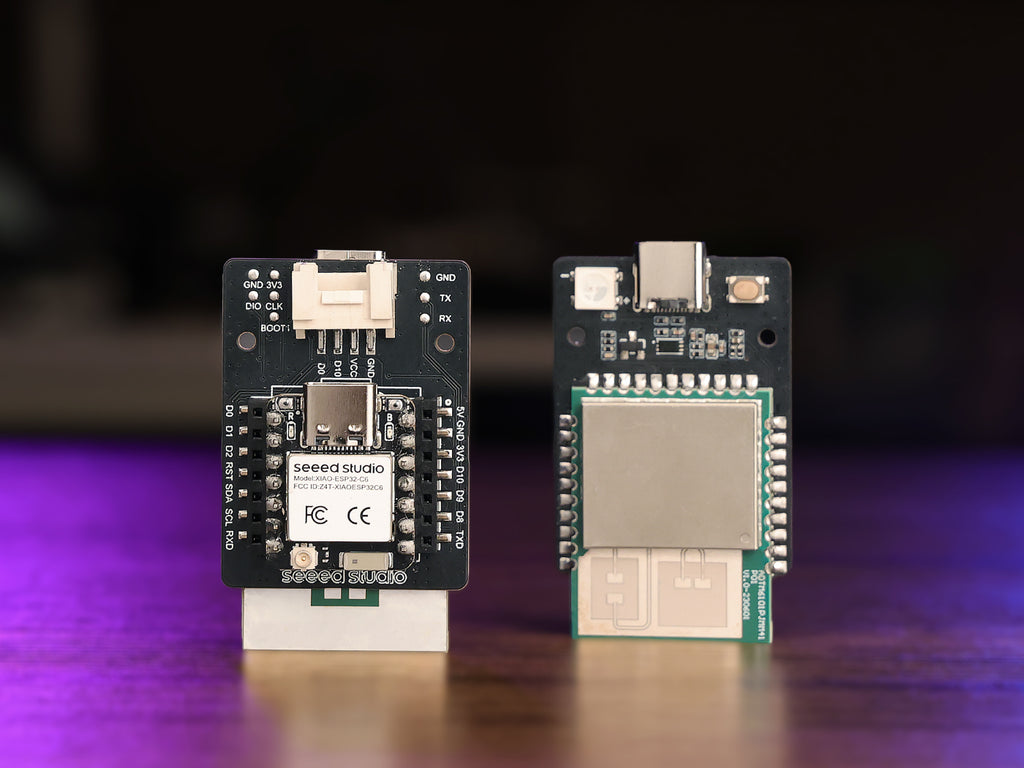

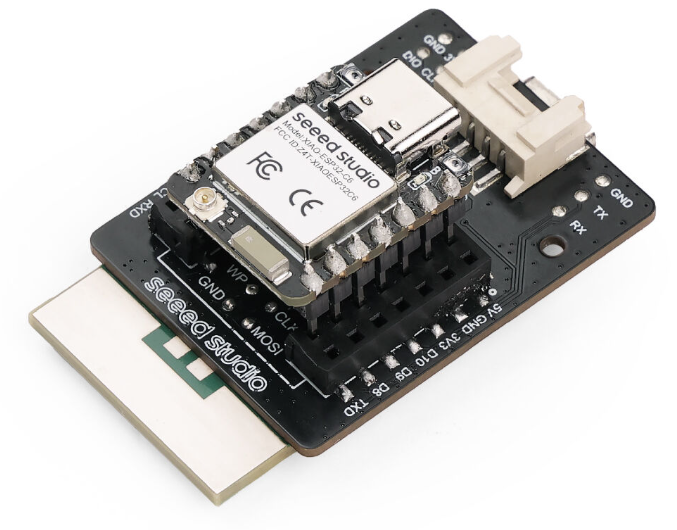

Feature 2: Powered by ESP32 & ESPHome & No-Code Integration with Home AssistantThe kit features a Seeed Studio XIAO ESP32C6 with pre-flashed ESPHome firmware, enabling seamless plug-and-play integration with Home Assistant. Configure the device in ESPHome, and no-code setup for Home Assistant in 1-2 minutes. Thanks to the integration, you can customize detection zones and access analytics to pinpoint target locations efficiently from Home Assistant.
Feature 3: Ambient Light Sensing for Responsive Automation
The mmWave sensor module includes a BH1750 light sensor, offering precise ambient light detection from 1 to 65,535 lux, with adjustable measurements up to 100,000 lux. Supported by ESPHome and Arduino IDE, it allows you to collect ambient light readings as frequently as every second, enhancing your automation's responsiveness to environmental changes.
Feature 4: Customizable Interaction
This 60GHz mmWave Sensor Module is equipped with a WS2812 RGB LED, allowing for DIY customization of the indicator light.
Feature 5: Extended Sensing or Automation with Grove

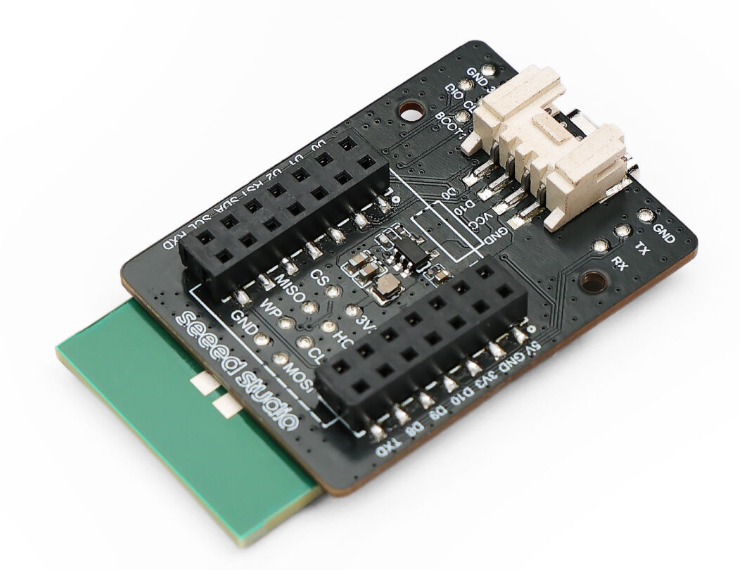

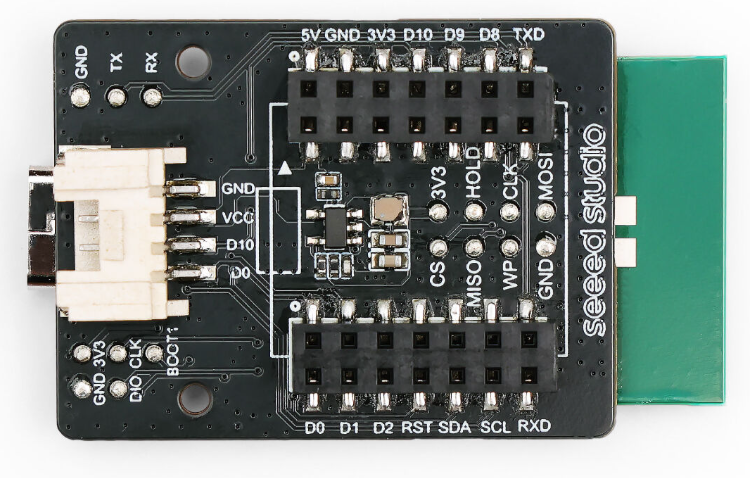

We’ve added one additional Grove Connector to the mmWave Module for easy expansion with your own Grove sensors and actuators (e.g., PIR and Relay). Choose from over 300 compatible Grove Modules!
Feature 6: Open Source 3D Printed Enclosure
To simplify deployment, we offer a 3D printed enclosure available for free download, providing a starting point to customize your casing design.
Feature 7: Open for Customization
Want to tailor make the kit to fit in your unique applications? Seeed provides one-stop R&D customization and manufacturing services for fast development from concept to production. Contact us at iot@seeed.cc to learn more.
| HSCODE | 8526109090 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
60GHz mmWave Sensor Module | x1 |
Seeed Studio XIAO ESP32C6 with Pre-Flashed ESPHome Firmware | x1 |
