Note:
Makeblock Socket Cap Screw will be replaced by Button Head Socket Cap Screw gradually, and the tool HEX Screwdriver 3mm will be replaced by HEX Screwdriver 2.5mm.
Button Head Socket Cap Screw is a new kind of Socket Cap Screw, it has smaller head that can solve most problem of interfere with other components.
Description:

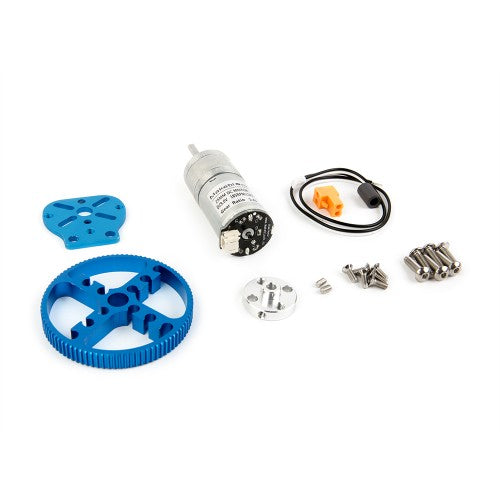

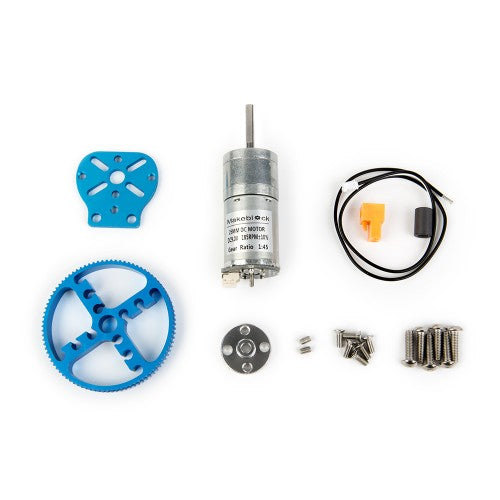

A 25mm diameter DC metal geared motor, together with a motor bracket, a shaft connector and a multipurpose wheel. The multipurpose wheel included can be used as a timing pully, or a wheel hub, or a tank wheel. This 25mm DC Motor Pack is Blue, if you need gold version please click here.

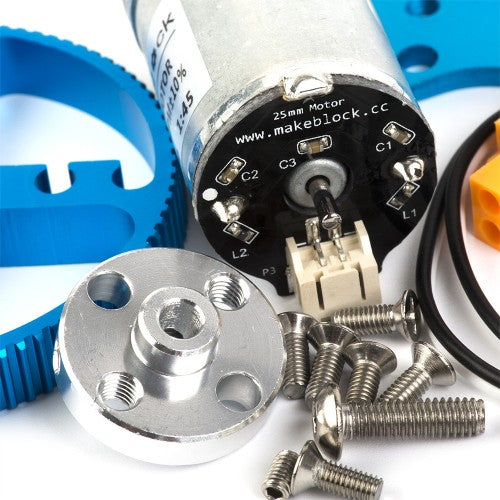

25mm DC Motor
1. Appearance size:
2. Model：LT25GA34-370T
3. Blectrical Characteristics
3.1. Test condition
3.1.1. Rated voltage： 9.0 V(DC)；
3.1.2. Ambient temperature：+25±3℃；
3.1.3. Ambient relative：60%±5%；
3.2. No-load characteristic
3.2.1 Reductionratio： 1:45 ;
3.2.2 No load current：≦ 200 mA
3.2.2 No load speed： 185 ±10%rpm;
3.3. Load characteristic
3.3.1. Rated torque： 1.5±Kg.cm;
3.3.2. Rated current：≦ 650 mA;
3.3.3. Rated speed： 135 ±10%rpm;
3.3.4. Stall torque: 4.5± kg.cm;
3.3.5. Rated current：≥ 2.0 A;
3.4. Direction of Ratation：CCW
4. Thrust play of shaft：0.05-0.5 mm;
5. Radial play of shaft：≦ 0.02 mm;

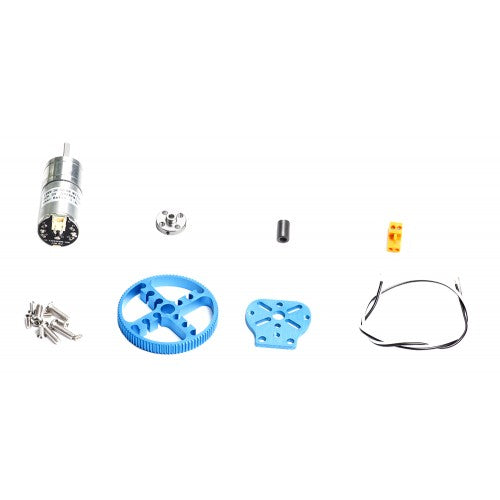

Part List:
| 1x | DC Motor-25 |
| 1x | DC Motor-25 Bracket |
| 1x | Shaft Connector-4 |
| 1x | Timing Pulley 90T |
| 4x | Screw M4x14 |
| 8x | Countersunk Screw M3x8 |
| 2x | Headless Screw M3x5 |
