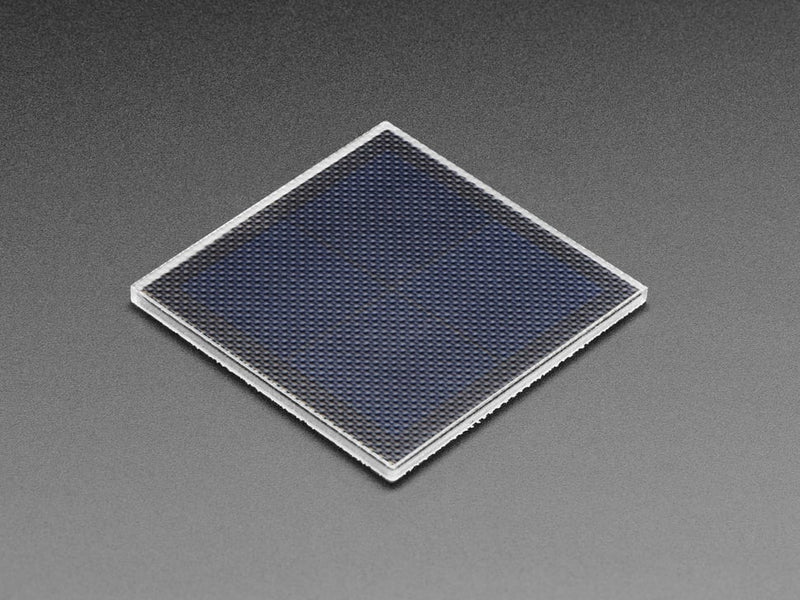

This panel is manufactured by Voltaic Systems, a reputable brand known for producing top-quality solar-powered bags and packs. It boasts features such as waterproof, scratch-resistant, and UV-resistant materials, and utilizes four high-efficiency monocrystalline SunPower cells with a remarkable 22+% efficiency. With 4 cells and a nominal voltage of 0.5V each, this panel is classified as a "2V" panel.
This 2V 0.3W Mini Solar Panel is capable of providing a nominal output of 2 volts and a peak current of 150 mA through its two solder-able back pads. Designed with ETFE (Ethylene Tetrafluoroethylene), this panel boasts exceptional durability and resistance to environmental factors, making it a superior option to traditional PET or laminate solar panels. It is built to withstand everyday outdoor use, including accidental drops and pressure.

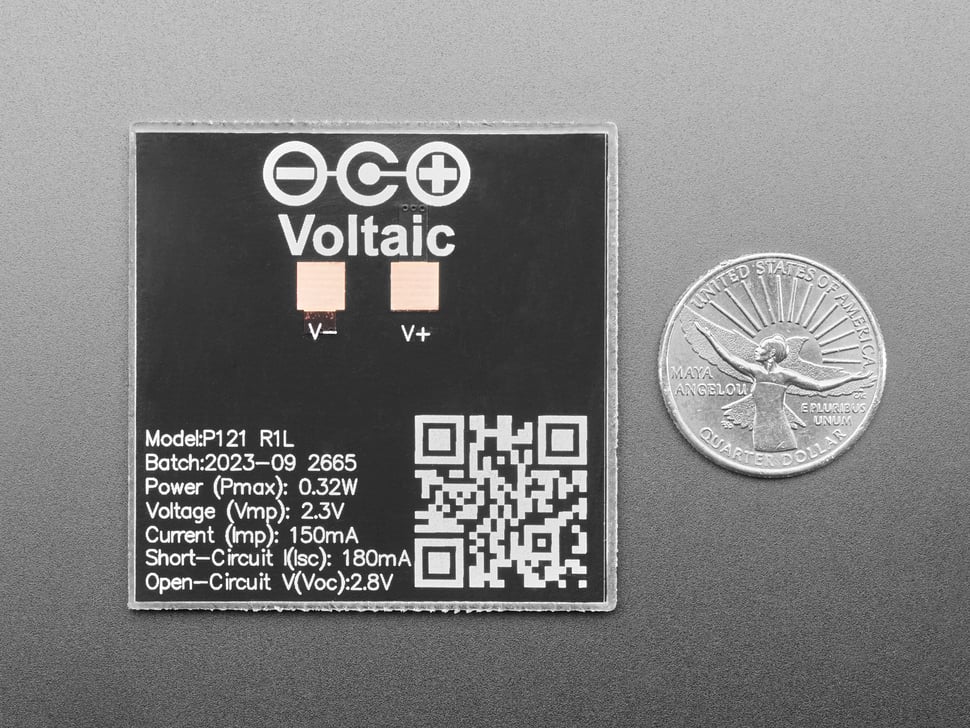

Unlike the larger panels, these don't come with a connector. Instead, there are two pads on the back. To connect, we recommend soldering two wires and attaching a 2.1mm terminal block. (Or you can cut off the alligator clips from a 2.1mm-to-clip adapter)
Note that these will not work with our solar charger boards (they expect 5.5 or 6V panels) but there may be projects that can either benefit from a smaller voltage panel, such as power harvesting circuits. Or, you could connect 3 of these in series to get nominal 6V output.
Technical Details
Features
- Waterproof (IP67)
- UV resistant (5-7 year life)
- Durable and lightweight
- High-efficiency monocrystalline cells: 22+%
- 2x Solder Pads
Size and Weight
- 52 x 52 x 3.1mm
- 8.2 grams
Construction
- Matte ETFE coating
- 1.5mm double-sided PCB
Warranty
- 2-year warranty on solar panels
- For more warranty information, see the warranty guide
Product Dimensions: 52.0mm x 52.0mm x 2.7mm / 2.0" x 2.0" x 0.1"
Product Weight: 11.0g / 0.4oz
