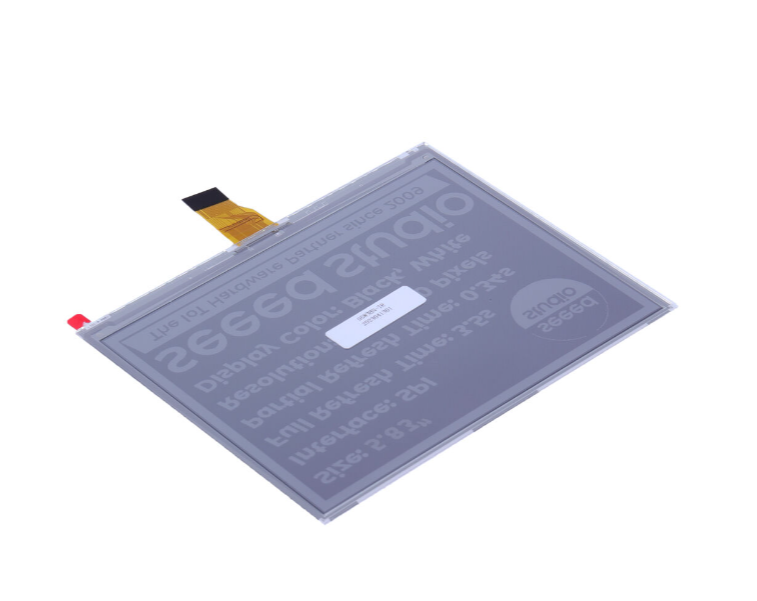

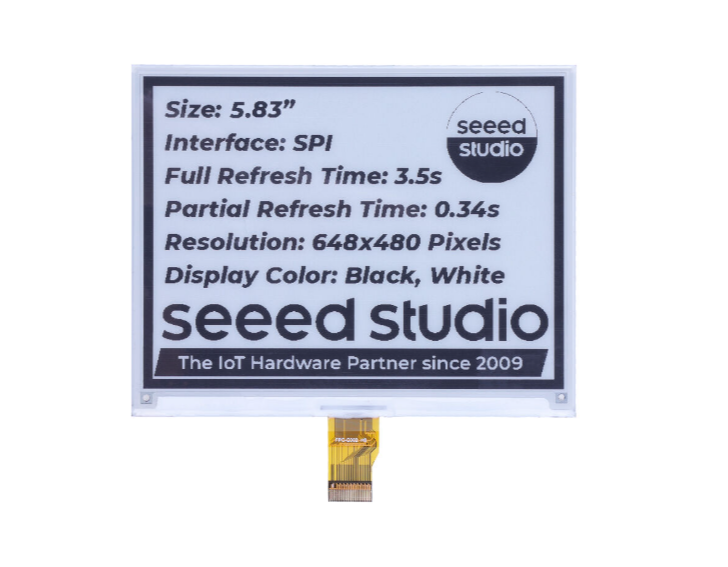

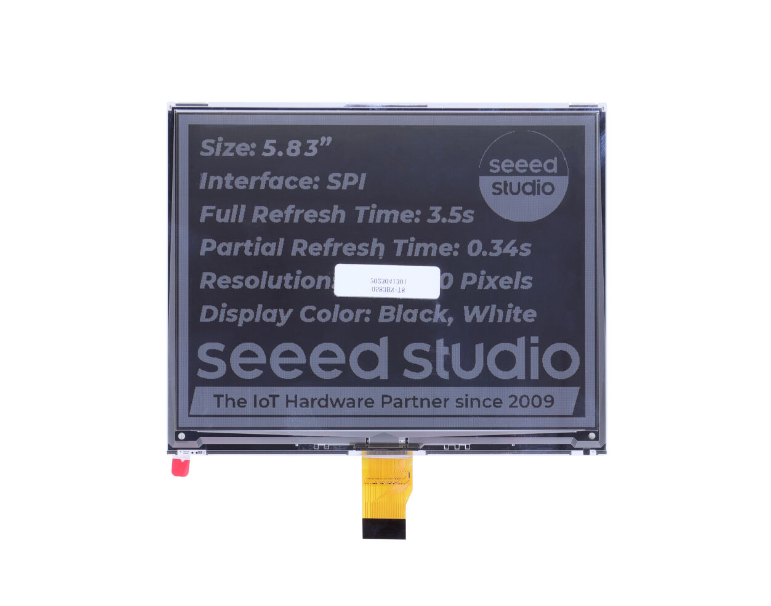

The 5.83" Monochrome ePaper Display presents a cutting-edge, power-saving solution for a variety of projects. It provides 648x480 pixels of resolution, delivering long-lasting, crisp black-and-white visuals on a 5.83" diagonal display. Furthermore, this display offers rapid refresh rates and superb contrast, lending itself to a multitude of applications, such as e-readers, smartwatches, and other handheld gadgets.
Features
- Exceptional Readability: The display's reflective properties ensure effortless legibility of text and images in different lighting environments.
- Ultra-Low Power Usage: E-paper only consumes power during updates, leading to prolonged battery life and efficient energy use.
- Wide Viewing Angles: Greater than 170 degree, unaffected by light direction.
- Flexibility and Portability: Allowing bending and curling for versatile applications.
- Eye-Friendly and Heat-free: Eliminate glare, providing a comfortable viewing experience while remaining cool without generating heat
Description
This 5.83" Monochrome ePaper Display offers a 648x480 pixel active area. It has a high contrast, wide viewing angle, and ultra-low power consumption. With the COG package IC thickness of 280um, the display includes on-chip RAM and On-chip OTP waveform storage. It features bi-stability, commercial temperature range, and landscape/portrait mode. Plus, it has an integrated SP interface, oscillator, and voltage control for VCOM, Gate, and source driving voltage.
What is an E-Paper?
E-Paper, an electronic display tech, replicates the look of typical paper/ink. It boasts excellent contrast & readability even in direct sunlight, eliminating the need for a backlight. Images are formed by tiny microcapsules holding charged particles in liquid. An electric field makes the particles move up/down, showing varying shades/colors. It's frequently used in e-readers, labels, smartwatches, & other power-saving, legible devices.
Advantages Over Traditional Displays
E-Paper displays offer advantages over traditional displays, including better readability like paper, visibility in sunlight, low energy consumption, thin design, wide viewing angles, and longer battery life. They are ideal for portable devices and environments where glare and power efficiency matter.
Applications
- Reading equipment
- Mobile device
- Electronic tags and price tags
- Smart Wearables
- Electronic Shelf Labels
- Smart Card
Specification
Parameters | Details |
Model No. | GDEY0583T81 |
Type | Dot Matrix |
Size | 5.83 inch |
Active Area(mm) | 118.78 x 88.22 |
Resolution | 648 x 480 pixels |
Pixel Pitch(mm) | 0.1833 x 0.1833 |
Display Color | Black, White |
Grayscale | 4 |
Partial Refresh Time | 0.34s |
Full Refresh Time | 3.5s |
Interface | SPI |
Connector | 24 Pin PFC, 0.5mm Pitch |
Viewing Angle | >170° |
Operating Voltage | 3.3V |
Operating Temperature | 0-50°C |
Driver Mode | Support XIAO/STM32/Arduino/Micropthon |
Drawing | Support GUI Drawing |
Power Consumption | 33mW (typ.) |
Standby Consumption | 0.003mW |

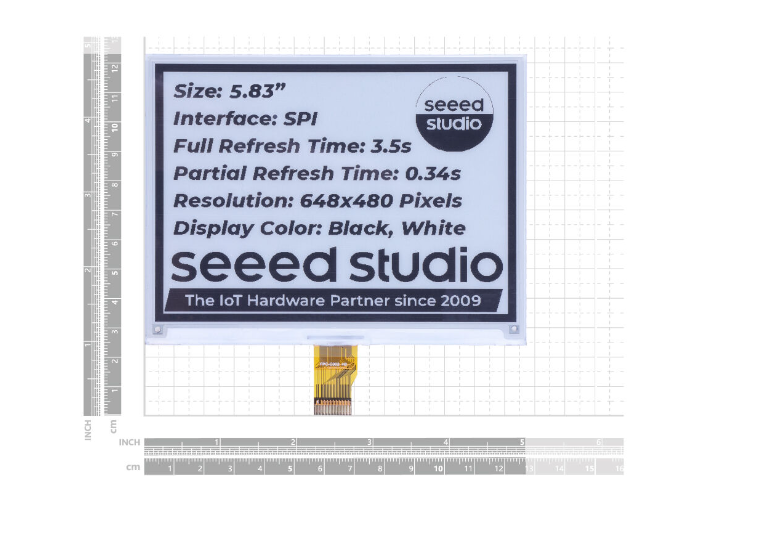

Outline Dimension(mm) | 125.4 x 99.5 x 1.2 |
Weight | 3.2g |
Hardware Overview
ECCN/HTS
| HSCODE | 8543709990 |
| USHSCODE | 8486400030 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
