Design for industrial use, A205-E Mini PC combines exceptional AI performance, and sufficient storage with a rich set of IOs— HDMI, USBs, RS485, RS232, CAN, I2Cs, and SPIs for AI-embedded industrial and functional safety applications in a power-efficient, small form factor. The passive thermal design that can meet industrial standards such as anti-vibration and anti-static supports operating range from -25°C to 60°C.
Features
Industrial fanless edge AI box: at a dimension of 205mm x 130mm x 65mm packs Jetson Xavier NX 8GB production module, rich-interfaces carrier board, 128GB NVME SSD, WIFI module, and enclosure case.
Advanced embedded AI system: 384 NVIDIA CUDA® Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines.
Rich set of I/Os and industrial communication: 2x Gigabit Ethernet, 2x HDMI, 1x Audio Jack, 4x USB 3,1xUSB 2, 1xRS232, 1xRS485, 1xCAN, 1x Type C, 1x microSD Card Slot, 2x I2C, 1xSPI, 2xLED state.
Pre-installed NVIDIA JetPack 5.0.2: support the entire Jetson software stack and various developer tools for building fast and robust AI application provided by Seeed Edge AI partners, helps develop innovative AI solution for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences, etc
Cetifications: FCC, CE, RoHS
Jetson Xavier NX delivers up to 21 TOPS, making it ideal for high-performance computing and AI in embedded and edge systems. Combined with over 59.7GB/s of memory bandwidth, video encoded and decoded, these features make Jetson Xavier NX the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.
Seeed is a reseller of NVIDIA embedded systems and a preferred partner of the NVIDIA Jetson ecosystem for edge AI. Explore more carrier boards, full system devices, customization services, use cases, and developer tools at Seeed Jetson Ecosystem!
Ready for development
A205-E Mini PC is pre-installed with Jetpack 5.0.2, ideal for developing AI systems deployed at smart factories, automated optical inspection, and other AIoT embedded systems with entire Jetson software stack and various developer tools for building fast and robust AI applications provided by Seeed Edge AI partners.
Edge Deployment made easy
A205-E built with Jetson Xavier NX module supports alwaysAI Accelerated Edge Deployment. You can train a brand new custom model just in hours, or you can even use choose one of 130+ pre-trained models from the always dashboard, deploy it to A205-E Mini PC, and build a computer vision application within minutes! alwaysAI removes barriers to machine learning expertise requirements and makes creating computer vision apps easy, fast and effective.
With the deployment engine, you can OTA containerization and device monitoring in production mode, Run the application in offline mode and Auto-start the application on boot.
With an extensive library of Python APIs, you can also customize any AI application, and also push real-time analytics to platforms such as Data Lakes and BI tools for further data visualization.
Perfect for intelligent video analytics and industrial automation use
With the help of the NVIDIA® TensorRT library and Deepstream framework, you can get the maximum of the NVIDIA® Jetson™ processors. With all the optimizations applied, it is not a surprise to achieve desktop GPU-level framerates with deep learning algorithms in embedded form factors. Following our tutorial, you can efficiently run a custom YOLOv5 object detection model with 60 FPS with an image size of 640x640 at INT8 quantization.
Applications Reference
Jetson software stack begins with NVIDIA JetPack™ SDK which provides a full development environment and includes CUDA-X accelerated libraries and other NVIDIA technologies to kickstart your development. JetPack includes the Jetson Linux Driver package which provides the Linux kernel, bootloader, NVIDIA drivers, flashing utilities, sample filesystem, and toolchains for the Jetson platform. It also includes security features, over-the-air update capabilities, and much more.
Powered by the Xavier NX module is ideal for building autonomous applications and complex AI tasks of image recognition, object detection, pose estimation, semantic segmentation, video processing, and many more. We have the following use case and application example compatible with Xavier NX to help you take reference.
Industry 4.0:
Retail:
sentiment analysis(webinar: learn your customer with AI by Zenus smart camera),
Robotics:
Agriculture: weeding machines, Tractors, Livestock detection
Healthcare: medical imaging analysis
Compare A205-E Industrial Mini PC and Jetson Xavier NX Dev Kit Specs
| A205-E Mini PC | NVIDIA Jetson Xavier NX Developer Kit | |
| Module | NVIDIA JETSON XAVIER NX | |
| AI Performance | 21 TOPs(INT8) | |
| CPU | 6-core 64-bit CPU, NVIDIA Carmel ARMv8.2 | |
| GPU | 384-core NVIDIA Volta GPU | |
| Memory | 8 GB 128-bit LPDDR4x 59.7GB/s | |
| Storage | 128GB M.2 NVME SSD, MicroSD card slot | MicroSD (Card not included) |
| Display | 2*HDMI Type A | 1*HDMI Type A; 1*DP |
| Video decoder | 2x 4K @ 60 | 4x 4K @ 30 | 12x 1080p @ 60 | 32x 1080p @ 30 (H.265) 2x 4K @ 30 | 6x 1080p @ 60 | 16x 1080p @ 30 (H.264) | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
| Gigabit Ethernet | 2*RJ45 Gigabit Ethernet Connector (10/100/1000) | 1*RJ45 Gigabit Ethernet Connector (10/100/1000) |
| OS | JetPack 5.0.2 | without OS installed |
| Wifi/BLE | Pre-installed M.2 E Wifi & BLE module | |
| USB | 4x USB 3.0 Type A; 1x USB 2.0 Type C ; | 4 * USB 3.1 Type A Connector; 1 * Micro-USB port for Device mode; |
| Industrial Interfaces | 1 x RS485 ;1 x RS232 | - |
| Camera | 1x CSI | 2xCSI |
| SPI BUS | 1X SPI Bus(+3.3V Level) | |
| RTC | 1*RTC Socket | - |
| FAN | 1* FAN(5V PWM) | |
| Multifunctional port | 1* 40-Pin header | |
| CAN | 1x CAN | |
| Others | 2x LED STATE 2x I2C Link(+3.3V I/O) | I2C, I2S, UART |
| Power | 9V to 19V DC Input @ 8A | DC Jack 19V 4.74A (MAX 90W) |
| Mechanical | 209mm x 130mm x 66 mm | 130mm x120mm x 50mm |

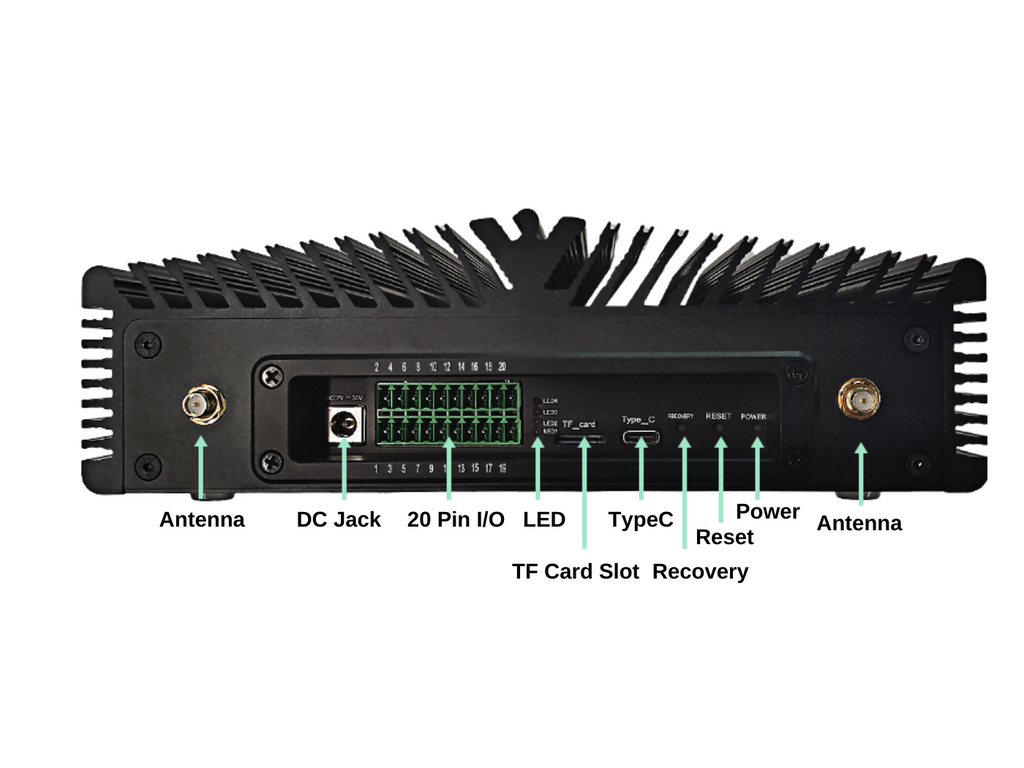

Hardware overview
ECCN/HTS
| HSCODE | 8471419000 |
| USHSCODE | 8471490000 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
