Note
The carrier board is specially designed for working with Jetson Nano/Xavier NX/TX2 NX module and we will not include these modules inside.
When using Jetson Nano, the wifi module cannot work with SSD together.
The 3V RTC battery will not include.
Features
- USB 2.0: Micro B Connector
USB 3.1: Type A Stacked Connectors
RTC back-up coin-cell retainer
M.2 Key E Socket & M.2 Key M Socket
HDMI / DP: HDMI Type A and DisplayPort Stacked Connector
Gigabit Ethernet: RJ45 Connector
Description

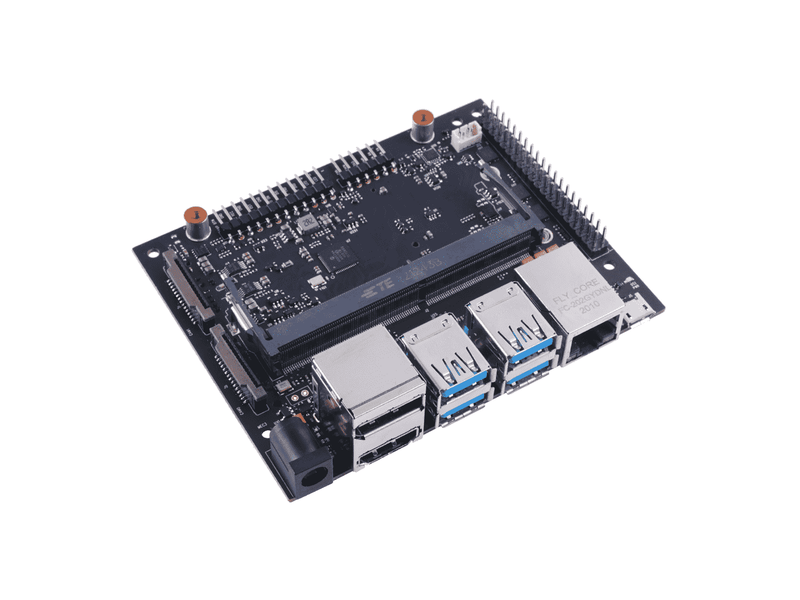

A206 is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX/ TX2 NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, M.2 key E wifi / BT, M.2 key M, CSI camera, RS232, CAN, PIO, I2C, I2S fans and other rich peripheral interfaces. It has the same functional design and size with the carrier board of NVIDIA® Jetson Xavier™ NX DEVELOPER KIT.
Basically, it can works with an NVIDIA Jetson module mentioned above to achieve graphic AI applications. To be more specific, with the NVIDIA Jetson Nan/Xavier NX/TX2 NX module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for complicate AI graphical application such as Automated Optical Inspection, In Video Action, Robot control, Drone, etc. Overall, A206 is ideal for software development within the Linux environment. Standard connectors are used to access Jetson Xavier NX features and interfaces, enabling a highly flexible and extensible development platform.
Application
- Industrial Automation
- Robotics
- Healthcare
- Computer Vision
- Education
Specifications
Connector | Description |
HDMI Port | 2*HDMI Right Angle Vertical Connector |
USB 3.0 Type A | 4*USB 3.0 Type A Connector |
NVIDIA Gigabit Ethernet | 1*RJ45 Gigabit Ethernet Connector (10/100/1000) |
DC Power | 1*DC Input Power TE Connector |
FAN Connect | 1*Picoblade Header |
M.2 KEY E | 1*M.2 Key E Connectivity Slot (75-pin) |
CSI Camera Connect | 2*CSI Camera (15 pos, 1mm pitch) |
Multifunctional port | 2.0 Pitch 40 PIN |
3V Lithium Battery | 1*3V backup battery |
M.2 KEY M | 1*M.2 Key M Slot (75-pin) |
NVIDIA Jetson Nano/NX/TX2 NX connector | 1*Jetson SODIMM connector, 260-pin |
CAN | 1*CAN Bus Header (1x4, 2.54mm pitch, RA) |
Button Header | 1*Button Header (1x12, 2.54mm pitch, RA) |
USB Micro Type B | 1*USB Micro B, RA Female |
RTC | 1*RTC Back-up Coin Cell Socket (CR1225) |
Comparison Chart
Feature | A206 carrier board | ||
Module Compatibility | NVIDIA® Jetson™ Nano/NX/TX2 NX | NVIDIA® Jetson™ Nano/NX/TX2 NX | NVIDIA® Jetson™ Nano/NX/TX2 NX |
PCB Size / Overall Size | 87mm*52mm | 170mm*100mm | 100mm*80mm |
Display | 1*HDMI | 2*HDMI | 2*HDMI |
CSI Camera | 1*CSI | 6*CSI | 2*CSI |
Ethernet | 1x Gigabit Ethernet (10/100/1000M) | 2x Gigabit Ethernet (10/100/1000M) | 1x Gigabit Ethernet (10/100/1000M) |
USB |
| 4* USB 3.0 Type A (Integrated USB 2.0); | 4* USB 3.0 Type A (Integrated USB 2.0); |
SATA | \ | 5 SATA | \ |
M.2 Key M | 1*M.2 Key M | \ | 1*M.2 Key M |
M.2 Key E | 1*M.2 Key E | 1*M.2 Key E | 1*M.2 Key E |
TF_Card | 1* TF_Card | 1* TF_Card | \ |
USB WIFI Mode | \ | 1* Standard USB WIFI Mode(4 pin interface) | \ |
Audio | \ | 1* Audio Jack; | \ |
SPI Bus | 1* SPI Bus(+3.3V Level) | 1* SPI Bus(+3.3V Level) | 1* SPI Bus(+3.3V Level) |
FAN | 1* FAN(5V PWM) | 2* Fan(12V/5V); | 1* FAN(5V PWM) |
CAN | 1* CAN | 1* CAN | 1* CAN |
Multifunctional port | 1* 40-Pin | 1* 40-Pin | 1* 40-Pin |
RTC | Battery included | Battery not included | Battery not included |
Power Requirements | DC 15V/3A | DC 19V/4.74A (90W MAX) | DC 15V/3A |
Operating Temperature | -25° to +80° | -25° to +80° | -25° to +80° |
Hardware Overview
Part List
1 x A206 Carrier Board
1 x Power Adapter 15V/3A
ECCN/HTS
| HSCODE | 8543909000 |
| UPC |
