Features
- High-performance NVIDIA Jetson Carrier Board: Support NVIDIA Jetson Orin™ NX/Nano modules
- High-speed and Scalable Network: Equip 2 GbE ports for fast speed network, and pre-installed SMD WiFi/BlueTooth for wireless connection
- Versatile Connectivity: Offer 4x USB 3.0 Type A, 1x USB 2.0 / 3.0 Type C, 1x USB 3.0 0.5mm pitch 20P ZIF for data transfer,1*20 pin IO connector(1*CAN,1*RS232, 1*RS485, 2*I2C, 2*UART, 2*GPIO, 2*SPI)
- Advanced Peripherals Supported: Assemble 120P camera connector, 1x HDMI display, 1x fan, 1x RTC, 1x M.2 Key M, for storage expanded and multiple expansion
- Wide Range of Input Voltages: From 12(7A) to 36V(3A) DC providing flexibility in power supply options
Description

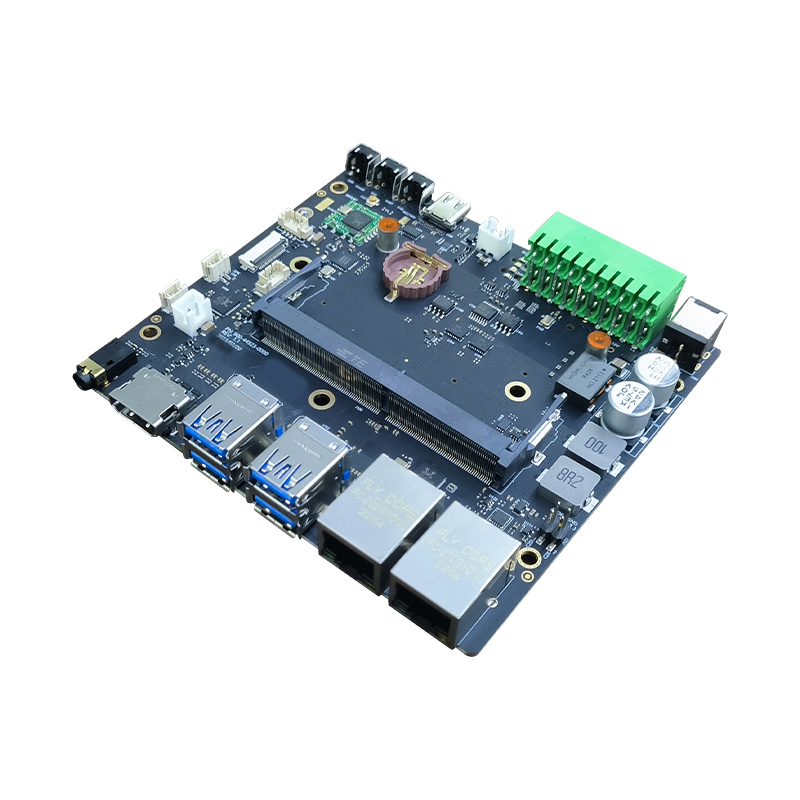

The A607 Jetson Carrier Board is an extension board for NVIDIA Jetson Orin™ NX/Nano modules, and it features high-speed networking and wireless connection with two GbE network ports and a pre-installed SMD WiFi/BlueTooth module.
It also comes with CAN, I2C Link, four USB 3.0 Type-A ports, one USB 2.0 / USB 3.0 Type-C, and one USB 3.0 0.5mm pitch 20P ZIF for versatile connectivity options. This extension board can enable users to capture and display video content with the 120-pin expansion camera connector and the HDMI port.
You can expand storage with the onboard M.2 KEY M interface. There also includes a FAN connector (5V PWM) for cooling purposes and one RTC socket for reliable timekeeping.
The board supports a wide input range of 12-36V DC, making it flexible to integrate into a variety of computing tasks. It maintains operation in the temperature range from -25°C to 75°C.
Application
- Home robots
- UAVs
- Unmanned boats
- Robotics and drones
- Industrial automation and control systems
- Digital signage and media players
- IoT (Internet of Things) and embedded systems
- Robotics and drones
- Education and prototyping projects
Specification
Product Name | A607 |
Module | Orin™ NX/Nano |
Networking | 2x Gigabit Ethernet (10/100/1000) |
USB | 4x USB 3.0 Type A (Integrated USB 2.0) 1x USB 2.0 / 3.0 Type C 1x USB 3.0 ZIF 20P 0.5mm pitch |
Camera | 1x 120-pin camera expansion connector |
Display | 1 x HDMI |
Fan | 1x FAN connector（5V PWM） |
M.2 KEY M | 1x M.2 KEY M Interface |
IO | 1*20 pin IO connector(1*CAN,1*RS232, 1*RS485, 2*I2C, 2*UART, 2*GPIO, 2*SPI) 1*I2C Connector |
RTC | 1* RTC socket(support rechargeable battery) |
WiFi | pre-installed SMD WiFi/BlueTooth module |
Audio | 1* speaker Connector，1* audio Jack |
Output Power | 5V DC, 12V DC,12 V to power additional equipment |
Power Supply | Wide input 12(7A)- 36V(3A) DC |
Power Adapter | DC Jack 19V 4.74A(Barrel Jack 5.5/2.5mm) |
Mechanical | 115 x 105（mm） |
Operating Temperature | -25℃-75℃ |

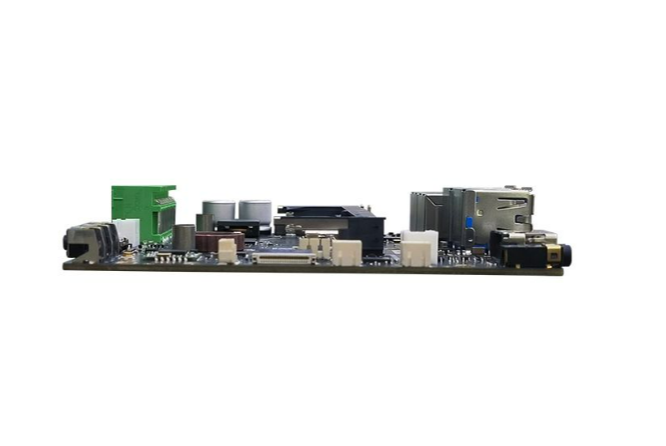

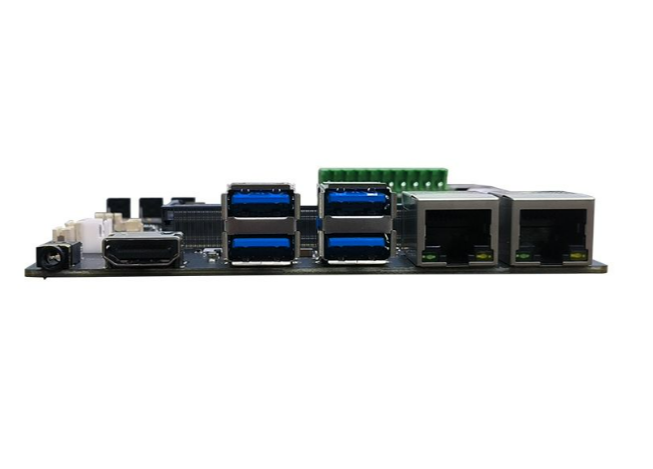

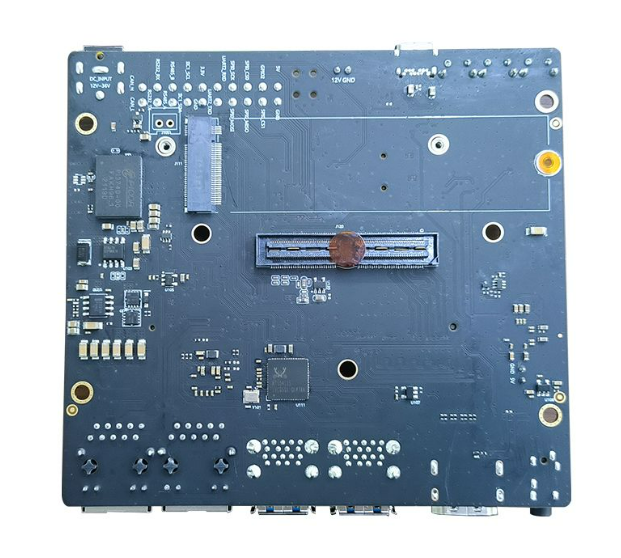

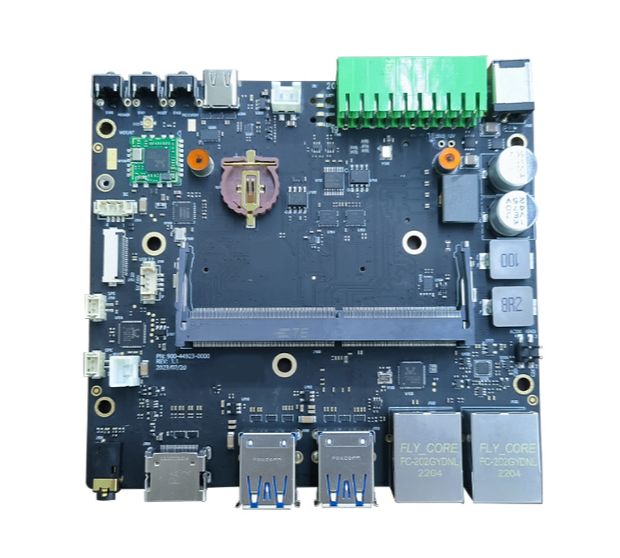

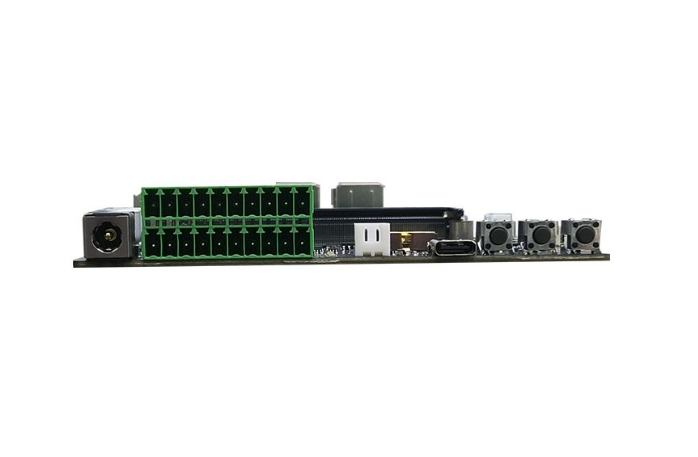

Hardware Overview
Note: 5V DC, and 12V DC Can be used to power additional equipment
Part List
A607 Carrier Board for Jetson Orin™ NX/Nano | x1 |
19V/4.74A(Barrel Jack 5.5/2.5mm) Power Adapter (Power cord not included) | x1 |
ECCN/HTS
| HSCODE | 8543909000 |
| USHSCODE | 8471490000 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
| CE | 1 |
| EU DoC | 1 |
| RoHS | 1 |
