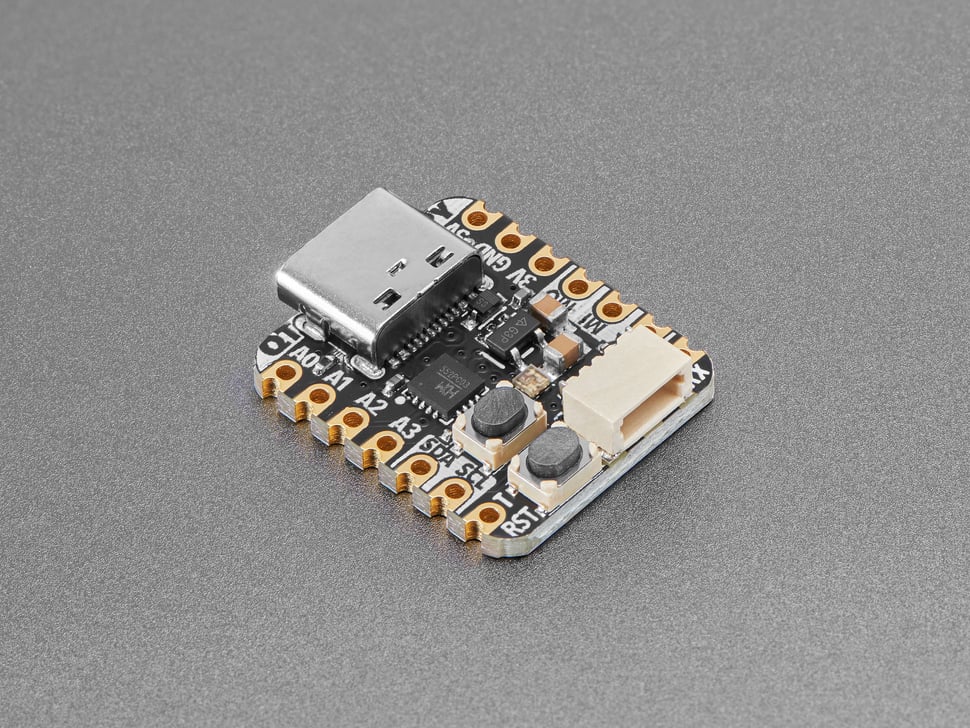

The compact Adafruit CH552 QT Py features a nostalgic 8-bit 8051 processor, providing a unique contrast to the powerful ESP32-S3 with dual 240MHz 32-bit cores. Despite its small size, the CH552 is highly sought after and pairs well with the petite board.
The CH552 is a powerful microcontroller with an enhanced E8051 core, offering 8-15 times faster instruction execution speed compared to the traditional MCS51 instruction set. It features a 16MHz clock speed and 3.3V logic, along with a built-in 16K program FLASH memory, 256-byte internal RAM, and 1K-byte internal xRAM with DMA support. Additionally, it includes 4 ADC channels, capacitive touch support, 3 timers/PWM channels, hardware UART, SPI, and a full-speed USB device controller. This allows it to function as a native USB device, such as a CDC serial or a mouse/keyboard HID.

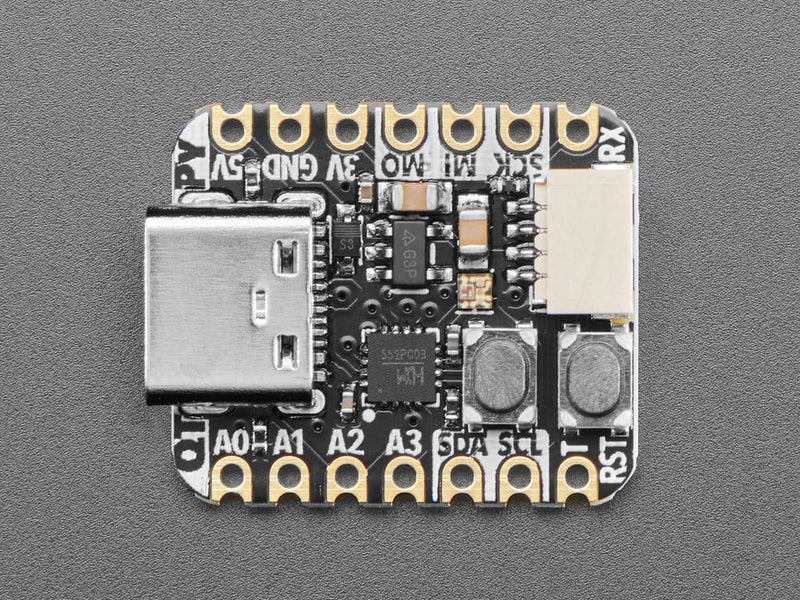

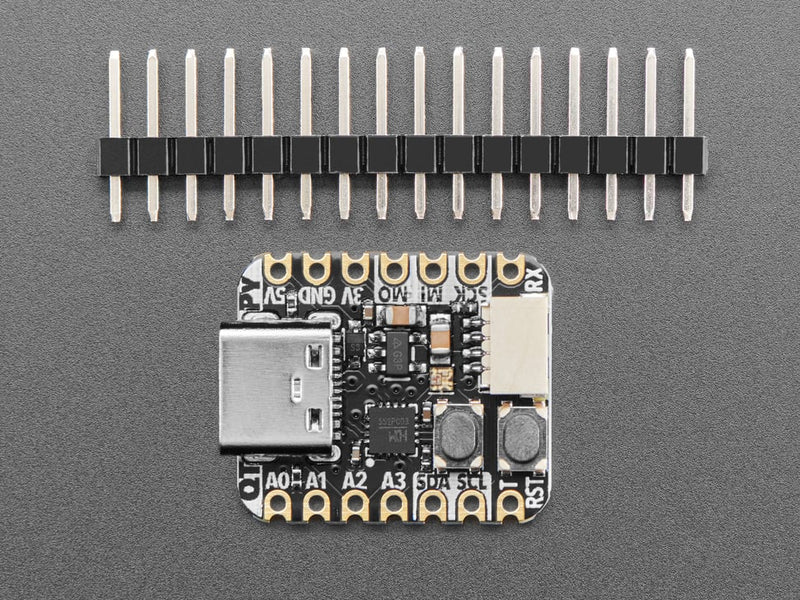

Explore the possibilities of this chip in the convenient QT Py format. The pinout and shape are compatible with Seeed Xiao and feature castellated pads for easy soldering onto a PCB. Connect effortlessly with our preferred STEMMA QT connector, providing an expandable I2C port for use with STEMMA QT accessories and sensors. Additionally, enjoy the added benefits of an RGB NeoPixel and reset/enter buttons.
Please note! This is a minimal 8-bit microcontroller, and it definitely does not run CircuitPython or Micropython. It also doesn't really run Arduino. There's an Arduino 'board support package' we recommend, but the compiler is for C not C++, which means you cannot use any Arduino libraries. It's very very bare-bones and for hacking/experimenting with this '40 cent chip'
- Same size, form-factor, and pin-out as Seeed Xiao
- USB Type C connector - If you have only Micro B cables, this adapter will come in handy!
- CH552 8-bit 8051 microcontroller core with 3.3V power/logic. Internal 16 MHz oscillator.
- Native USB

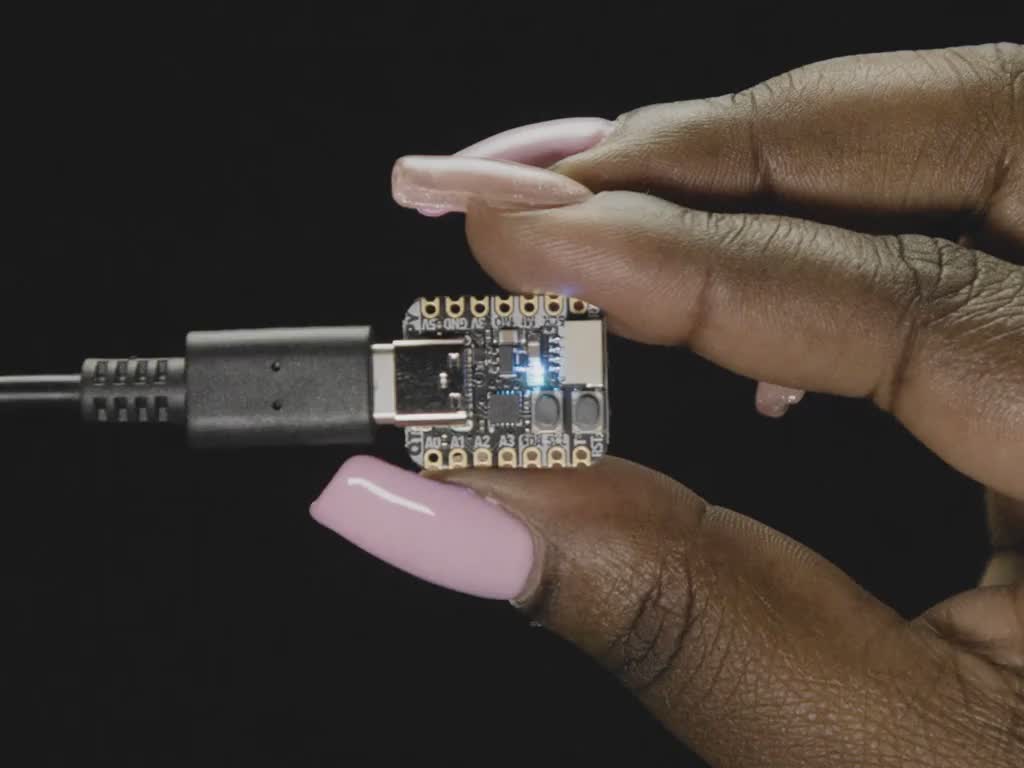

- Built in RGB NeoPixel LED
- 10 GPIO pins:
- A2 pin is the same as MOSI pin (it's the hardware SPI port and one of only 4 ADC pns)https://github.com/DeqingSun/ch55xduino4 x 8-bit analog inputs on A0, A1, A2, and A3
- 3 x PWM outputs

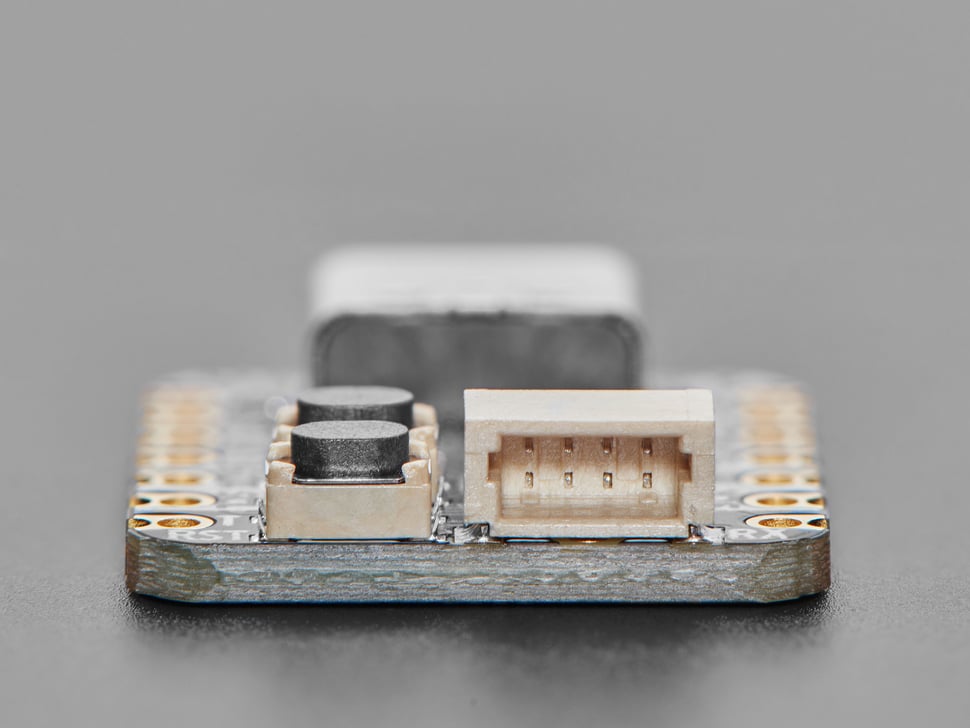

- I2C port with STEMMA QT plug-n-play connector
- Hardware UART
- Hardware SPI
- 4 x Capacitive Touch with no additional components required, on A0-A3 pins
- 3.3V regulator with 600mA peak output
- Reset switch and bootloader for starting your project code over or entering USB ROM bootloader mode

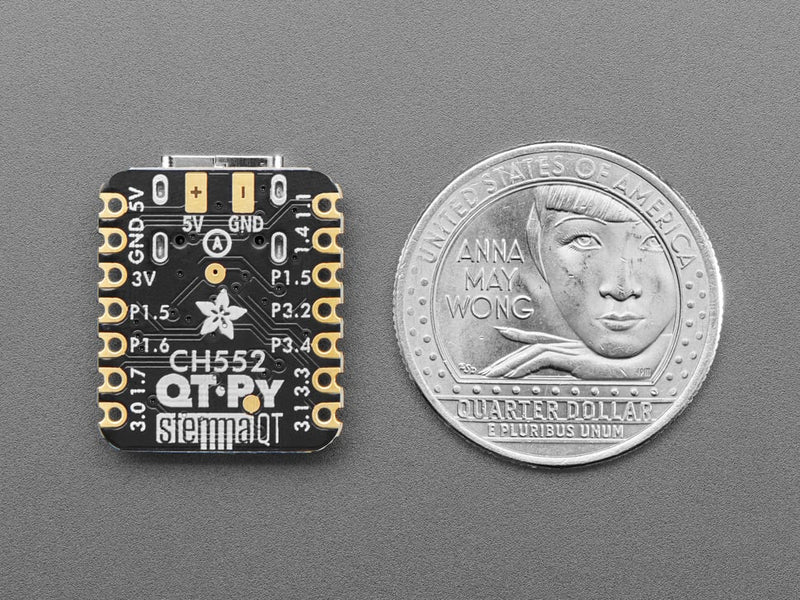

- Really really small
Technical Details
