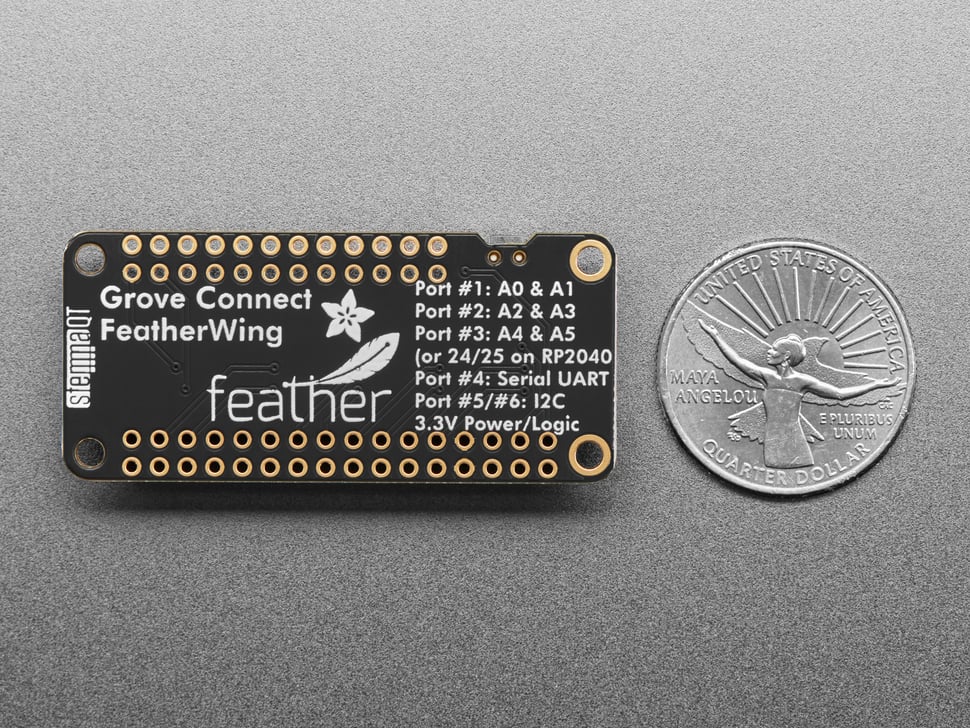

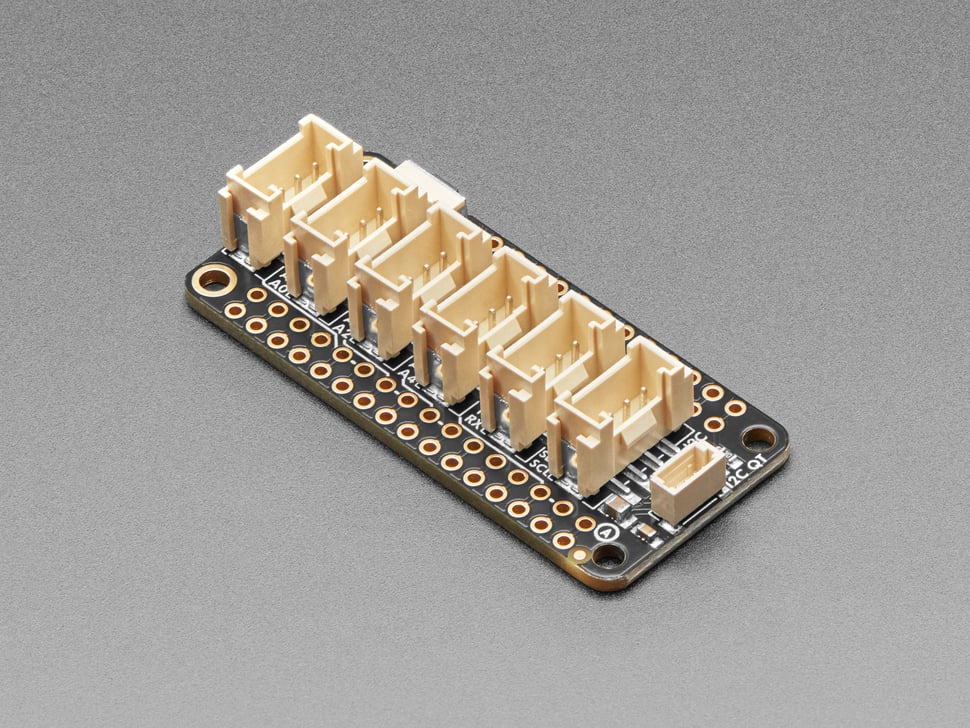

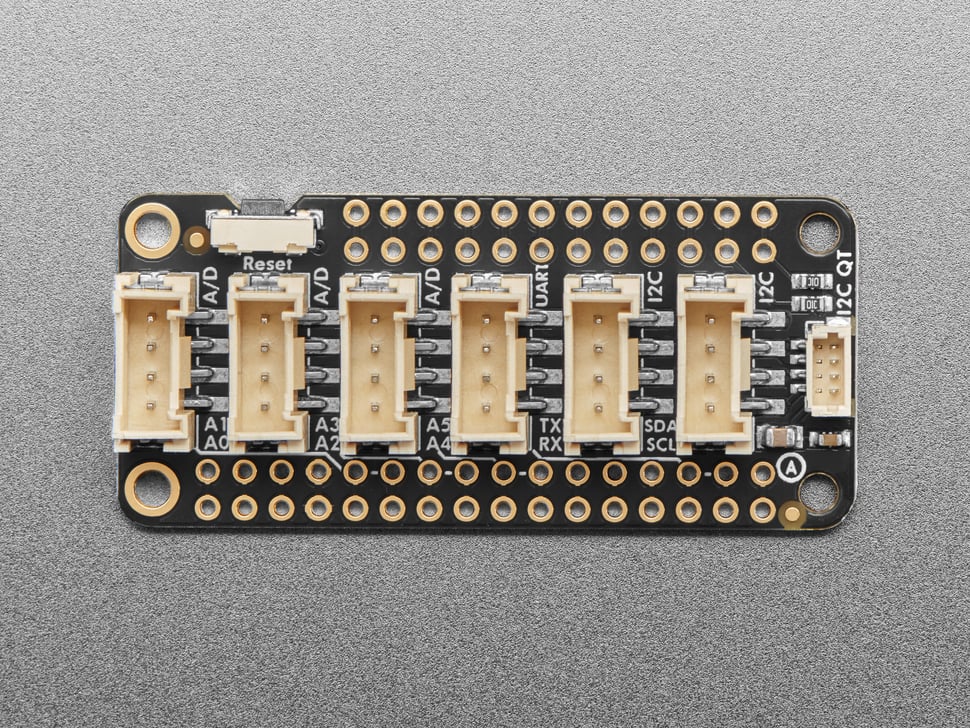

The Adafruit Grove and Stemma QT FeatherWing for all Feathers enables users to easily connect numerous Grove devices to Feather boards. With a compact design that sits on top, it features 3x Analog/Digital connectors, 1x UART connector, and 2x I2C connectors. Although not extensive, these connectors are sufficient to start multiple small projects. Additionally, a vertical Stemma QT port is included for another I2C connection.
The Adafruit Grove and Stemma QT FeatherWing for all Feathers utilizes a plug-and-play system from Seeed, featuring a 4-pin 2mm pitch connector that is not JST PH. It's important to note that this connector can be used for various functions such as analog, digital, I2C, PWM, or UART, including power, ground, and two signals. Before connecting a Grove sensor, always verify that it is compatible with the designated port: UART Groves should only be inserted into the UART port, while I2C Groves are only compatible with I2C ports. It's also worth noting that not all Feather boards have 6 analog inputs; for example, the RP2040 Feathers only have 4. Additionally, certain boards may have available hardware UART for peripherals, like the ESP8266, so keep these capabilities in mind.

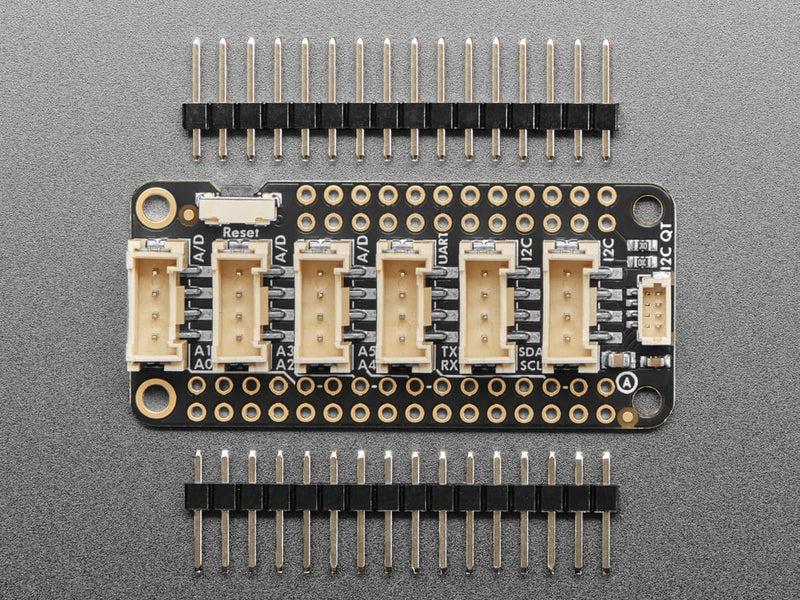

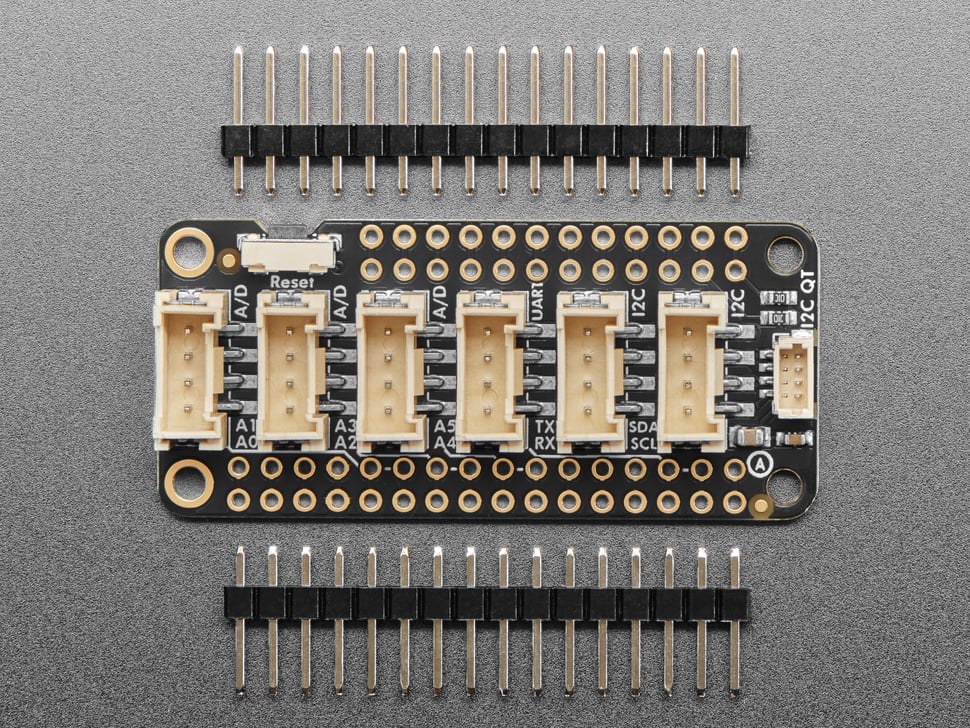

The FeatherWing comes pre-assembled with two pieces of 16-pin header. A small amount of soldering is necessary to attach the header for easy use with your Feather or doubler.
Technical Details
Product Dimensions: 50.7mm x 23.0mm x 9.9mm / 2.0" x 0.9" x 0.4"
Product Weight: 6.4g / 0.2oz
