Modern projects often require multiple power sources, like batteries, wall plugs, and USB, with the capability of hot-swapping. To successfully manage these inputs while avoiding reverse-powering, one must keep the design small, economical, low-power, and address high-voltage issues..
The Adafruit LM66200 Ideal Dual Diode Breakout offers an effective solution for dual power systems, with back-voltage protection, two 'ideal' diodes at 40 milliohms RdsOn, 2.5A continuous current support, and a separate enable input and status output.
This LM66200 breakout board provides an easy-to-use solution and eliminates the need for complex DIY circuitry with multiple transistors. 2~5V power supplies can be connected to Vin1 and Vin2, with the higher source being outputted at Vout. The output can be completely disabled by raising the On/Enable pin. The Status pin can also be used to determine which of the two supplies is chosen.

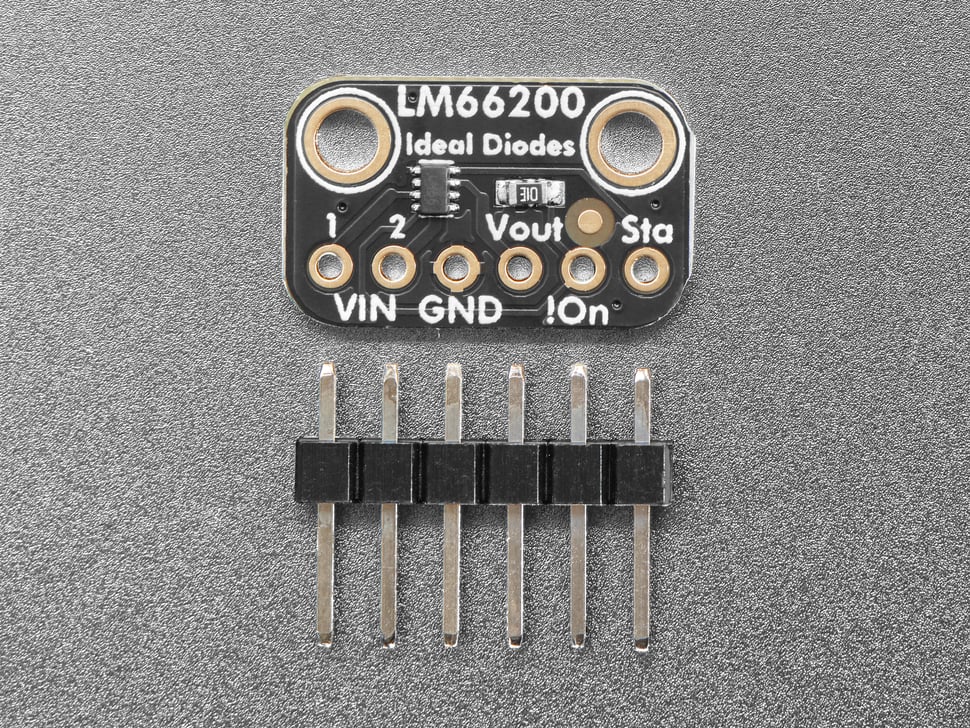

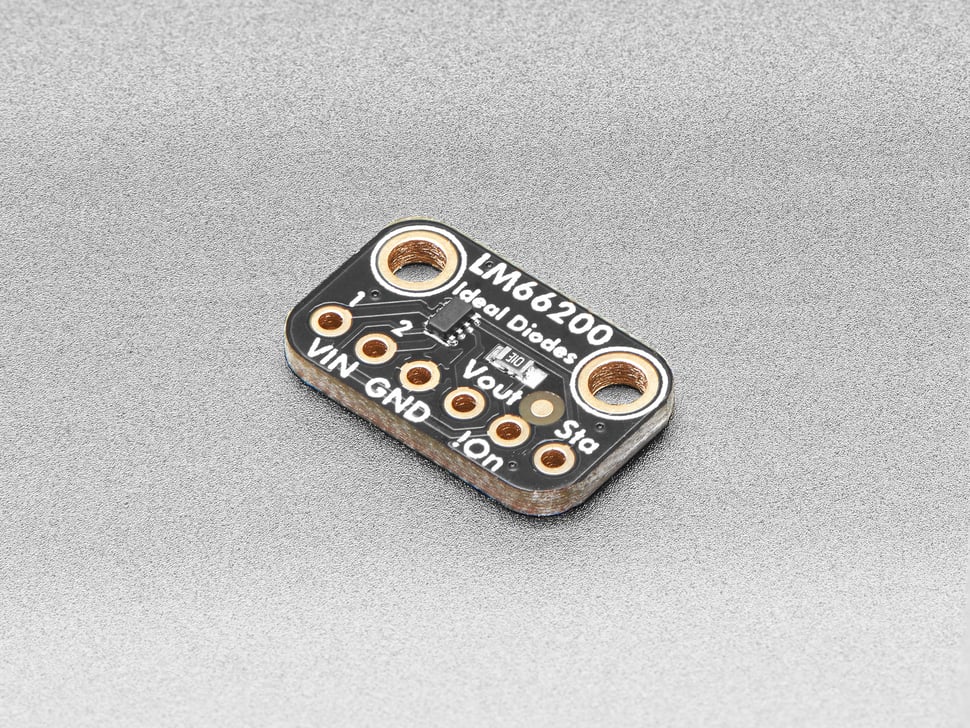

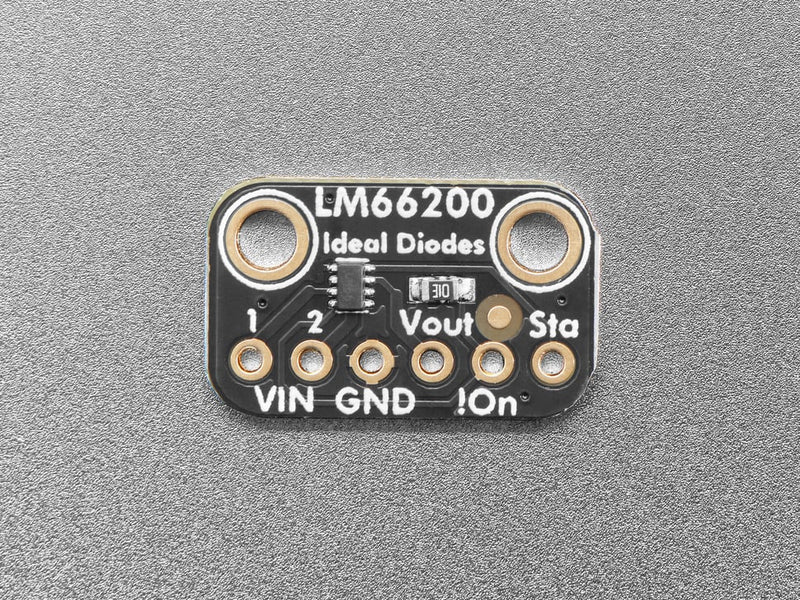

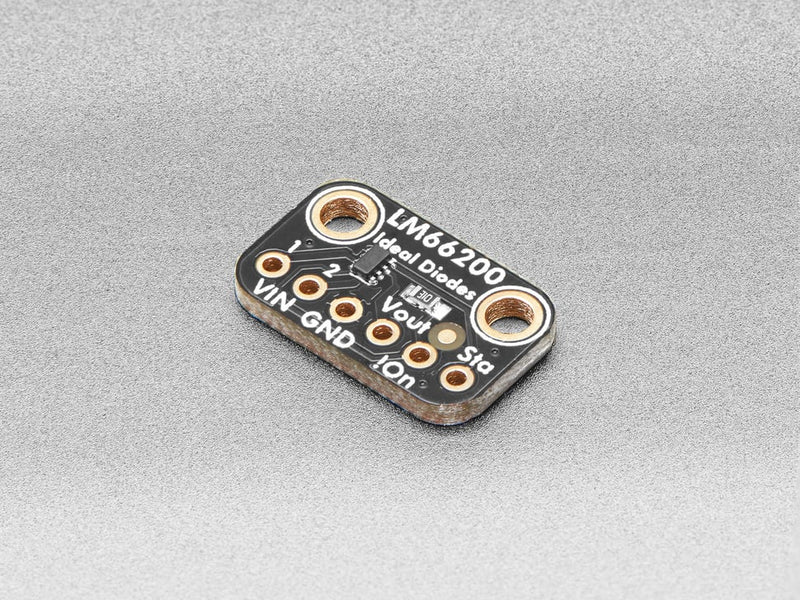

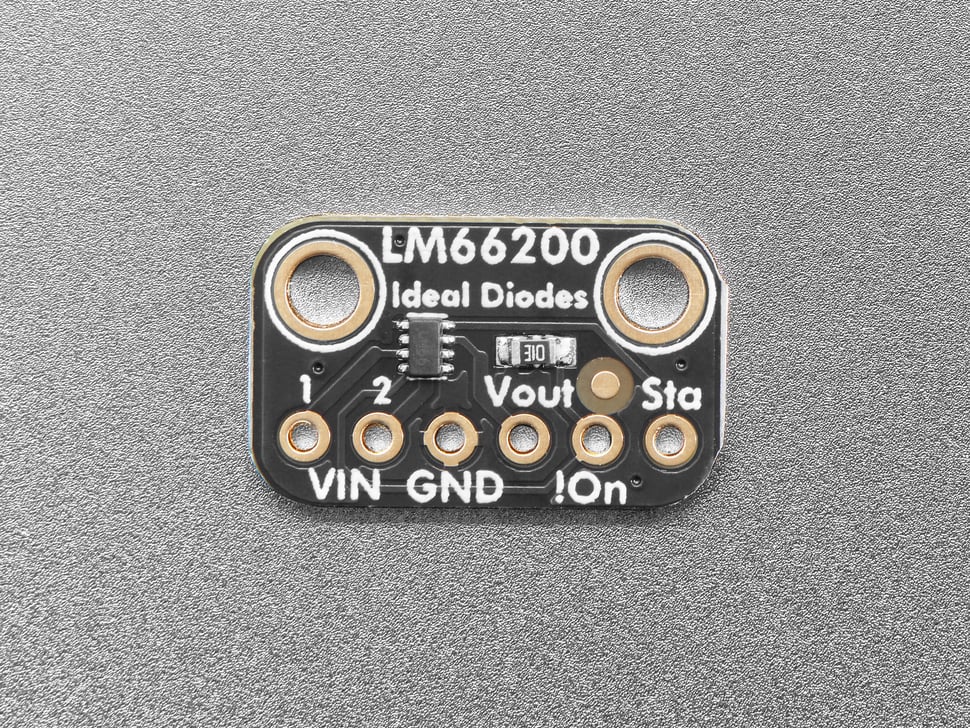

To make it bread-board friendly, we've placed it on a small PCB with 6 x 0.1" breakout pads. The chip and a 1 Megaohm enable-pulldown is soldered on top. We include a bit of header, some light soldering is required to attach the header - or use free wiring if you want to insert it directly into a circuit.
Technical Details
- LM66200 Product information page
- Input voltage range: 1.6 V to 5.5 V
- Maximum continuous current: 2.5 A
- On-resistance: 40 mΩ (typical)
- Standby current: 50 nA (typical)
- Quiescent current: 1.32 μA (typical)
- Automatic diode switchover
- Controlled output slew rate: 1.3 ms (typical) at 3.3 V
- Reverse current blocking when VOUT > VINx
- Thermal shutdown

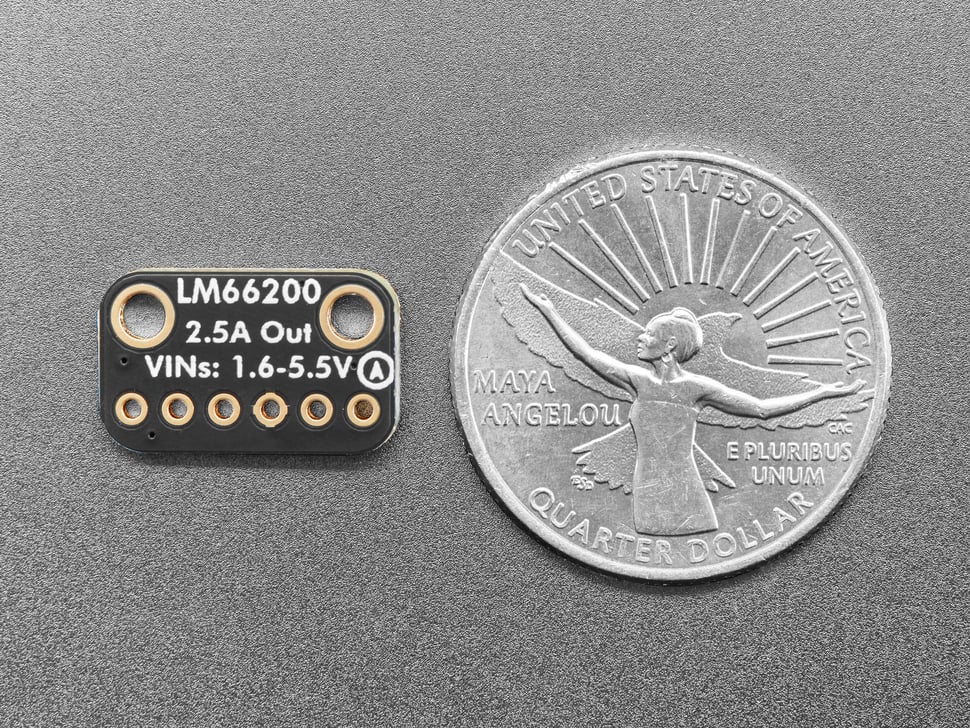

Product Dimensions: 16.5mm x 10.0mm x 2.2mm / 0.6" x 0.4" x 0.1"
Product Weight: 0.5g / 0.0oz
