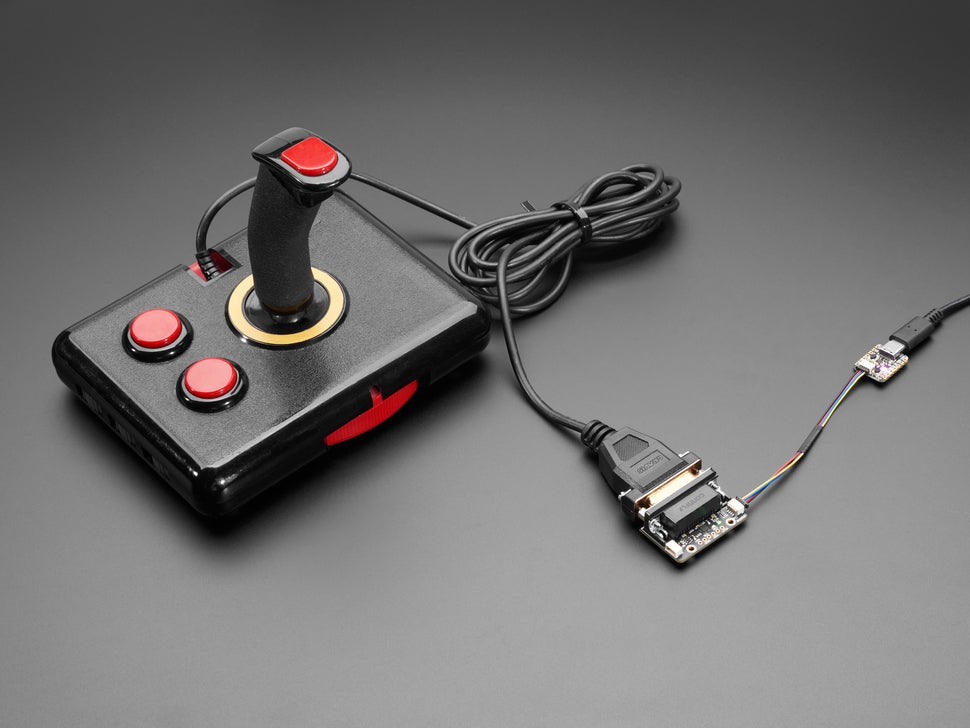

In the past, bulky PC joysticks were attached to computers via DE-15 ports connected to the Game Port of a sound effect card. Now, however, a range of USB ports is prevalent and audio support is integrated into most computers. Yet if you wish to experience the classic game days again, Adafruit PC Joystick to Seesaw I2C Adapter - STEMMA QT / Qwiic is the perfect solution.

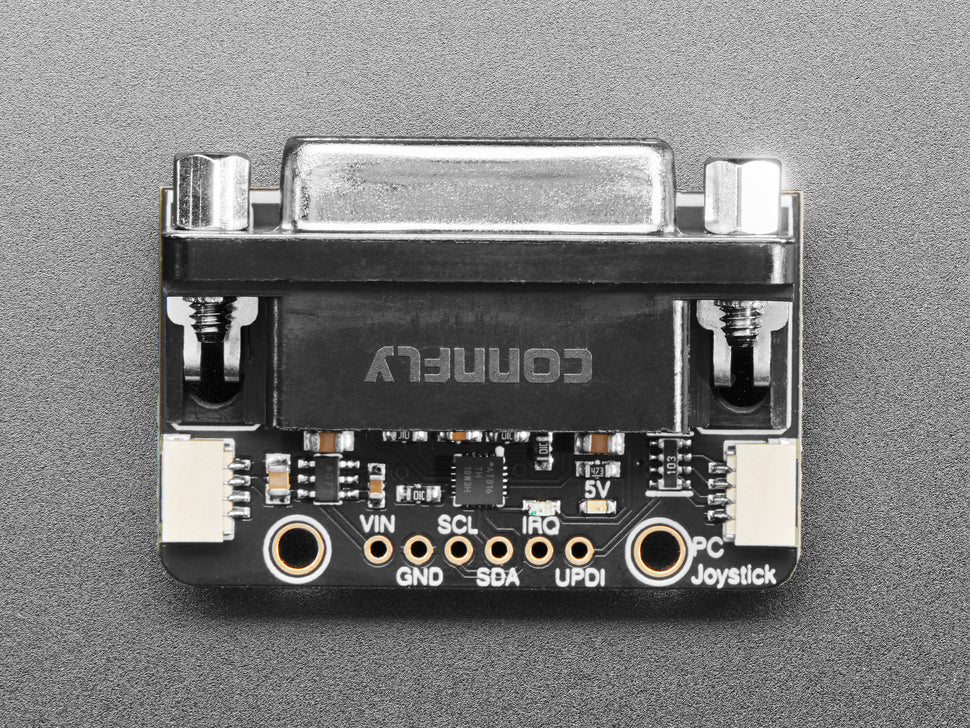

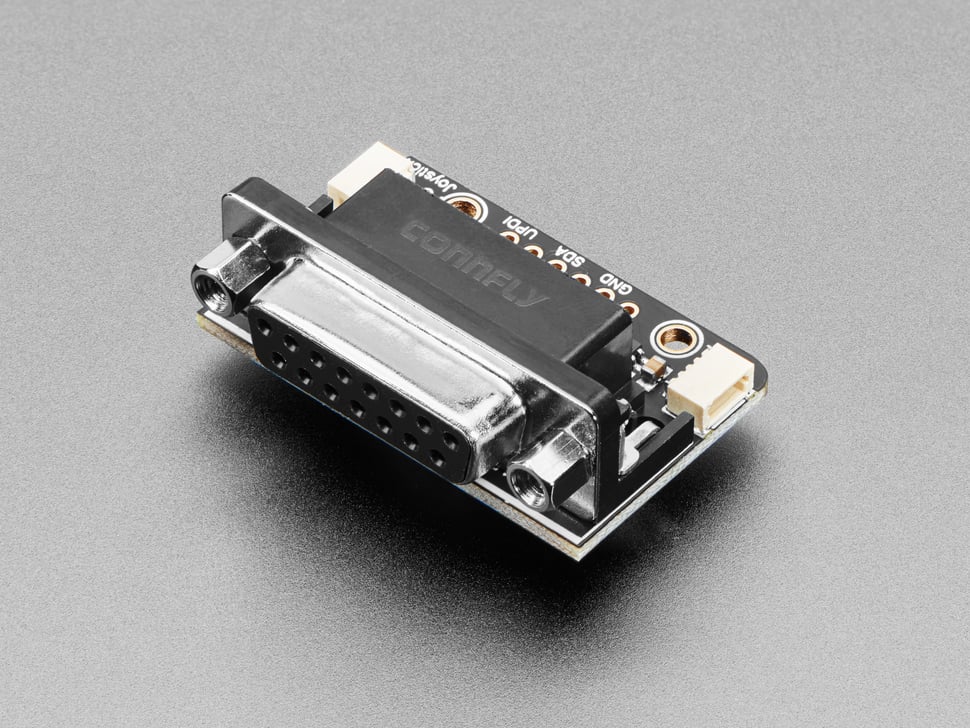

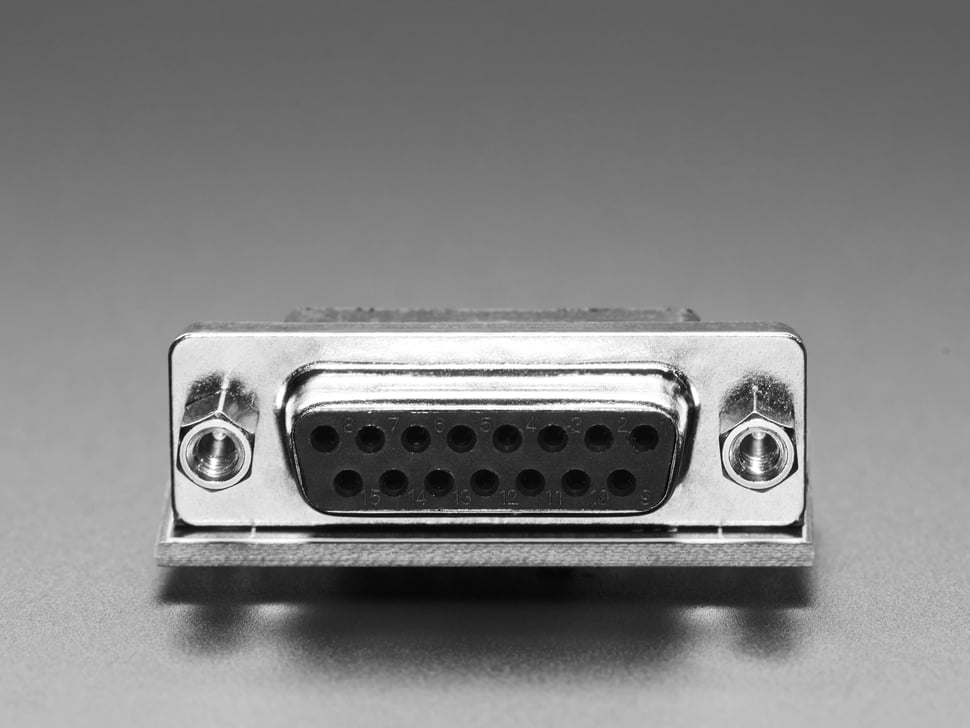

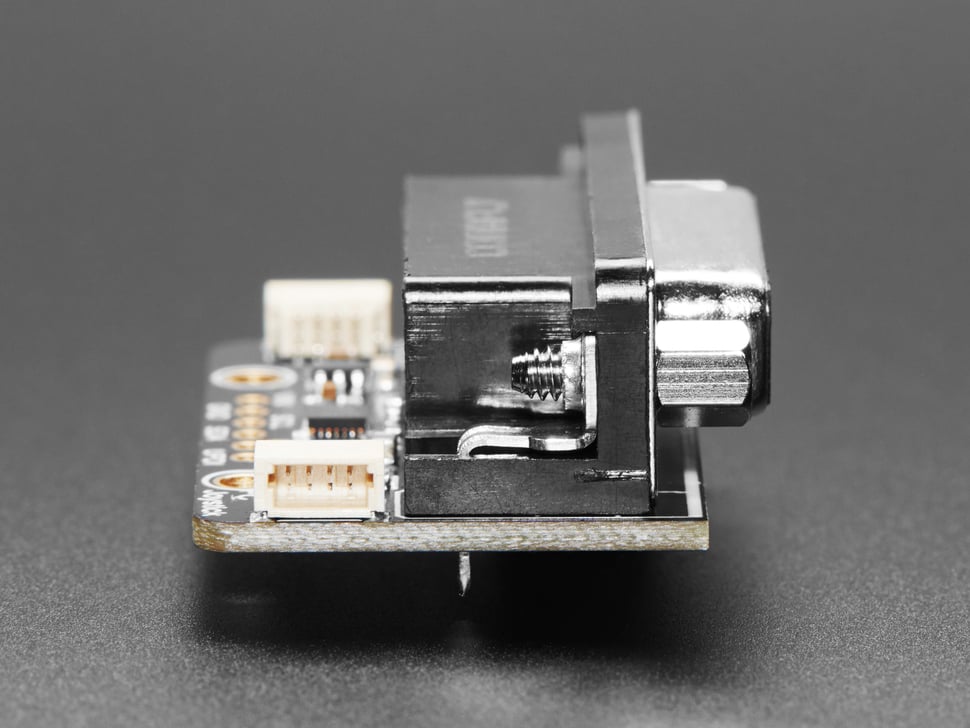

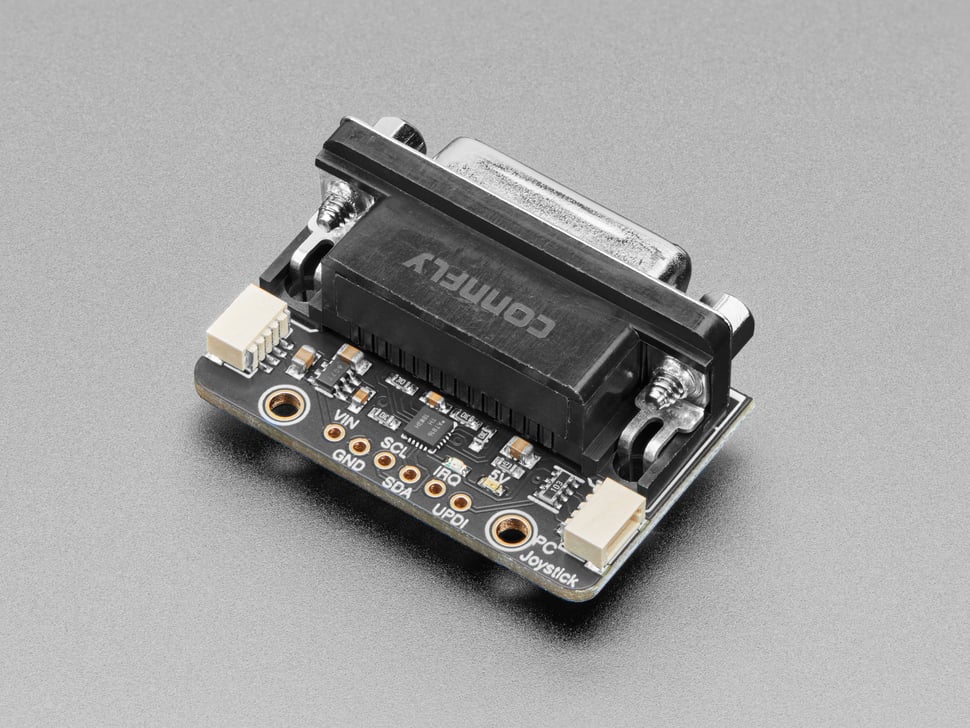

This board has a 15 pin D-Sub socket port, that you can plug any classic PC joystick into. Onboard is a ATtiny816 helper chip that acts as a I2C peripheral using our 'seesaw' library. Two STEMMA QT ports mean you can plug this board in using a 4-pin JST SH cable to any microcontroller or microcomputer with I2C support and read the joystick X & Y plus the two buttons, even if your main chip doesn't have analog inputs. There's even a 5V power generator on-board since joysticks are expecting that voltage.
Great for converting old controllers without needing to cut any cables. We have example code for Arduino and CircuitPython / Python to make your next pew pew project a breeze.

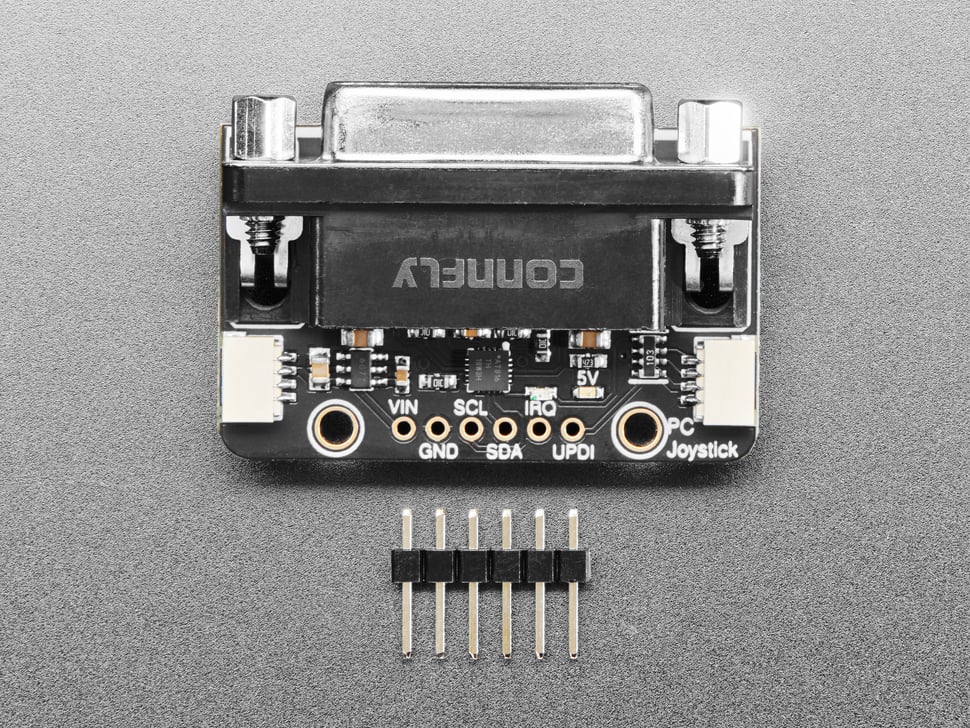

Ships fully assembled and tested. If you prefer working on a breadboard, each order comes with a small piece of header. You'll need to solder the header onto the PCB, but it's fairly easy and takes only a few minutes even for a beginner.
Technical Details
Product Dimensions: 40.7mm x 29.0mm x 17.0mm / 1.6" x 1.1" x 0.7"
Product Weight: 14.1g / 0.5oz
