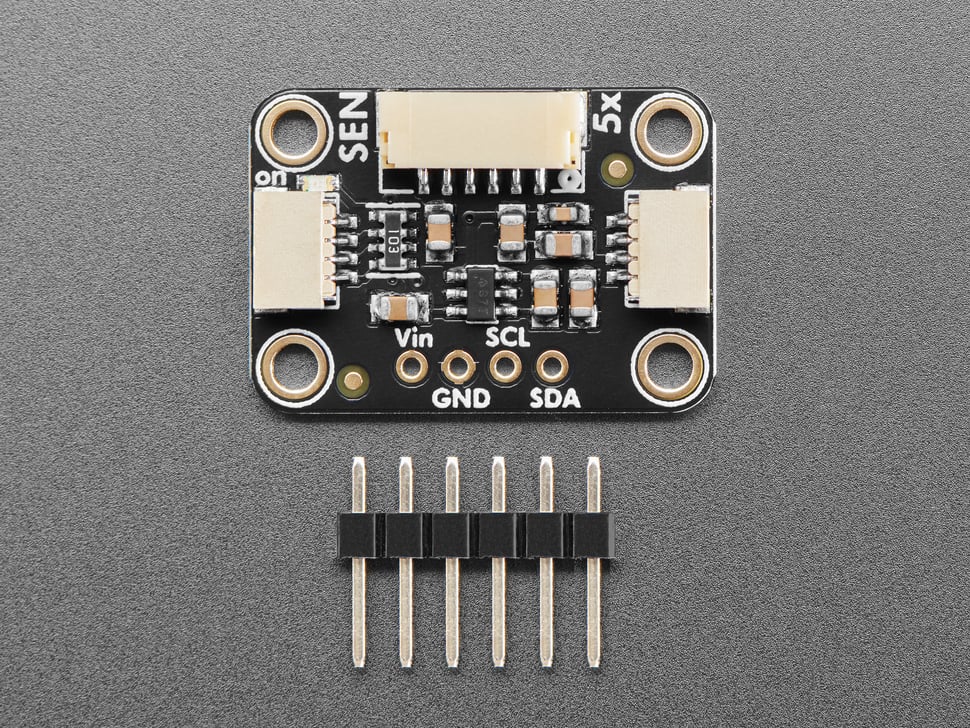

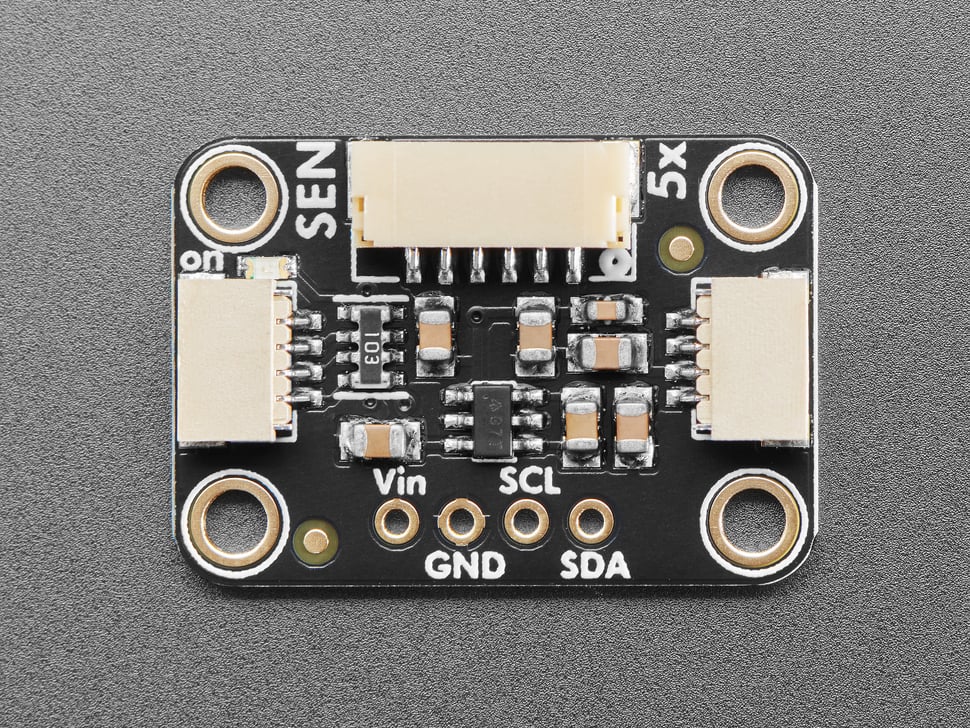

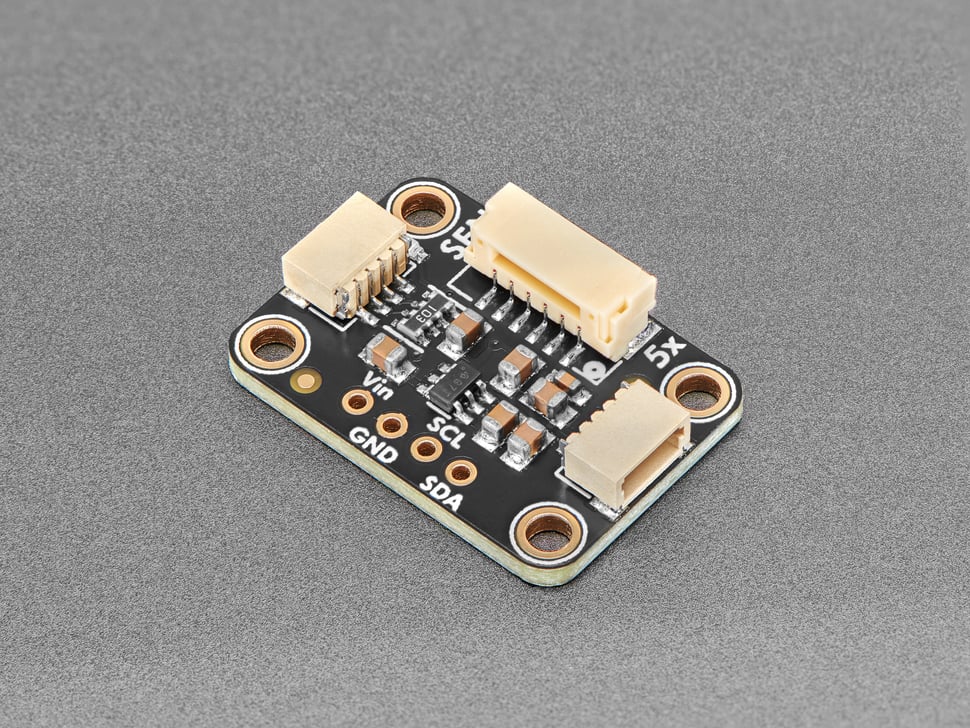

Effortlessly incorporate the Sensirion SEN54 / SEN55 environmental sensor node into your microcontroller or microcomputer project using the Adafruit SEN54 or SEN55 Adapter Breakout, with no need for soldering or cumbersome breadboarding. We previously featured the remarkable Sensirion SEN54 / SEN55 environmental sensor nodes on EYE ON NPI, as it serves as an all-in-one air quality sensor. However, this sensor requires specialized cable connection and a 5V power supply.

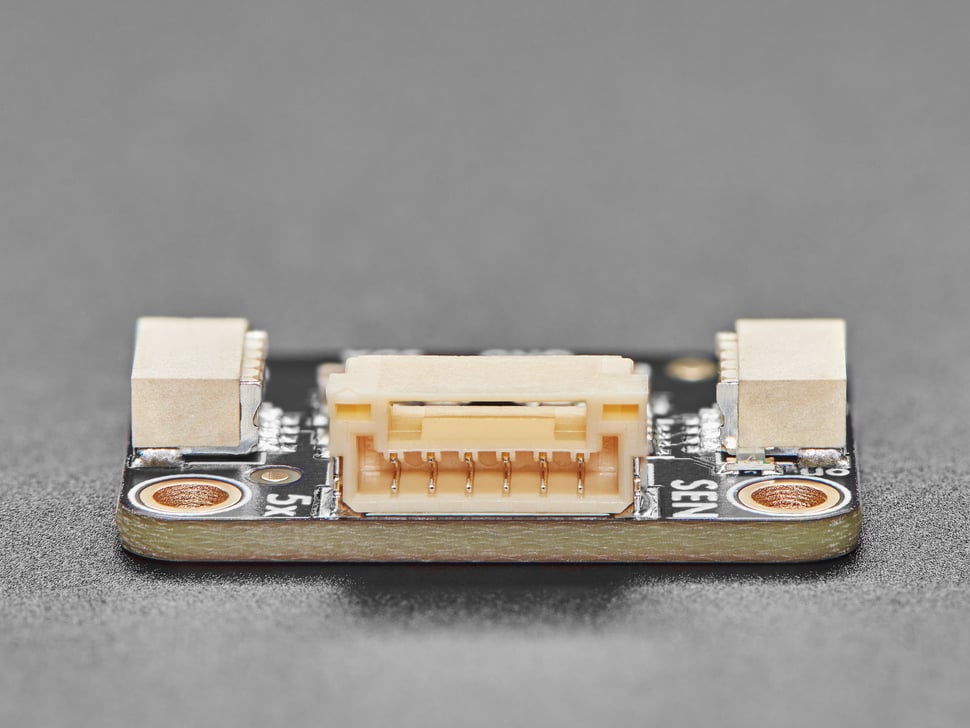

This adapter breakout facilitates seamless compatibility with all SEN5x boards through the inclusion of a JST GH-compatible connector in the center, allowing for direct connection between your SEN and this adapter using a 6-pin GH cable. It also features a switch-cap boost converter that produces a 5V, 100mA power supply for the fan and electronics in the SEN5x, even when using 3V power and logic. Simply use a STEMMA QT cable to connect your Metro, Feather, QT Py, Raspberry Pi, or other devices to the I2C port.

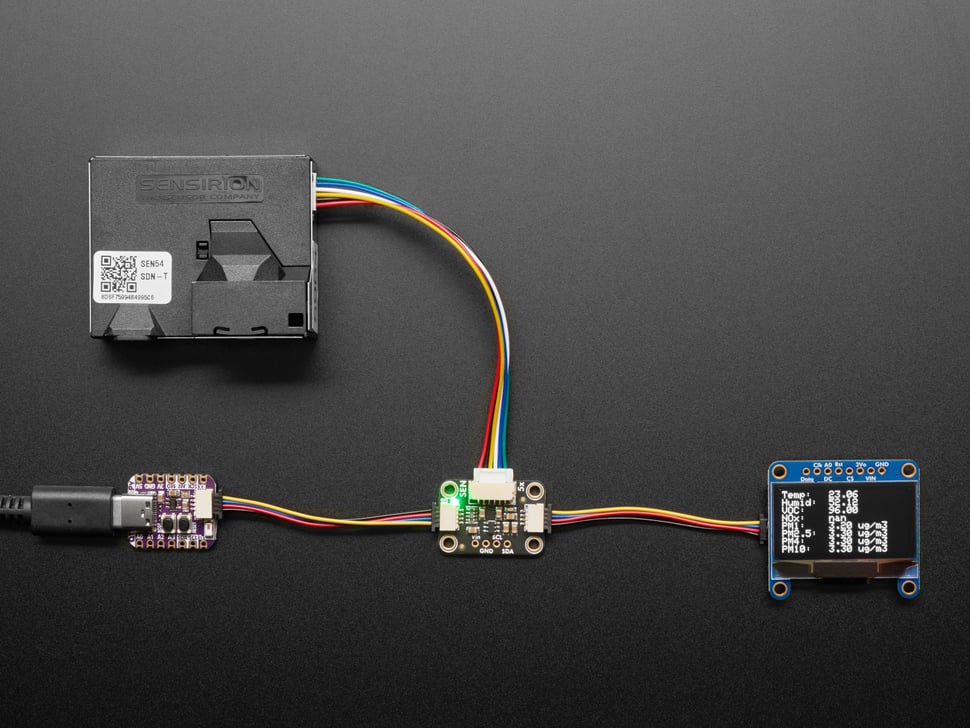

Once connected, use Sensirion's Arduino library or Raspberry Pi Python library to accurately measure temperature, humidity, VOC, and various particles including PM1, PM2.5, PM4, and PM10. (NOx readings can also be obtained from the SEN55).
Please note: this board does NOT come with a JST GH-compatible cable NOR a SEN5x sensor! You can pick up the cable here, and a SEN5x from DigiKey.
