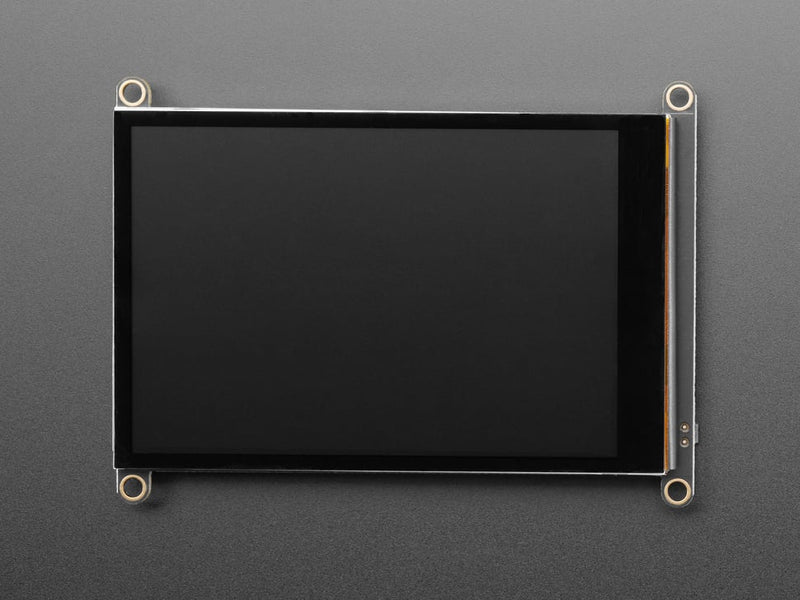

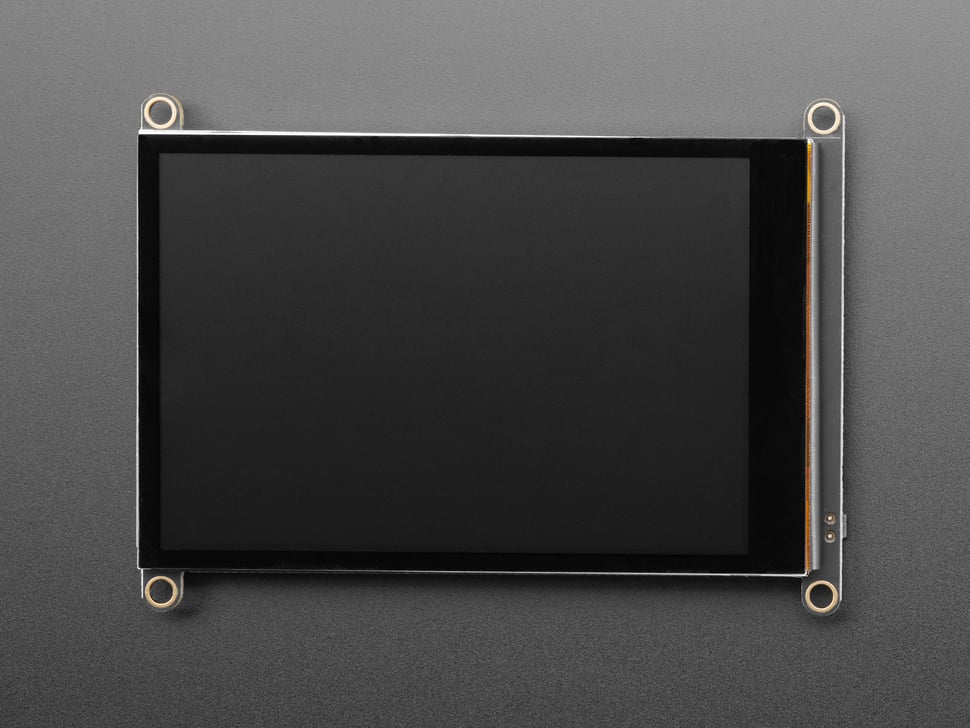

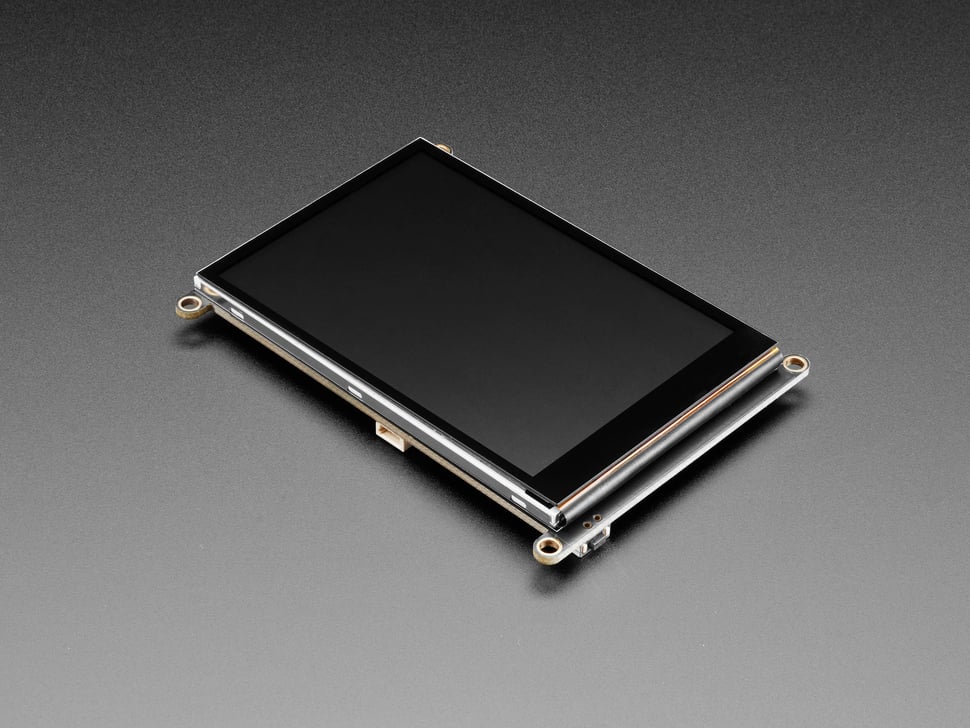

Enhance your Feather project with the impressive Adafruit TFT FeatherWing - a 3.5" 480x320 capacitive touchscreen. This TFT display boasts a 3.5" diagonal size, bright white-LED backlight, and a built-in microSD card socket. With individual 16-bit color pixel control, you'll enjoy a large 480x320 pixel resolution. That's significantly more than a black and white 128x64 display and twice as much as our 2.4" TFT FeatherWing. As an added bonus, this display includes a multi-touch capacitive touchscreen, allowing you to detect up to 5 finger presses anywhere on the screen with ease.
This FeatherWing utilizes an SPI display and SD card socket, along with an I2C touchscreen. It is compatible with all Feather boards but performs best with our higher-speed boards such as the nRF52, RP2040, ESP32, M0, and M4 (any board >32 MHz). It features a capacitive touchscreen controller controlled via I2C, requiring only one extra interrupt pin for a first-rate touchscreen controller. An extra pin can also be used for an optional SD card for storing display images.
This Wing comes fully assembled with dual sockets for your Feather to plug into. You get two sockets per pin, so you can plug in wires if you want to connect to Feather pins. Alternatively, each pin has a large square pad on the PCB for direct soldering.
The TFT display is an HX8357D-chipset compatible, we have both Arduino and CircuitPython libraries for it. And the capacitive touch driver is FT5336, with 5-point multi-touch, with both Arduino and CircuitPython libraries as well.
Technical Details
Product Dimensions: 89.3mm x 66.0mm x 10.5mm / 3.5" x 2.6" x 0.4"
Product Weight: 55.5g / 2.0oz
