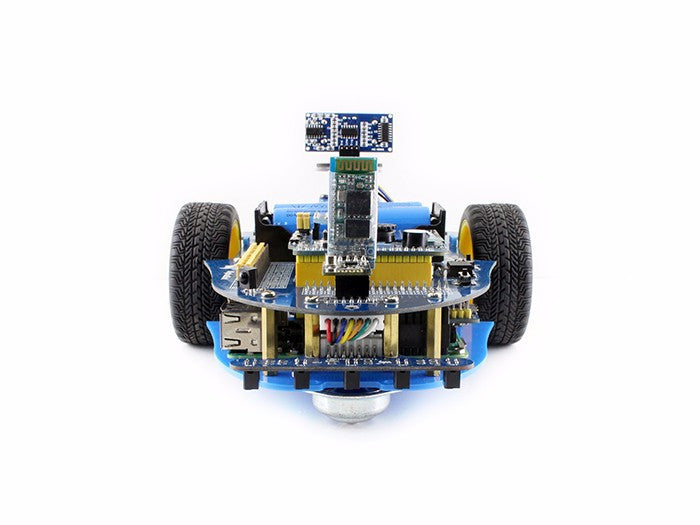

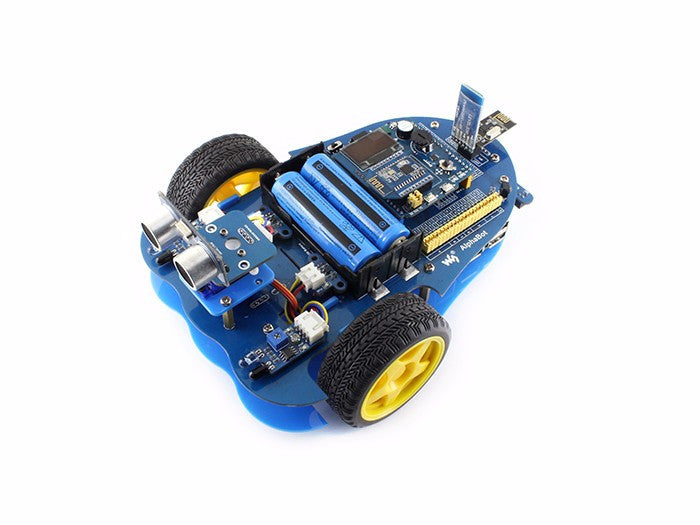

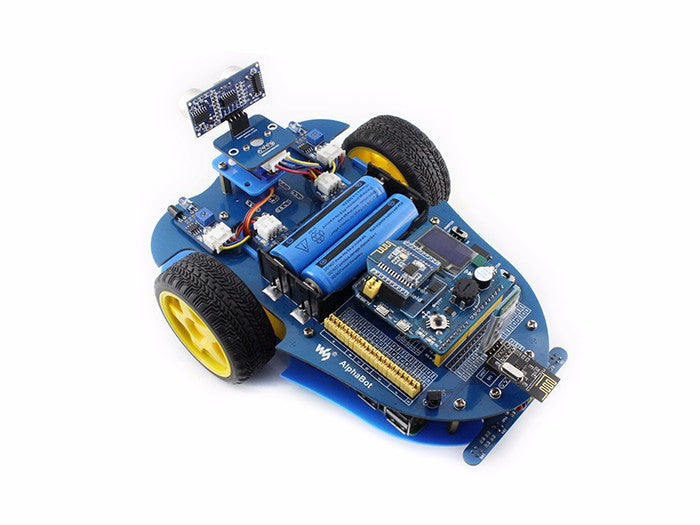

AlphaBot, Bluetooth robot building kit for Arduino

This kit comes with controller board UNO PLUS, AlphaBot robotic platform (line tracking, obstacle avoidance, speed measuring, IR control), ultrasonic sensor, Bluetooth module, and a versatile Arduino accessory shield.

While utilizing UNO PLUS as controller board, this kit is based on the Arduino software/hardware open source platform. Combined with the modular design, it's an ideal platform to get started with Arduino robot.

UNO PLUS Features

UNO PLUS is a development board compatible with the Arduino UNO R3, an improved & enhanced alternative solution for Arduino UNO R3.

UNO PLUS Vs UNO R3：

AlphaBot Features

• Raspberry Pi/Arduino interfaces, works with either one separately, or both

• Arduino extend header, supports Arduino shields

• Modular design, plug-and-play modules like line tracking, obstacle avoidance, speed measuring, etc. eliminating the trouble of connecting mess wires.

• LM298P motor driver with diode protection circuit, more safety

• LM2596 voltage regular, provides stable 5V power to the Raspberry Pi/Arduino

• TLC1543 AD acquisition chip, allows the Pi to use analog sensors

Accessory Shield integrates common used accessories/components listed as follows :

• Joystick (5 directions)


• Adjustable potentiometer

• Buzzer

• RGB LED

• Temperature sensor

• 3-axis digital accelerometer

• High precision RTC

• 0.96inch OLED

• XBee interface

1. ATMEGA328P-AU

2. AMS1117-3.3 : 3.3V voltage regulator

3. NCP1117ST50T3G : 5V voltage regulator

4. FT232RL : USB to UART convertor

5. Arduino interface


• compatible with standard Arduino interface with two additional analog inputs A6 (config the CFG), A7

• solder pads provided, supports prototype breadboard

• ICSP interface

• MICRO USB connector : for uploading program OR serial port debugging

• Power output header : 3.3V OR 5V, voltage level configured by the onboard power configuration switch, used as power output OR common-grounding with other boards

• FT232 pins : for burning Bootloader into the microcontroller

• DC input : 7V ~ 12V

• Reset button

• Power indicator

• Serial port Rx/Tx indicator

• User LED

• Power configuration switch : for configuring the operating voltage

• Bootloader selection switch


• turn ON : the board will reset when power-up OR other USB devices were detected connecting to the PC

• turn OFF : the onboard program runs immediately when power-up, and the board will not reset when other USB devices were detected connecting to the PC

1. Raspberry Pi interface: for connecting Raspberry Pi

2. Arduino interface: for connecting Arduino

3. Motor interface

4. Ultrasonic module interface

5. Servo module interface

6. Obstacle avoidance module interface

7. Speed measuring interface

8. Battery holder: supports 18650 batteries

9. Reserved power input (not soldered): for connecting other external power supply

10. Arduino expansion header: for connecting Arduino shields

11. UART interface: for connecting Bluetooth module, to control the robot remotely via Bluetooth

12. SPI interface: for connecting NRF24L01 wireless module

13. Line tracking module interface

14. TLC1543: 10-bit AD acquisition chip, allows the Pi to use analog sensors

15. LM298P: dual H bridge motor driver chip, up to 2A current

16. Anti-reverse diode

17. Power switch

18. LM2596: 5V regulator

19. Power indicator

20. UART switch: turn on to enable serial communication between Raspberry Pi and Arduino

21. IR receiver: control the robot remotely via infrared

22. Raspberry Pi/Arduino selection: select the Raspberry Pi or Arduino to control the robot peripherals

Note: photos are FOR REFERENCE ONLY, the other boards/modules/accessories are NOT included in the price.

AlphaBot

UNO_PLUS

Note: this product requires two 18650 batteries to work, which are NOT included and should be purchased separately.

1. AlphaBot mainboard x1

2. Tracker Sensor x1

3. Photo Interrupter Sensor x2

4. Infrared Proximity Sensor x2

5. Motor with gearbox 2PCS x1

6. AlphaBot wheel 2PCS x1

7. AlphaBot acrylic chassis x1

8. Motor mounting plate 4PCS x1

9. omni-direction wheel x1

10. 20-slots encoder disk 2PCS x1

11. IR remote controller x1

12. XH2.54 4cm 4Pin 2PCS x1

13. XH2.54 4cm 3Pin 2PCS x1

14. XH2.54 4cm 7Pin x1

15. AphaBot screws x1
