If you are looking for the product with soldered header than, click here.
The Arduino Due is the first Arduino board which is based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins out of which 16 analog inputs, 2 DAC and 2 CAN. It is perfect board for making powerful larger scale Arduino projects.

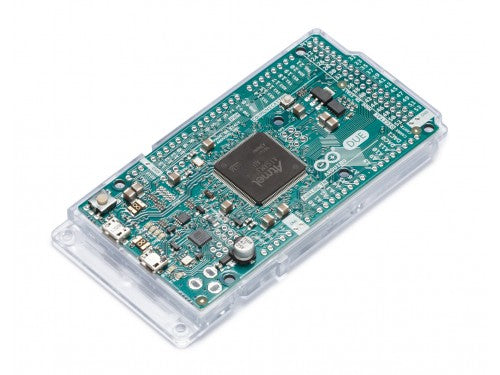

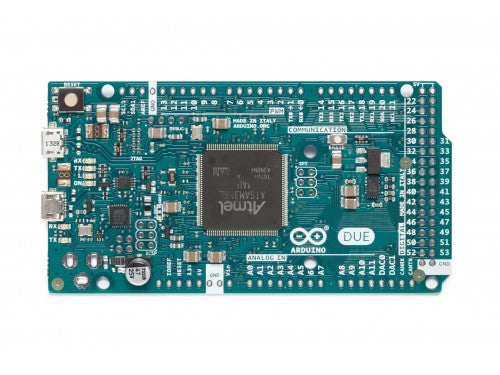

The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM cortex-M3 CPU.It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.
Resources used for programming:
- Download software :
https://www.arduino.cc/en/Main/Software - Getting starter guide:
https://www.arduino.cc/en/Guide/HomePage - Step by step examples:
https://www.arduino.cc/en/Tutorial/HomePage - Programming reference:
https://www.arduino.cc/en/Tutorial/Foundations
Here are the technical specification for Arduino Due:
| Microcontroller | AT91SAM3X8E |
| Operating Voltage | 3.3V |
| Input Voltage (recommended) | 7-12V |
| Input Voltage (limits) | 6-16V |
| Digital I/O Pins | 54 (of which 12 provide PWM output) |
| Analog Input Pins | 16 |
| Analog Output Pins | 2 (DAC) |
| Total DC Output Current on all I/O lines | 130 mA |
| DC Current for 3.3V Pin | 800 mA |
| DC Current for 5V Pin | 800 mA |
| Flash Memory | 512 KB all available for the user applications |
| SRAM | 96 KB (two banks: 64KB and 32KB) |
| Clock Speed | 84 MHz |
| Length | 101.52 mm |
| Width | 53.3 mm |
| Weight | 36 g |
