Note: The Arduino GIGA R1 WiFi Development Board is available for pre-order and is expected to be shipped in mid-October.

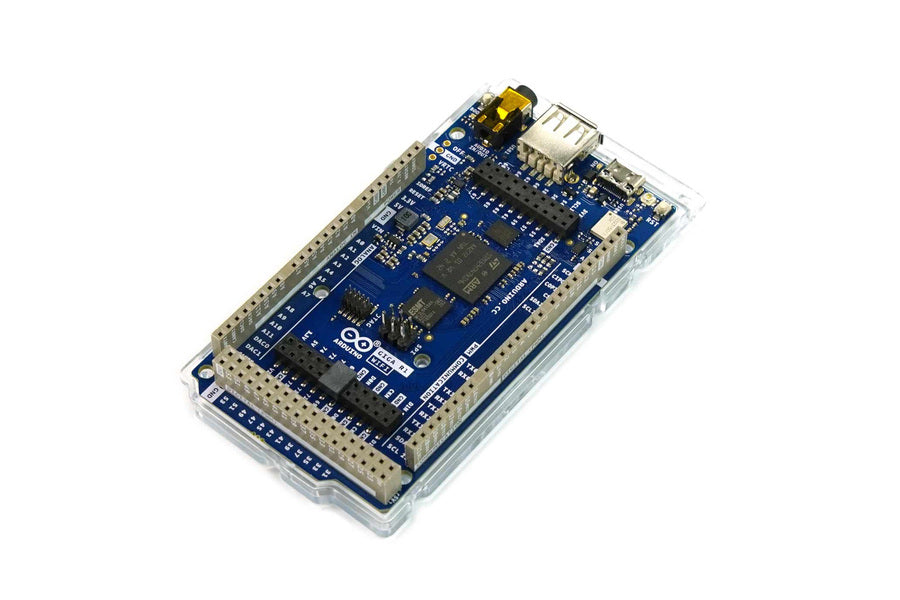

At just 101 x 53mm, the Arduino GIGA R1 WiFi Development Board has the same form factor as the Mega and Due, yet packs 76 GPIO pins, including 12 analog pins, 12 PWM pins, 4 UARTs, 3 I2C ports, 2 SPI ports, 1 FDCAN, and 1 SAI. Featuring an external Murata 1DX antenna for wireless connectivity, users can easily connect the board to the Arduino IoT Cloud for remote and secure monitoring of projects.
The GIGA R1 WiFi features a 32-bit Arm MCU STM32H747XI with a Cortex-M7 processor clocking at 480 MHz and a Cortex-M4 at 240 MHz, as well as 2MB Flash and 1MB RAM. This setup enables users to run two separate programs, such as micro-python and Arduino, simultaneously.
Figure: Board Overview of Arduino GIGA R1 WiFi
The board features a USB-C connector used for power, programming, and an HID function that allows it to simulate mouse or keyboard when connected to a PC. And it also has a USB-A connector suitable for hosting USB sticks, other mass storage devices, and HID devices such as a mouse or keyboard. Additionally, it includes a 3.5mm input/output audio jack, JTAG connector(2x5 1.27mm), and 20Pin Arducam camera connector. The GIGA R1 WiFi can handle up to 24 volts.
Figure: Arduino GIGA R1 WiFi Pinout
Figure: Arduino GIGA R1 WiFi Block Diagram
Features:
Applications:
Specification:
USB Type-C port × 1, used for programming & HID
USB 2.0 Type-A port × 1
UART × 4, I2C × 3, SPI × 2
PWM × 12
Analog inputs × 12
DAC × 2
CAN bus (requires an external transceiver)
Projects:
Project: GIGA R1 WiFi-powered wearable detects falls using a Transformer model
Introduction:
Naveen Kumar set out to produce a wearable fall-detecting device that aims to increase the speed at which this occurs by utilizing a Transformer-based model rather than a more traditional recurrent neural network (RNN) model.Documents:
Product Includes:
