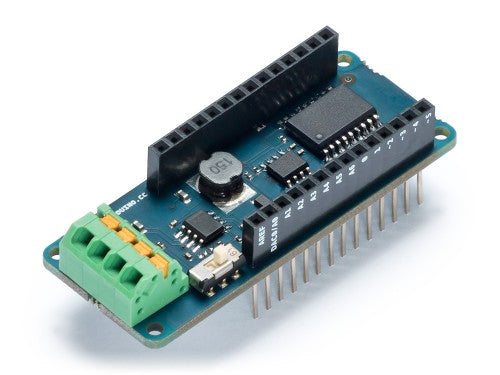

Arduino MKR CAN Shield

Price:
Sale price A$67.82   Inc. GST
SKU:
ARD-ASX00005
Out Of Stock

We will notify you when this product becomes available.

With this shield you can easily connect to a CAN (Controller Area Network) Bus. Discover new possibilities of interaction between your Arduino MKR Board and the CAN ecosystem.

The MKR CAN shield can simplify the connection of the MKR boards with industrial systems and especially with automotive applications. This shield opens a new set of possible applications like smart vehicles, autonomous cars and drones. A CAN connection also provides the possibility to connect a MKR board directly with several types of industrial grade sensors, motors and displays.

ProtocolCAN Bus
InterfaceSPI
Circuit Operating Voltage3.3 V
ControllerMicrochip MCP2515 (datasheet)
TransceiverNXP TJA1049 (datasheet)
Buck converterTexas Instruments TPS54232 (datasheet)
Vin (screw connector)7 V - 24 V
Vin (header)5 V
CompatibiltyMKR size
Switchable onboard termination resistor

OSH: Schematics

The Arduino MKR CAN Shield is open-source hardware! You can build your own board using the following files:

EAGLE FILES IN .ZIP SCHEMATICS IN .PDF
