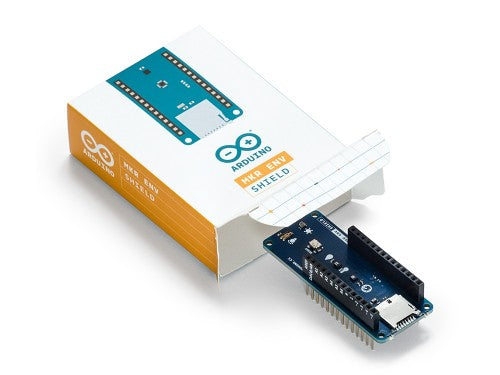

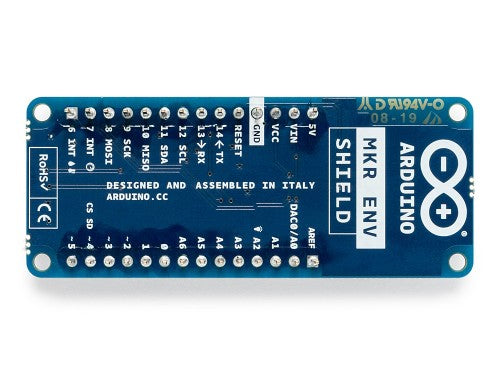

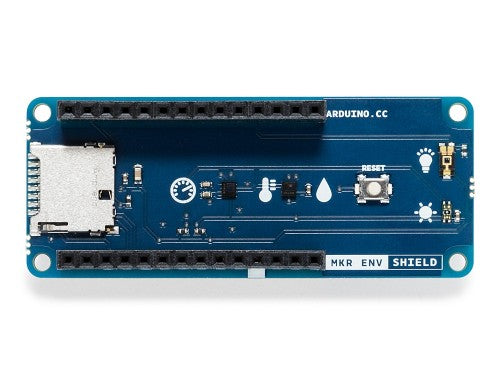

The MKR ENV Shield allows a MKR board to acquire environmental data collected by an array of sensors.
These sensors are of the latest generation and measure:
- Atmospheric pressure
- Temperature and humidity
- Ultraviolet UVA intensity Ultraviolet UVB intensity,
- UV Index (calculated)
- Light intensity (in LUX)
To help you build projects and store the data collected locally, this shield has a slot for a microSD card (not provided).
There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.
Sensors used :
| ICs | LPS22HB |
| Input Voltage | 3.3V |
| Operating Voltage | 3.3V |
| Ranges | Pressure: 260 to 1260 hPa |
| Communication | I2C/Analog |
| Length | 61 mm |
| Width | 25 mm |
| Weight | 32 gr. |
OSH: Schematics
The Arduino MKR ENV Sheld is open-source hardware! You can build your own board using the following files:
EAGLE FILES IN .ZIP SCHEMATICS IN .PDFShipping rates Australia wide and New Zealand
