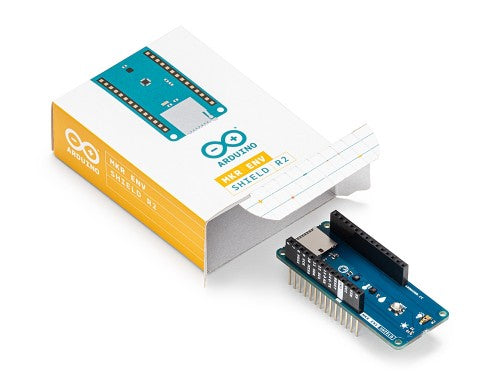

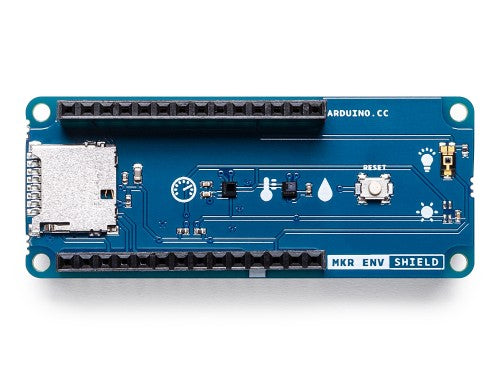

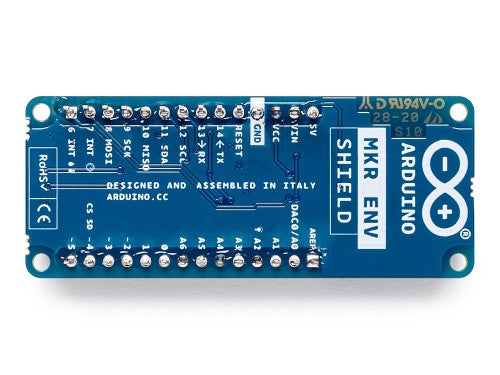

Arduino MKR ENV Shield rev2
Arduino MKR ENV Shield rev2
Arduino MKR ENV Shield rev2
Arduino MKR ENV Shield rev2
Arduino MKR ENV Shield rev2

Arduino MKR ENV Shield rev2

Price:
A$73.04   Inc. GST
SKU:
ARD-ASX00029
Out Of Stock

We will notify you when this product becomes available.

These sensors are of the latest generation and measure:

  • Atmospheric pressure
  • Temperature and humidity
  • Light intensity (in LUX)

To help you build projects and store the data collected locally, this shield has a slot for a microSD card (not provided).

There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.

Sensors used :

  • ST LPS22HB :  atmospheric pressure
  • ST HTS221  : temperature and humidity
  • VISHAY TEMT6000 : Lux of the ambient.
  • VISHAY VEML6075 : UltraViolet wavelengths  A / B
ICs

LPS22HB
TEMT6000

Input Voltage3.3V
Operating Voltage3.3V
Ranges

Pressure: 260 to 1260 hPa
rH sensitivity: 0.004% rH/LSB
Humidity accuracy: ± 3.5% rH, 20 to +80% rH
UVA, UVB and UVBI measurment
0 to 650 Lux

CommunicationI2C/Analog
Length61 mm
Width25 mm
Weight32 gr.

OSH: Schematics

The Arduino MKR ENV Shield is open-source hardware! You can build your own board using the following files:

EAGLE FILES IN .ZIP SCHEMATICS IN .PDF FRITZING IN .FZPZ

Sensors used :

  • ST LPS22HB :  atmospheric pressure
  • ST HTS221  : temperature and humidity
  • VISHAY TEMT6000 : Lux of the ambient light.
