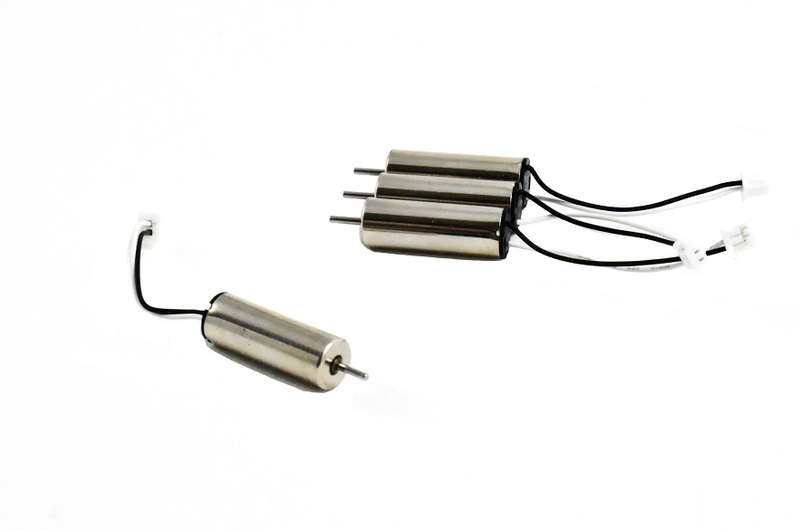

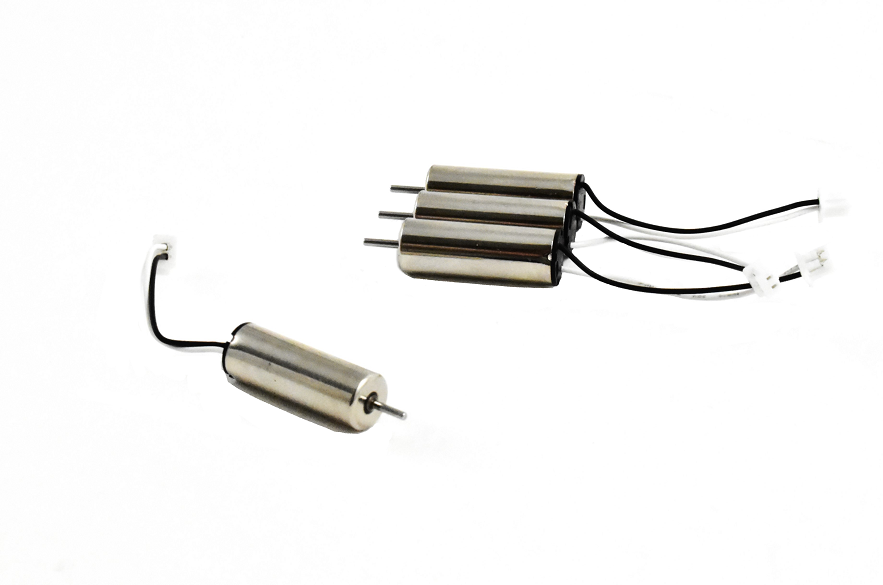

Pack of 4 spare 7x20 mm brushed coreless DC-motors for Crazyflie 2.X.
These motors that are 4 mm longer then the standard 7x16 mm motors will generate more thrust. Approximately 5 grams added trust per motor together with the 51MMX2 propeller, giving a total of 20 grams more thrust. Comes at the expense of roughly 15% less flight time. Can also be bought in a bundle.
Note: This motor has a 1 mm shaft and the stock propeller will not fit this motor.
Mechanical specifications
- Diameter: 7.0 mm
- Length: 20.0 mm
- Shaft length: 5 mm
- Shaft diameter: 1 mm
- Weight: 3.6 g
- Wire length: 32.0 mm
- Molex picoblade 2P connector
Electrical specifications
- Kv: 13 000 rpm/V (±15%)
- Rated voltage: 3.4V DC
- Rated current: 2600mA (max)
- Terminal resistance: 0.75 Ω (±20%)
Package contents
- 4 x 7x20mm brushed coreless DC-motors
