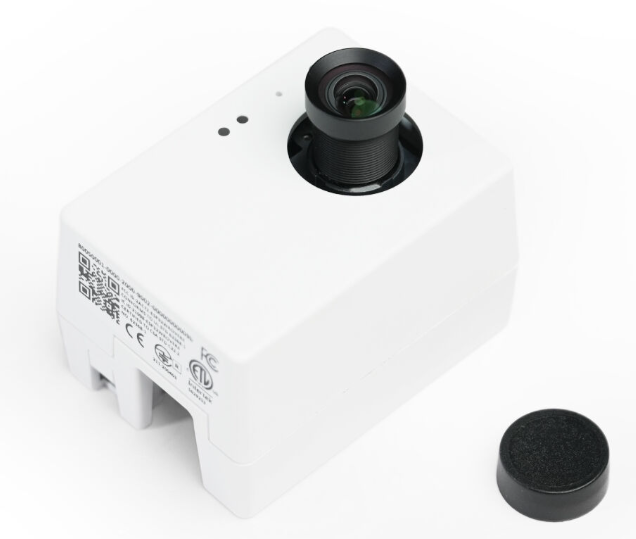

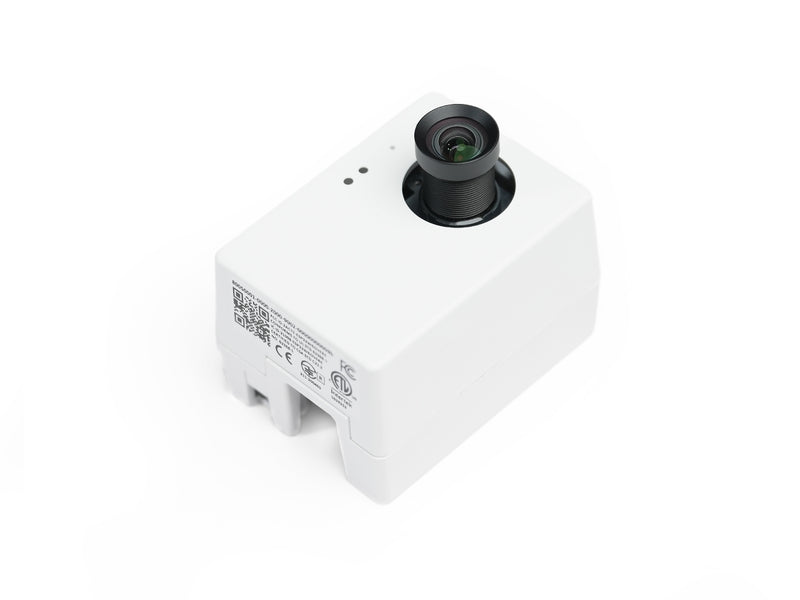

The CSV26 Camera integrates Sony’s IMX500 sensor and Local Edition, enabling on-camera image processing and AI image analysis without external processing or memory. Sony’s IMX500 CMOS sensor features a stacked pixel chip and logic chip, embedding AI capabilities directly on the sensor to reduce processing time. This intelligent vision sensor moves standard image processing from a cloud-based system to the camera itself, capturing the image’s information and meaning and outputting only the necessary data. This results in lower latency, offline image processing, reduced power consumption, and lower costs.
Sony’s Local Edition provides a comprehensive solution for device management, AI development, and system and cloud integration. The CSV26 Camera features a built-in lens, lightweight and compact housing, and an Ethernet PoE connection for simple system integration. It is ideal for a wide range of applications, including retail, smart buildings, manufacturing, logistics, and industrial automation.
Features
- Built-in AI Image Processing: Features Sony’s IMX500 sensor with integrated AI image analysis, eliminating the need for external processing or memory.
- Reduced Latency: On-camera image processing minimizes data transfer time, achieving lower latency.
- PoE Connection: Features Ethernet PoE for easy and flexible system integration, ideal for various applications including retail, smart buildings, manufacturing, logistics, and industrial automation.
- Energy Efficient: Lowers power consumption, offering a more cost-effective solution.
- Easy Integration: Lightweight and compact design with a built-in lens and Ethernet PoE connection simplifies system integration, suitable for a wide range of applications.
Specification
Manufacturer | Rayprus Technologies Limited |
Model Number | CSV26 |
Sensor | Sony IMX500 |
Focal length | 4.35mm |
Focus Type | Fixed Focus (Focused at 2m*) *performance varies depending on the application |
Field of View (D x H x V) | 85.5° x 71.6° x 56.8° |
Aperture | F3.0 |
Distortion | Optical distortion : < - 1.55% TV Distortion : < - 0.62% |
MCU | ESP32-WROVER-E |
OS | RTOS |
Intermittent | Not Supported |

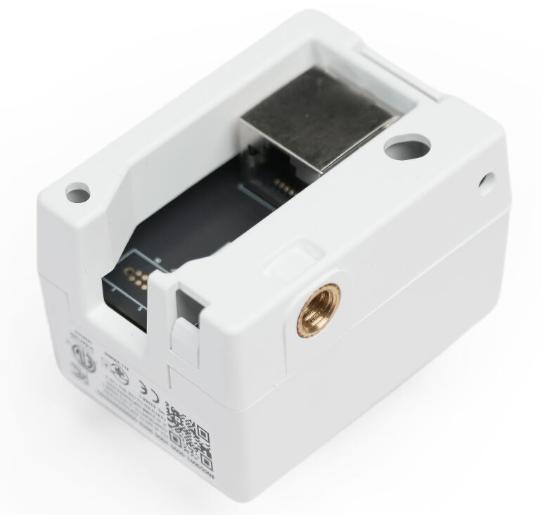

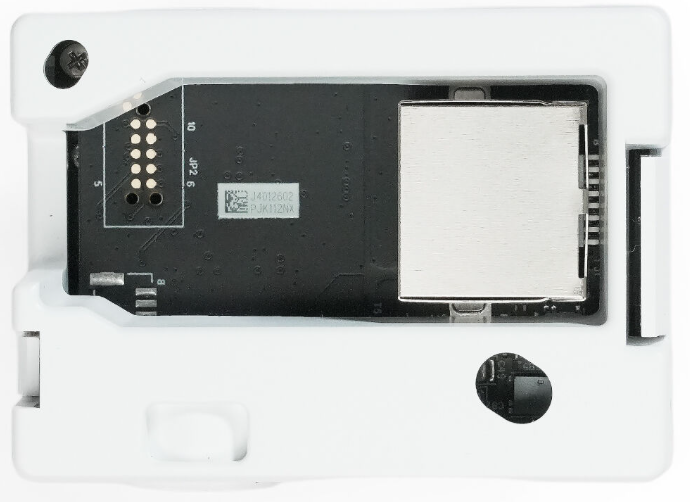

Network | Ethernet 100Base-T,RJ45 |
Power Supply | Power over Ethernet (IEEE 802.3af) |
Power Consumption | Typ.1.5W Max. 3W |

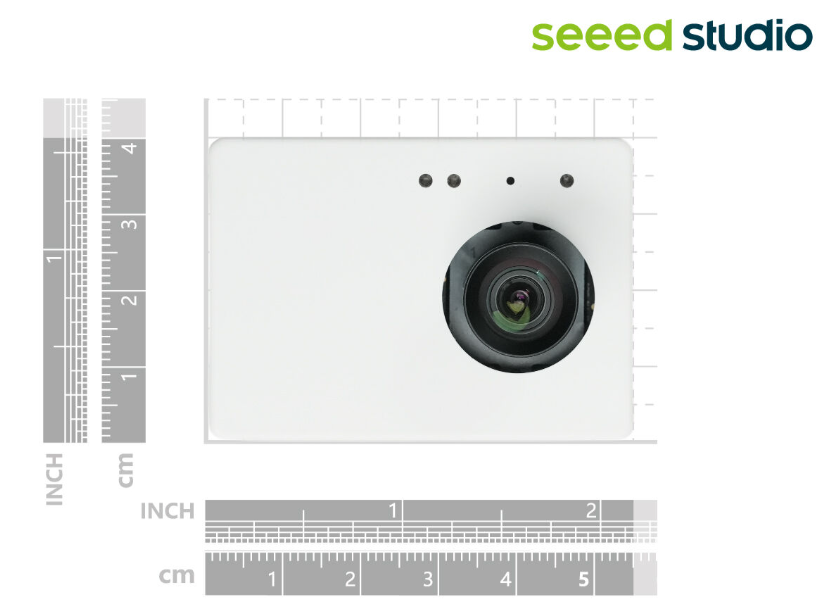

Dimensions (mm): | 55mm x 40mm x 35mm (excludes lens protrusion) |
Weight (g) | 48g |
Indoor/Outdoor | Indoor |
Operating Temperature (°C) | -10 to +40 ambient |
Storage Temperature (°C) | -30 to +60 |
Humidity | Operating:20% - 80% relative non-condensing |
Part List
Product | Quantity |
CSV26 Camera | 1 |
ECCN/HTS
| HSCODE | 8525891900 |
| USHSCODE | 8525805050 |
| UPC | |
| EUHSCODE | 8517600000 |
| COO | CHINA |
