Descripton:

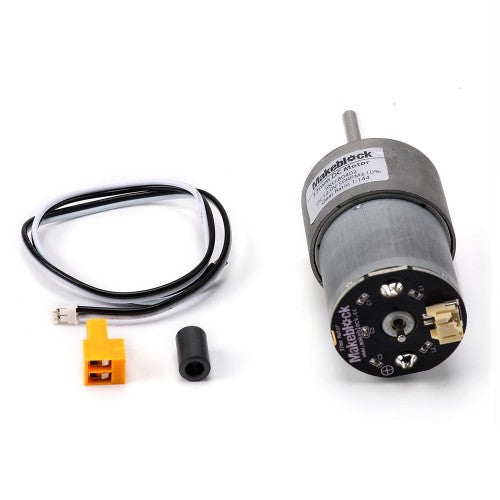

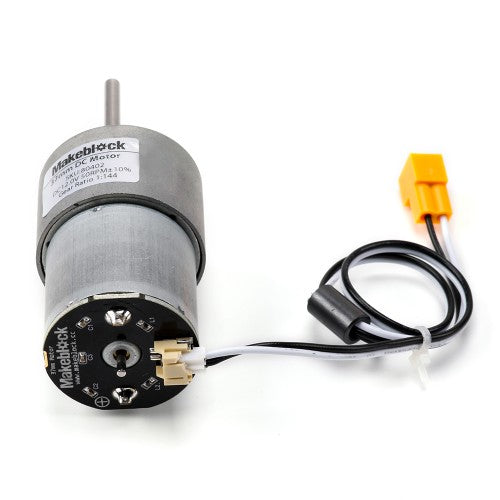

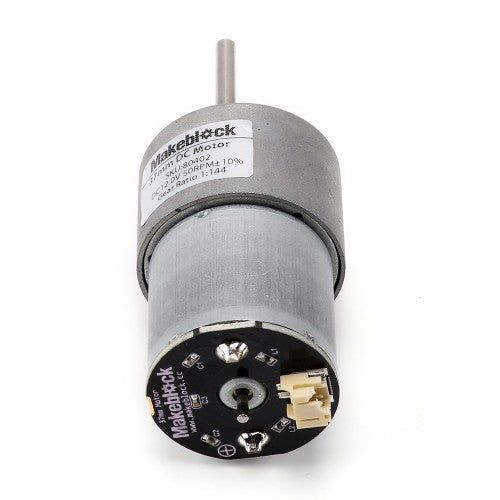

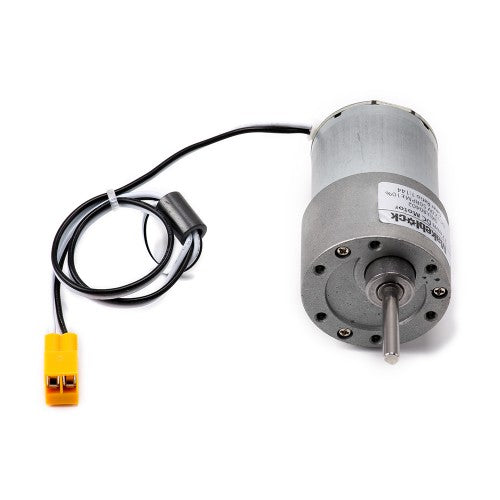

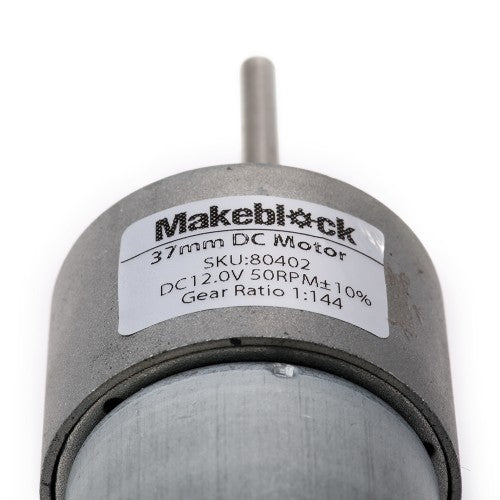

DC motors are the most commonly used motors in Makeblock Platform. With Makeblock DC Motor-25 Brackets, they may be easy to connet to Makeblock structural components.
Specification:
1 Test condition
1.1. Rated voltage： 12.0 V(DC)；
1.2. Ambient temperature：+25±3℃；
1.3. Ambient relative：60%±5%；
2. No-load characteristic
2.1 Gear Ratio:1:144 ;
2.2 No load current：≦ 100 mA
2.3 No load speed： 50 ±10%rpm;
3. Load characteristic
3.1. Rated torque： 4.5±Kg.cm;
3.2. Rated current：≦ 300 mA;
3.3. Rated speed： 40±10%rpm;
3.4. Stall torque: 10.0± kg.cm;
3.5. Stall current：≥ 1.1 A;
4. Direction of Ratation：CW
Thrust play of shaft：0.05-0.5 mm;
Radial play of shaft：≦ 0.02 mm;
Size Chart (mm) :
