Description

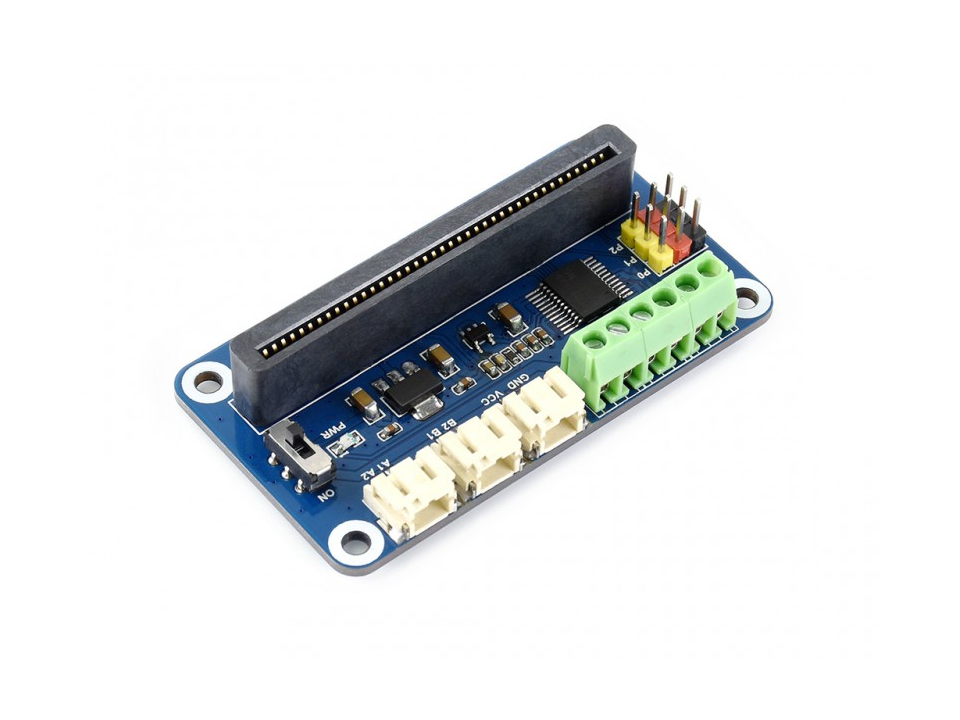

This driver board gives your micro:bit the ability to drive two channel DC motors and three channel servos. It's an ideal choice for you to DIY mobile robots.
Features

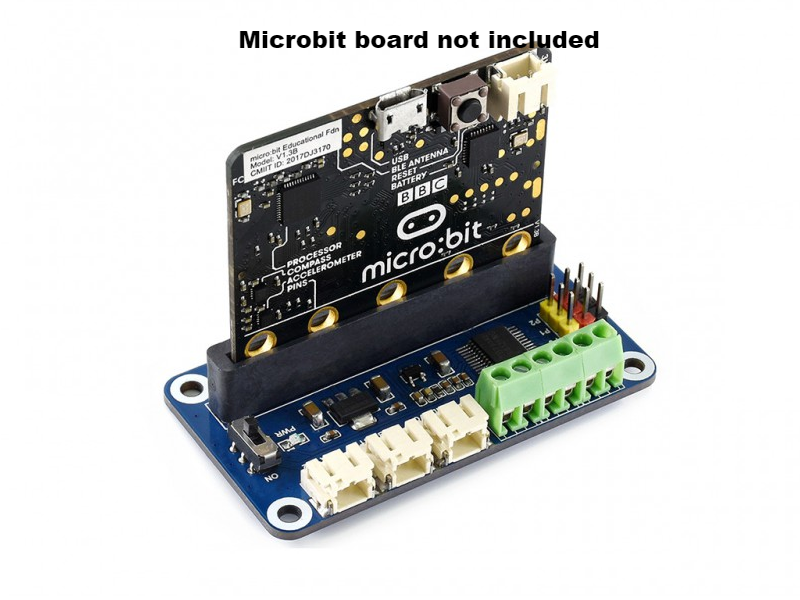

micro:bit edge connector, directly pluggable
2x DC motor interfaces, 3x servo interfaces
Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
Onboard multi connector options for DC motors in different specifications, onboard standard servo headers
Comes with development resources and manual (micro:bit graphical examples)
Micor:bit has variety of programming methods like mbed, micropython, typescript and other programming methods, as well as code online websites which are abundant.
The official recommendation are two programming methods: typescript and micropython. Typescript is the graphical programming language. Its website is that: https://makecode.microbit.org/#
Technical Details
| Dimensions | 65mm x 36mm x 15mm |
| Weight | G.W 219g N.W 200g |
| Battery | Exclude |
| Power supply | 6V~12V (VIN terminal) |
| Servo voltage | 5V |
| Logic voltage | 3.3V |
| Driver | TB6612FNG |
| Mounting hole size | 3.0mm |

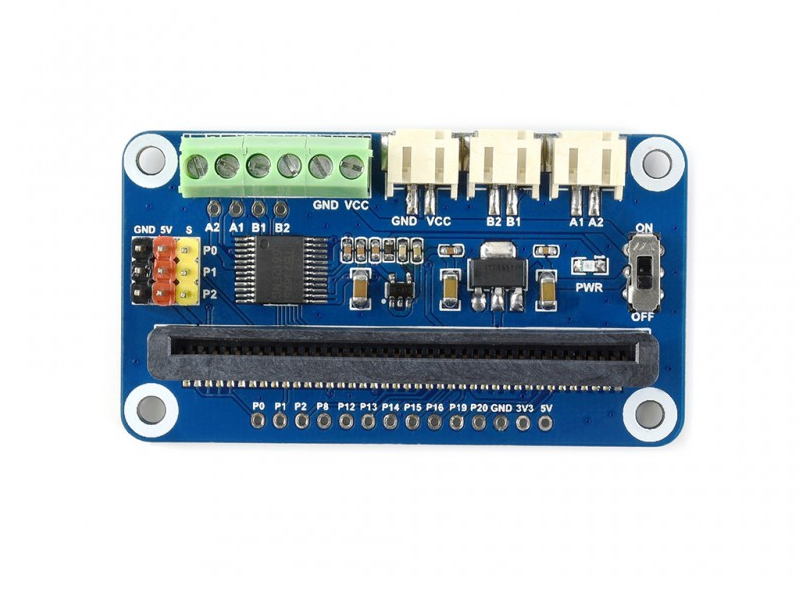

| Pinouts | |
| Vcc | Power (6~12V) |
| GND | Ground |
| A1 | positive pole of motor A |
| A2 | negative pole of motor A |
| B1 | positive pole of motor B |
| B2 | negative pole of motor B |
| P0 | control pin P0 of steering gear |
| P1 | control pin P1 of steering gear |
| P2 | control pin P2 of steering gear |
Part List
| Motor Driver for micro:bit | 1 |
ECCN/HTS
| ECCN | EAR99 |
