EdgeBox-RPI-200 series are all-in-one Raspberry Pi-based industrial edge computing controllers, combine multiple industrial purposes. Designed as high-scalability and rugged industrial hardware, mounted with rich IO resources, and supported by the great Raspberry Pi industrial software ecosystem, it is an ideal choice for smart automation and Industrial Internet of Things(IIoT) solutions.
Feature
- All-in-one Industry Controller: More than just a PLC, PAC, more can it implement functions of the IIoT Gateway, OPC UA Server, and Industry PC.
- Powerful and Flexible Processors: Powered by Raspberry Pi Compute Module 4 (CM4), equipped with up to 8GB RAM and 132GB eMMC, performing real-time operation and multi-process.
- Rich IO resources and Industrial Interfaces Mounted: Support a wide range of industrial bus protocols and standards
- Multiple Communication Capabilities: Carry full-featured wireless interconnectivity and an RJ45 Gigabit Ethernet, supported by multiple cloud services

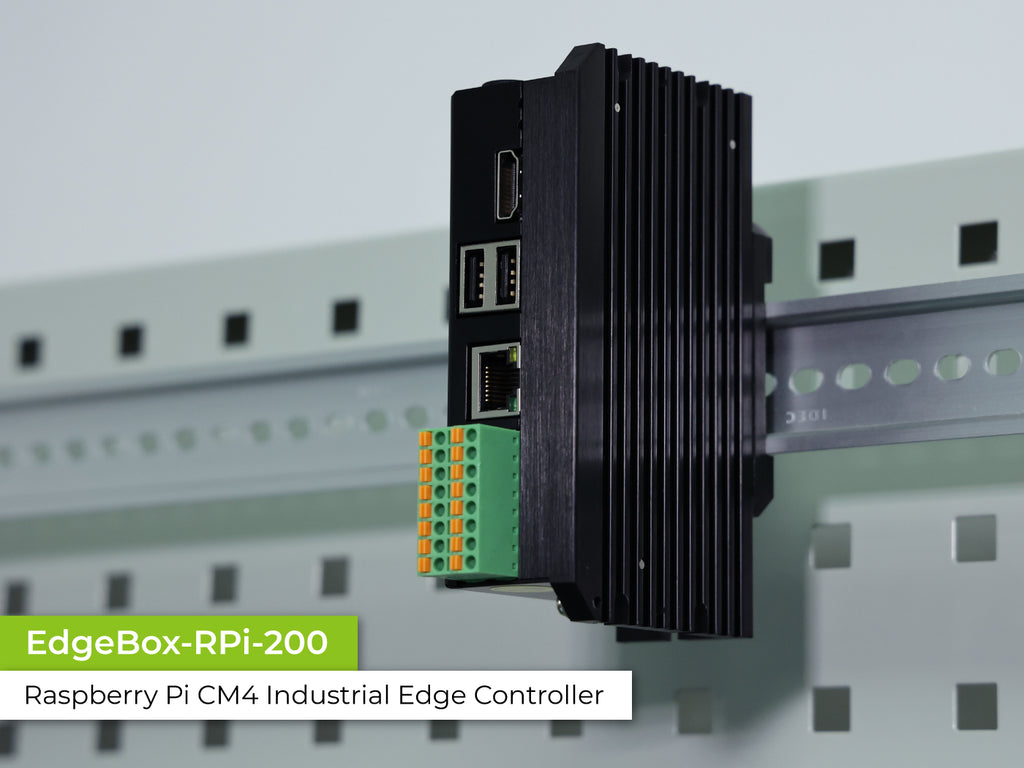

- Rugged Industrial-grade Hardware Design: Integrated thermal management with full Aluminum heatsink enclosure, supporting 35mm DIN and wall mount
- Great Raspberry Pi Industrial Software Ecosystem: Support a variety of industrial software and platforms, including Codesys, Node-Red, MQTT, OPC UA, Ignition and etc.
Description
EdgeBox-RPI-200 series controllers represent the conceivable alternatives for increasing edge automation and industrial interconnecting control. Being small and compact, they can perform the real-time operation and multi-process controlling for multiple industrial purposes, not only the PLC & PAC but also the IIoT Gateway, OPC UA Server, and Industry PC.
Besides EdgeBox-RPI-200, We also have the other 2 Edge products for different solutions in the Edge family, powered by Raspberry Pi and ESP. To help you understand the differences deeply and choose the most suitable part for your projects, please refer to the Seeed Studio Edge Series Page.
Powerful and Flexible Processors
EdgeBox-RPI-200-CM4104016 leverages the processing power of the AI-enabled Raspberry Pi Compute Module 4(CM4), running up to 1.5GHz, equipped with 4 GB RAM and 16 GB eMMC, compiling in Linux, with Debian Operate System.

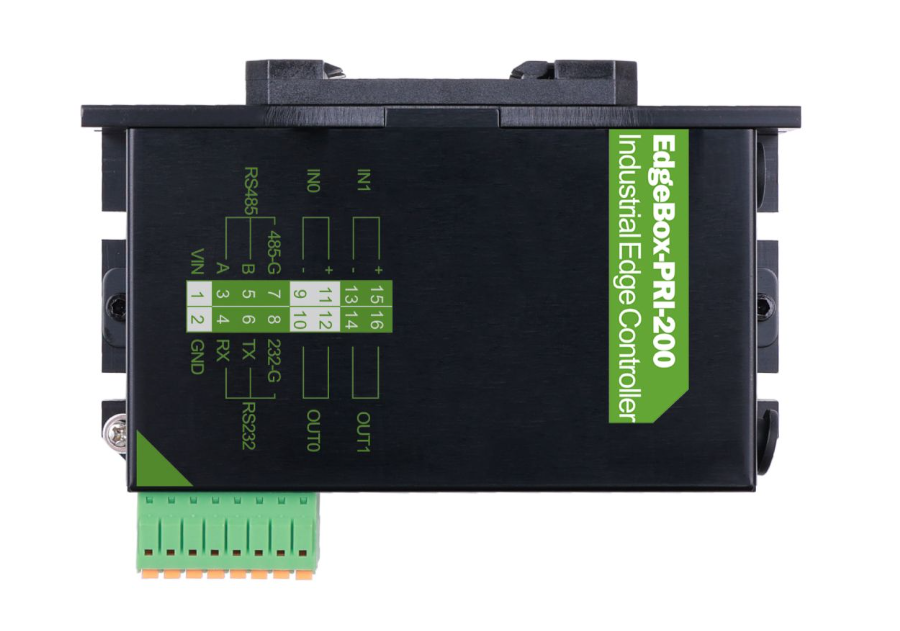

Rich IO Industrial Interfaces while Supporting Extensive Bus Protocols and Standards
This high-scalability equipment has been engineered with multiple isolated industrial interfaces, which adhere to various industrial bus protocols and standards to achieve data transmission in a variety of situations. It even offers extended SSD storage and enhanced display output, for more data acquisition and improved visual presentation.
IO resources |
Protocols and standards |
|
|
Multiple Communication Capabilities, Multiple Cloud Services Support
The EdgeBox employs high integration of communication, which integrates with wireless capabilities, supported by multiple cloud services. It is greatly qualified for IIoT(Industrial Internet of Things), which you can utilize to build IoT Gateways.
Communication Capabilities |
Cloud Services Support |
|
|
Great Raspberry Pi Industrial Software Ecosystem
With the great Raspberry Pi industrial software ecosystem, you will find that EdgeBox has plentiful software and autonomous platforms supported. With massive documentation and open communities, troubleshooting can be precise and expeditious.
- Codesys
- Node Red
- MQTT
- OPC UA
- Ignition

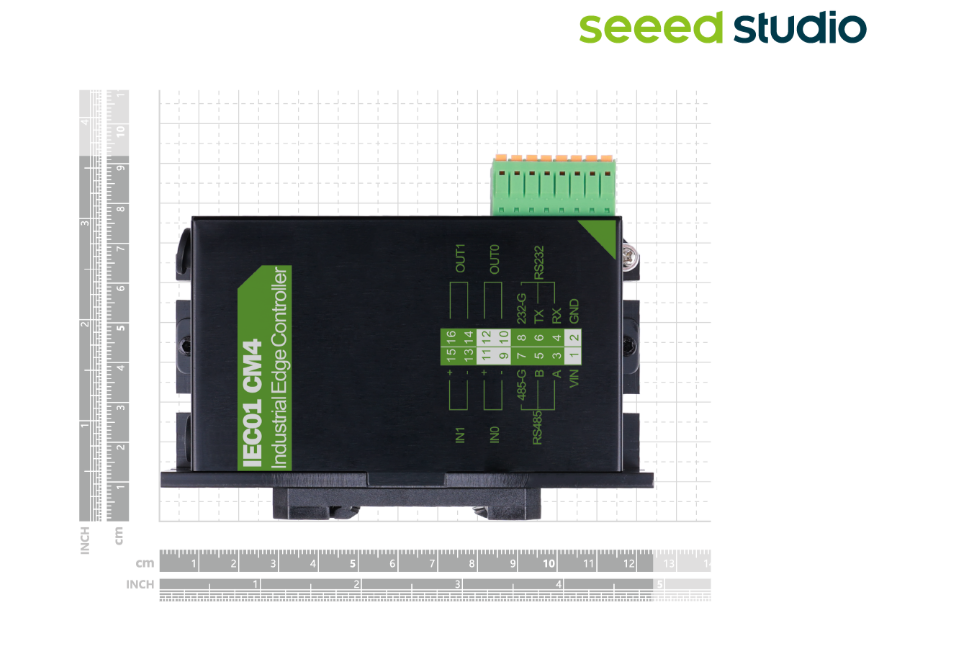

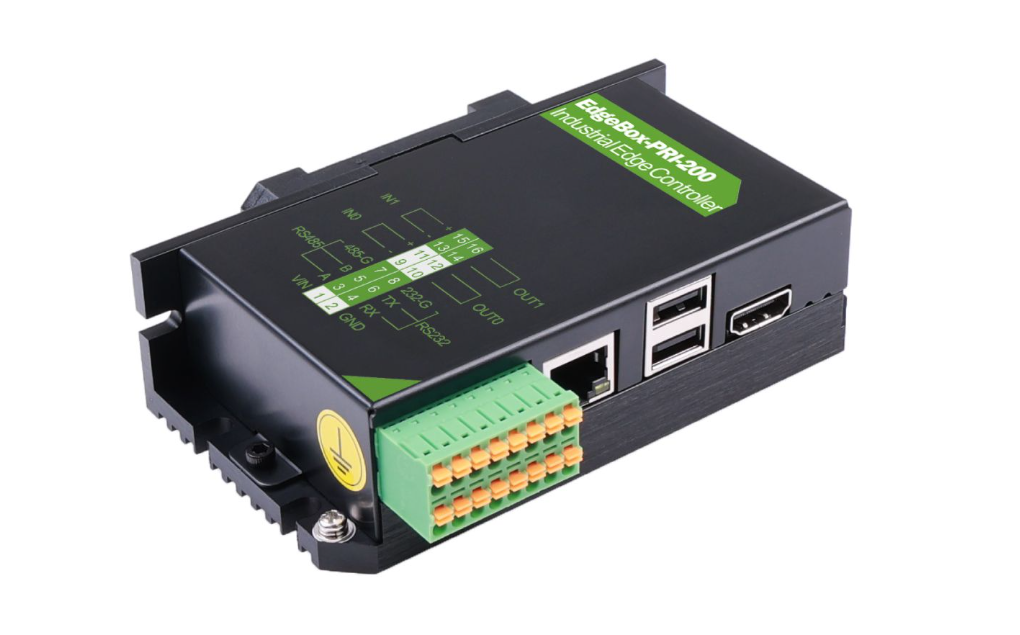

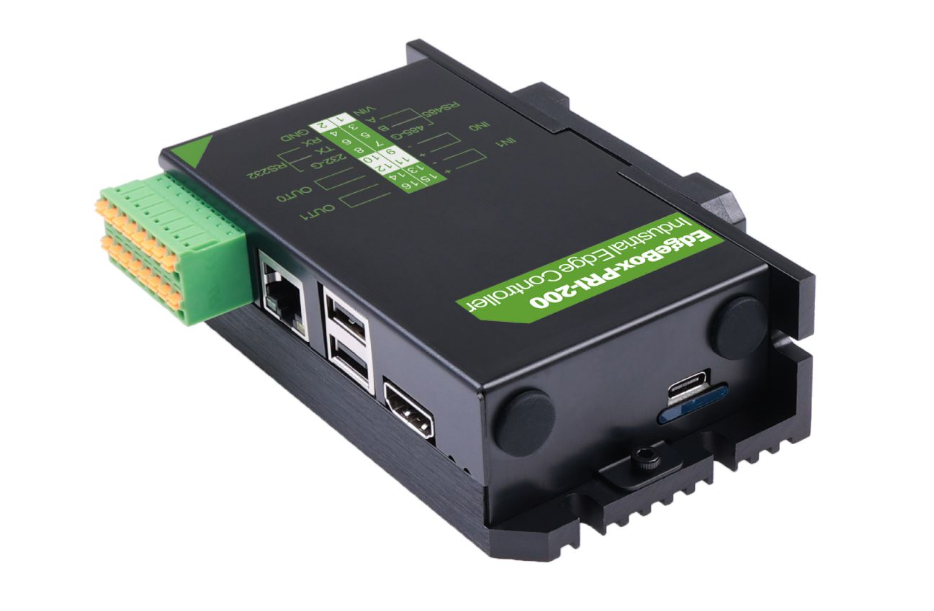

Robust Hardware Design

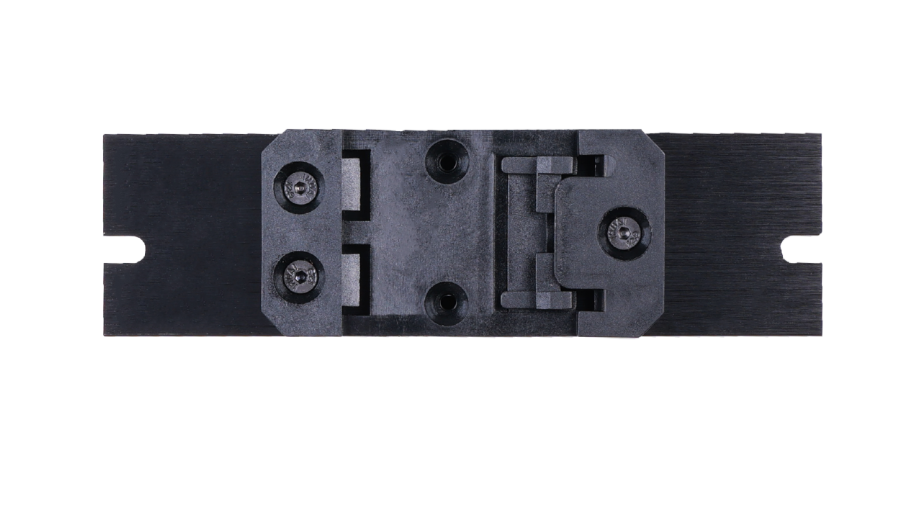

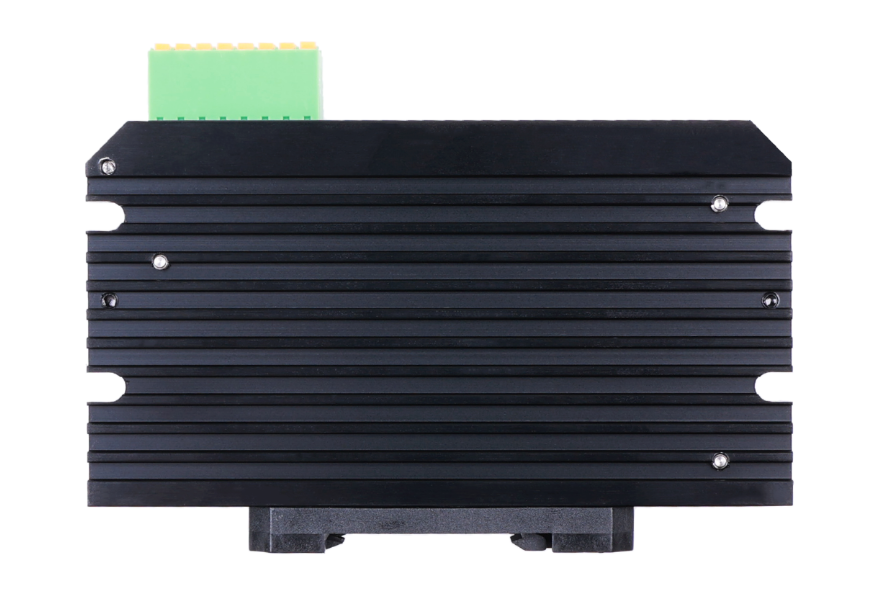

The overall structure of Edge Box is rugged and maintenance-reducing, as it integrates thermal management with full Aluminum heatsink enclosure. It is ultra-lightweight and supports 35mm DIN and wall mount, all of which make it suitable for limited space and extreme conditions including in-vehicle applications.
Note
The current EdgeBox-RPi-200 does not support a brush system and requires the help of an external device.
Application
Specification
Parameters | Detail |
Basic | |
CPU Core | 4-core Raspberry Pi CM4 |
Memory | 8GB |
Storage | 32GB |
Wireless | |
WiFi | 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac equipped |
Bluetooth | Bluetooth 5.0, BLE equipped |
Cellular | Mini-PCIe support 4G LTE(Quectel EC20/EC25 tested)* |
LoRa | Mini-PCIe support LoRaWAN(Seeed WM1302 tested)* |
Interface |
|
Ethernet | 1000M RJ45 *1 |
HDMI | HDMI 2.0 up to [email protected] |
USB | USB2.0 A*2 |
RS Serial | RS485 *1 (Isolated) |
RS232 *1 | |
M.2 socket
| 2242 NVME SSD card
|
DI | 2 (Isolated) |
DC input Voltage - 24V, Current - 1000mA | |
DO | 2 (Isolated) |
Output voltage - under 60 V, current capacity - 500 mA | |
Extra features | |
Power Supply | DC 12V - 36V |
RTC | RTC |
Watch Dog Timer | Stand alone |
Encryption Chip | Atecc608a(optional) |
| Uninterrupted Power Supply | UPS (optional) |
Operation temperature | -20 to +60 °C |
Certification | RoHS, CE, FCC, TELEC, UKCA |
Note
If you want to customize features marked as 'Optional', feel free to email us at [email protected]
Note
4G and LoRa cannot be used at the same time
Part List
EdgeBox-RPI-200-CM4108032 |
x1 |
FAQ
How can I get started with EdgeBox?
You can install the original Debian OS and directly program firmware to support underlying hardware interfaces and drivers. Thanks to the great Raspberry Pi Ecosystem, you can also utilize third-party software like Codesys and Ignition Edge as well as cloud servers like AWS and Azure.
What kinds of 4G and LoRa modules can I use?
You can input Quectel EC20/EC25 module for 4G LTE usage.
You can use Seeed WM1302 module for LoRaWAN applications.
Can I use 4G and LoRa at the same time?
Sorry, this box does not support 4G and LoRa use at the same time.
