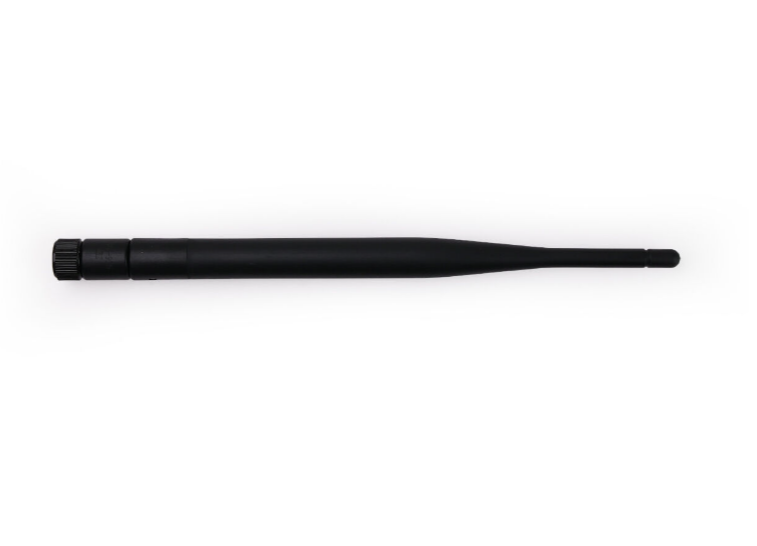

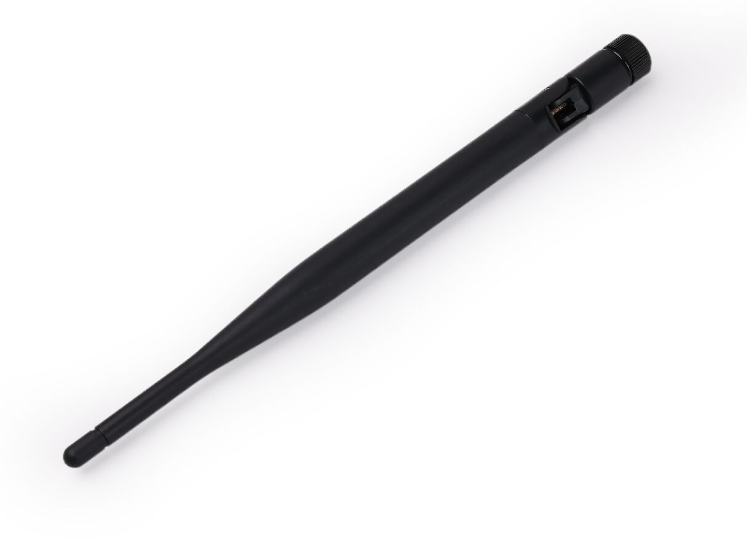

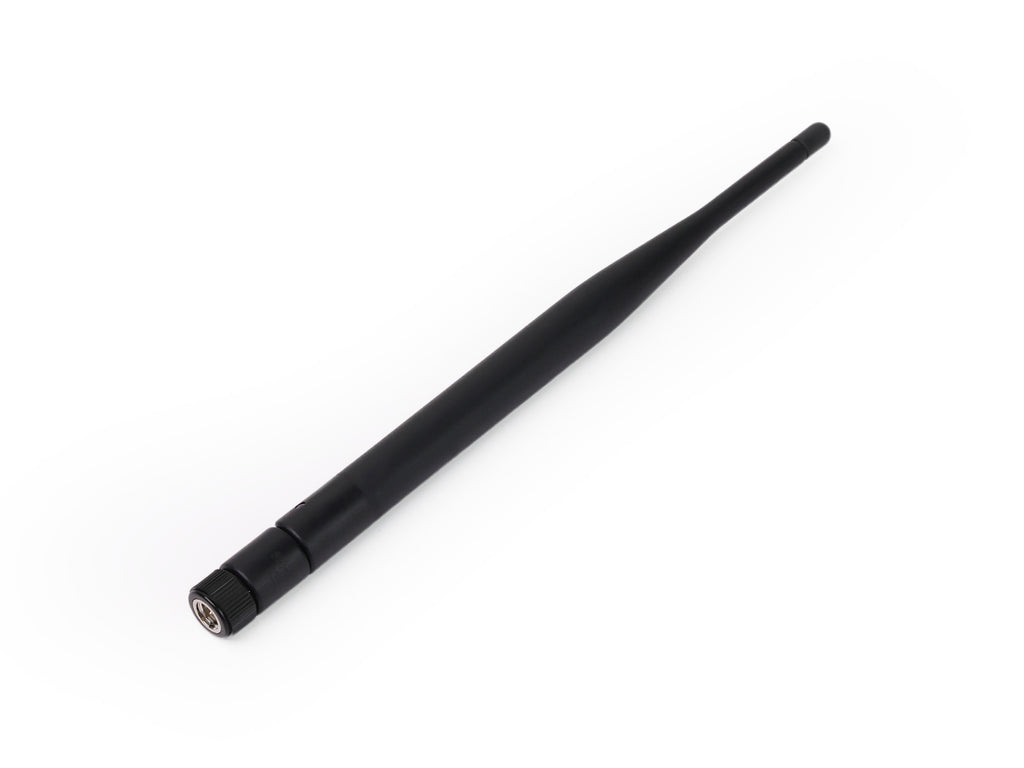

Key Features
- Frequency Range: Full 868-915MHz backward compatibility
- Maximal Gain: 2dBi
- Connector Type: SMA
- Length: 195mm (Foldable)
- Designed for LoRaand other radio equipment
Description
This antenna is certified to work seamlessly with the Wio-E5 Wireless LoRa Module. With a 2dBi gain, it ensures improved signal reception, enhancing both signal strength and reliability. Carefully designed to deliver optimal performance within the 868-915MHz frequency range, its foldable design adds versatility to installation options.
The antenna offers ground-plane independent Omni-directional performance LoRa making it a versatile solution for any number of applications. The efficient element design ensures a high first-time connection rate and an ongoing, robust communications link even in problematic coverage areas.
Application
The antenna can be used in any environment where long-range connections are required.
- Agriculture
- Environmental Monitoring
- Urban Monitoring
Specifications
Electrical Parameters | |
Frequency range | 868-915MHz |
Max gain | 2.0dBi |
Max input power (ambient temp of 25°C) | 10 Watts |
Polarization mode | Linear polarization |
Radiation direction | Omnidirectional |

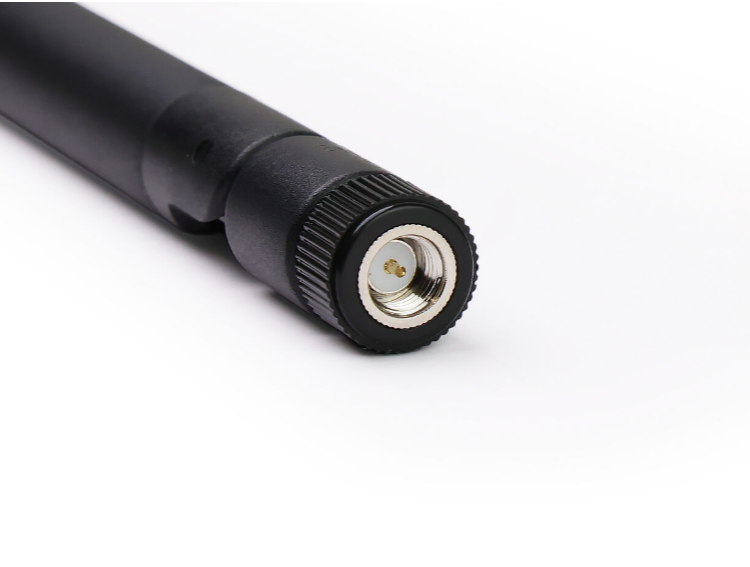

Connector type | SMA Male |
Mechanical Parameters | |

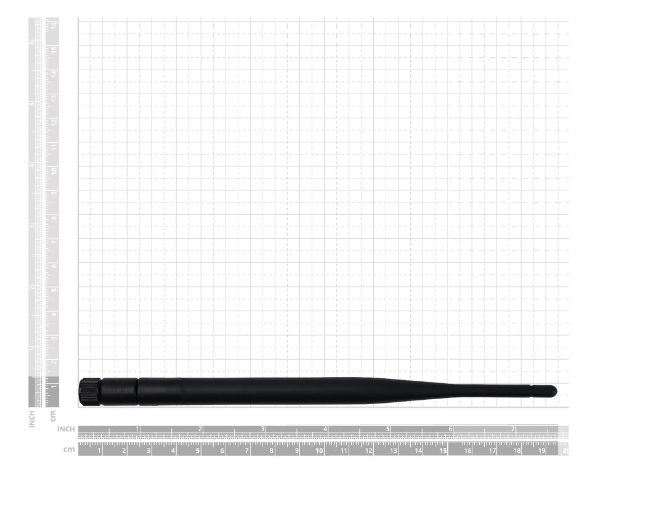

Total length | 195+/-5mm |
Weight | 20g |
Environment Parameter | |
Operating temperature | -30°C to +80°C |
Storage temperature range | -40° C to +85° C |
Hardware Overview
Part List
No. | Category | Quantity |
1 | Antenna | 1 |
ECCN/HTS
| HSCODE | 8517710000 |
| USHSCODE | 8517620010 |
| UPC | |
| EUHSCODE | 8531202090 |
| COO | CHINA |
