Fermion: VL6180X ToF Distance Ranging Sensor (Breakout)

Price:
Sale price A$14.08   Inc. GST
SKU:
DF-SEN0427
30 units Ships in 7 to 10 days

The STMicroelectronics VL6180X Time of Flight Ranging Sensor embeds ST’s patented FlightSense™technology that allows distance to be accurately measured independent of target reflectance. The sensor is rated to perform ranging measurements of 5-100mm, but it can provide readings up to 200mm in a good environment. Besides, VL6180X is also equipped with an ambient light sensor, so basically, this is a sensor that combines proximity ranging and ambient light level measurement capacities into a single package.

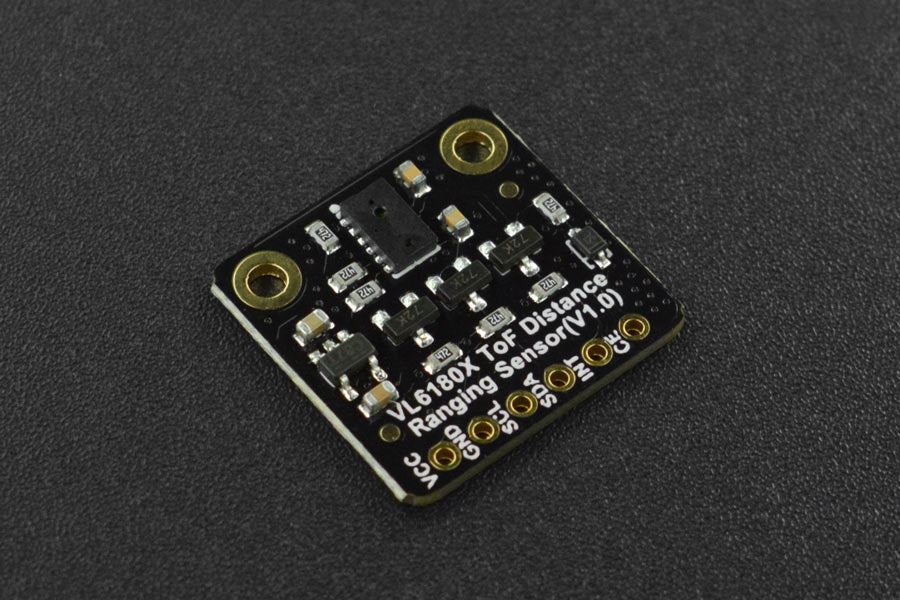

Fermion: VL6180X ToF Distance Ranging Sensor (Breakout)

Connection Diagram

Features:

  • Simultaneous measurement of distance and ambient light
  • VCSEL light source
  • Strong anti-interference
  • Specification:

  • Power Supply Voltage: 3.3V~5V
  • Operating Current: 5mA
  • Measuring Distance: 5-100mm
  • Emitter: 940nm invisible laser (VCSEL)
  • I2C Address: 0x29
  • Operating Temperature Range: -20~85
  • Product Size: 19*18mm / 0.75*0.71 inch
  • Documents:

  • Product wiki
  • Product Includes:

  • Fermion: VL6180X ToF Distance Ranging Sensor (Breakout) x1
  • 2.54-6P Black Single Row Pin Header x1
