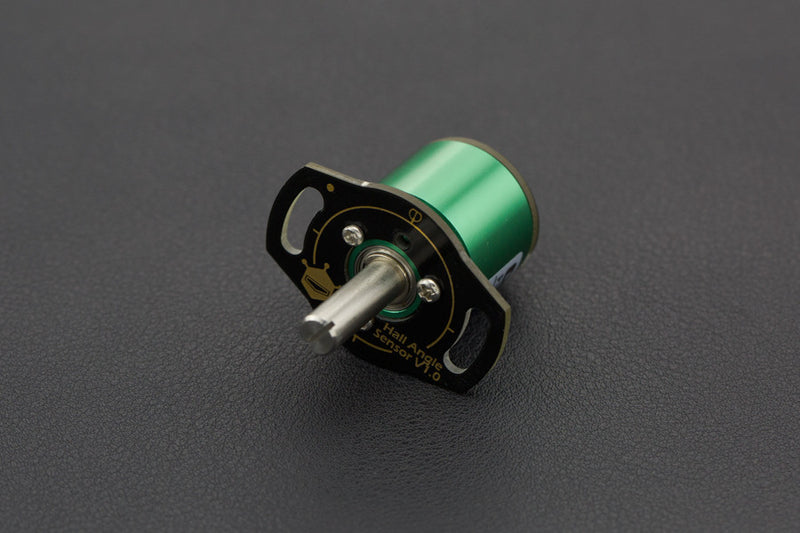

The Hall Angle Sensor is a miniature 360 degree sensor which works based on the principle of the Hall effect. It is compatible with the DFRobot Gravity sensor interface, and works with a 5V DC power supply. The analog output is also 0~5V so it can work directly with Arduino.
The Hall angle sensor works by converting its angle information to an electrical signal. When the rotation angle of the object is passed to the axis of rotation sensors, it outputs an electrical signal that is proportional to the rotational angle.
The angular sensor shell is constructed from robust aluminum alloy, using Hall-type non-contact technology. It includes high-quality imported high-speed stainless steel bearings and other components for reduced frictional resistance when taking readings.
The unit offers a long service life and is compact, with a high resolution, smooth rotation and dynamic noise. This unit is guarantees performance in various harsh industrial environments and is protected from electromagnetic interference, water, oil, vibration and shock. A typical application is crank angle sensing and steering angle measurement.

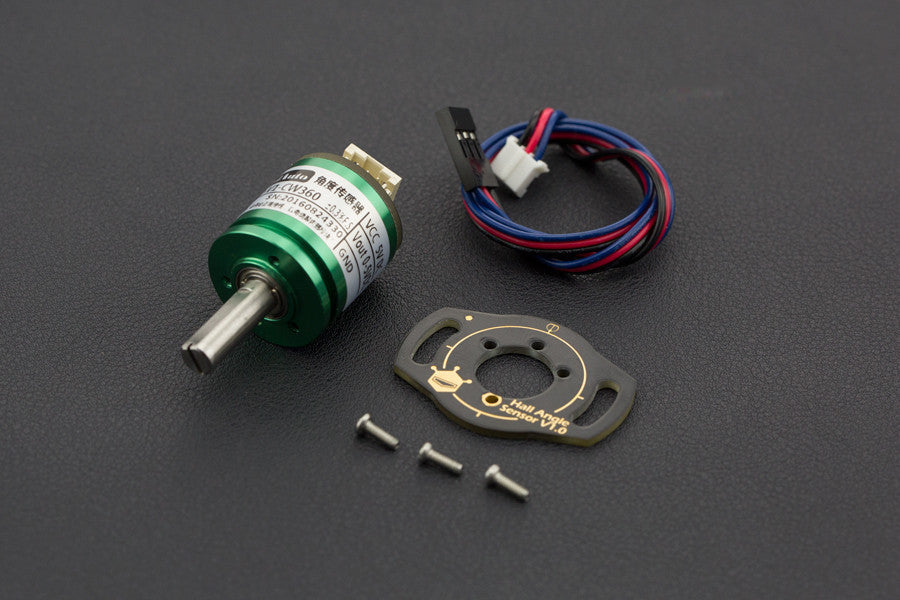

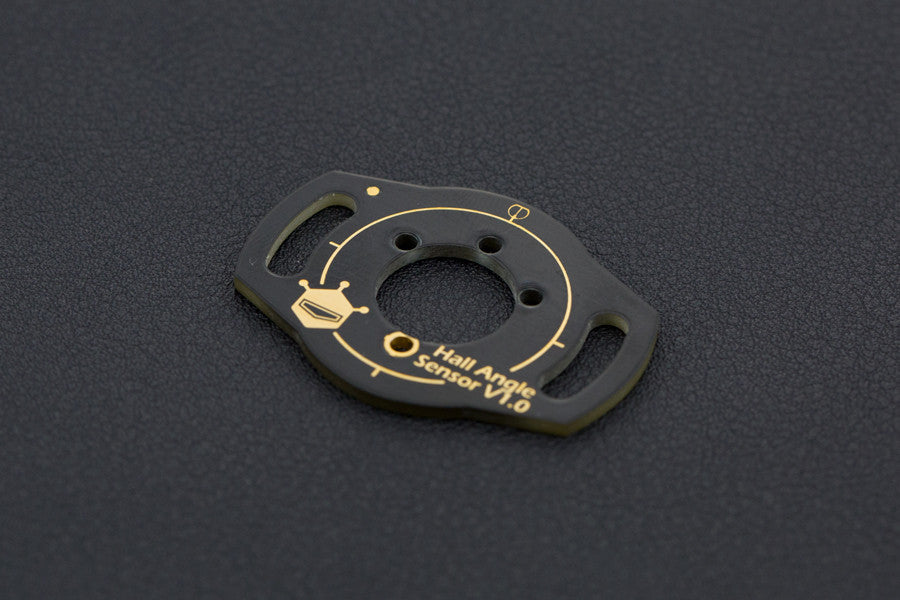

Mechanical Angle: 0 - 360° (Non stop) Operating Voltage: 5V ± 10% Operating Current: <13.5mA Output Signal: 0-5V DC (Ratio) Resolution: 0.088° (12-bit ADC) Accuracy: ± 0.3% FS Output Shaft Dimensions: 6mm (D Sharp) Rotational Torque: <5mN·m Refresh Rate: 0.6ms / 0.2ms (high speed) Operating Temperature: -30 ℃ ~ +80 ℃ Allowable Axial Load: Horizontal <5N; Vertical <10N Protection Class: IP40 Mechanical Life:> 50 million revolutions Weight: 36g Product Wiki More Documents Gravity: 360 Degree Hall Angle Sensorx1 Installation Bafflex1 Gravity Analog Sensor Cablex1 M2x6 Crewsx3

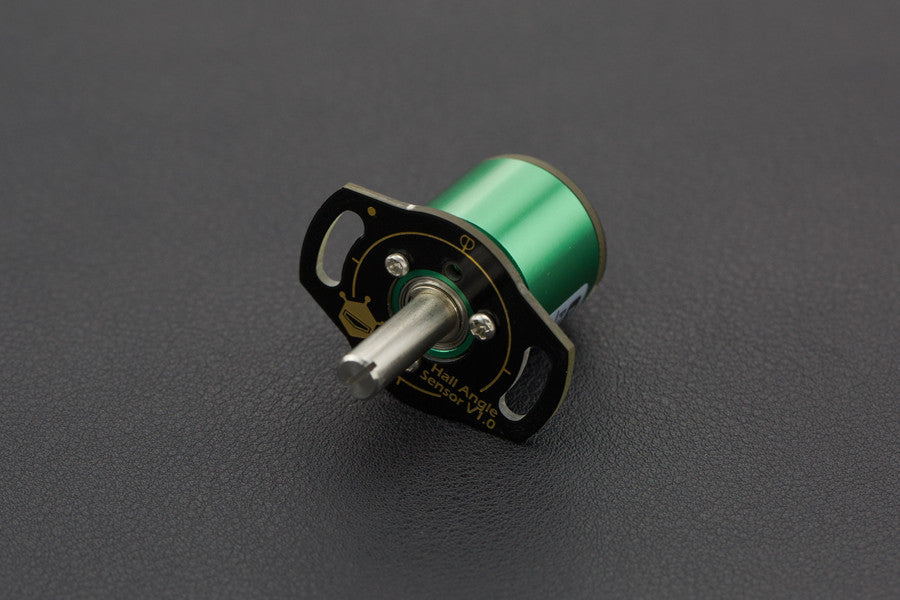

The Hall angle sensor works by converting its angle information to an electrical signal. When the rotation angle of the object is passed to the axis of rotation sensors, it outputs an electrical signal that is proportional to the rotational angle.
The angular sensor shell is constructed from robust aluminum alloy, using Hall-type non-contact technology. It includes high-quality imported high-speed stainless steel bearings and other components for reduced frictional resistance when taking readings.
The unit offers a long service life and is compact, with a high resolution, smooth rotation and dynamic noise. This unit is guarantees performance in various harsh industrial environments and is protected from electromagnetic interference, water, oil, vibration and shock. A typical application is crank angle sensing and steering angle measurement.
Gravity: IO Expansion Shield + Hall Angle Sensor
Specification:
Documents:
Product Includes:
