Gravity: 360 Degree Rotary Encoder Module

Price:
A$19.18   Inc. GST
SKU:
DF-SEN0502
154 units Ships in 7 to 10 days

This looks like a potentiometer, but it’s an encoder switch.

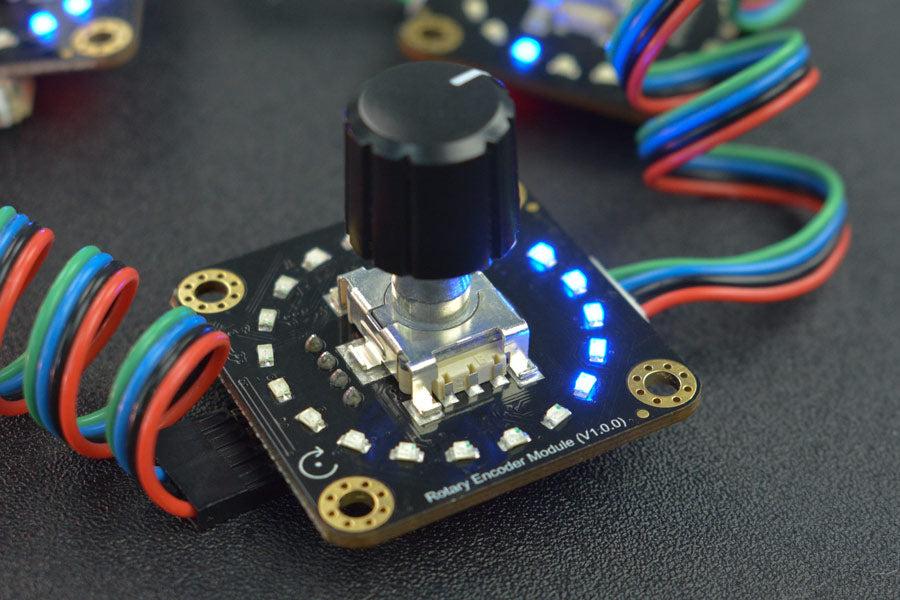

It is a cascadable 360 ° rotary encoder switch with 20 pulses per revolution, and each pulse corresponds to a detent. There are LED lights set for each detent to allow users visually check the real-time status of the encoder.

For ease of use, the module is designed with I2C data output and configurable accuracy within 1~51 for every detent (set in the program). For instance, when it is set to 1, turn on one LED light by rotating 2.5 revolutions;when set to 51, then one LED light can be switched on by rotating one detent.

In order to apply to more scenarios, the encoder is equipped with cascade function that enables to control multiple output devices by occupying only one I2C interface, such as, simultaneously controlling light brightness, color, volume, speed, etc.


Use Case Diagram (Control RGB LED by three encoders)

Gravity: Rotary Encoder Module

Features:

  • Pluggable cascade
  • I2C Data output, forward to increase, reverse to decrease
  • Onboard LED detent indicator
  • Allow setting 4 different I2C addresses by address switch

    • Applications:

    Application Field

  • Automotive electronics
  • Multimedia speaker
  • Instruments and Apparatuses
  • Smart home


    • Application Case

  • Volume adjustment
  • Fire regulation
  • Speed regulation
  • Light adjustment

    • Specification:

  • Operating Voltage: 3.3V~5V
  • Total Rotating Angle: 360°
  • Pulses Per Revolution: 20
  • Interface: two Gravity connectors; I2C
  • Cascadable Device Number: 4
  • Rotation Lifespan: 30000±200 Cycles
  • Contact Resistance: ≤100mΩ
  • Insulation Impedance: 100MΩ above
  • Oscillation: 10ms press
  • Operating Temperature: -30~+80
  • Accuracy: 1~51
  • Minimum Settable Value: 1(Light up one LED when rotating 2.5 turns)
  • Maximum Settable Value: 51(Light up one LED when rotating 1 detent)
  • Storage: 0~1023
  • Dimension: 37*37mm/1.46*1.46”

    • Documents:

  • Product wiki

    • Product Includes:

  • Gravity: Rotary Encoder Module x1
  • Gravity I2C/UART Sensor Connector x1
