Gravity: Analog High Temperature Sensor

Price:
A$25.15   Inc. GST
SKU:
DF-SEN0198
123 units Ships in 7 to 10 days

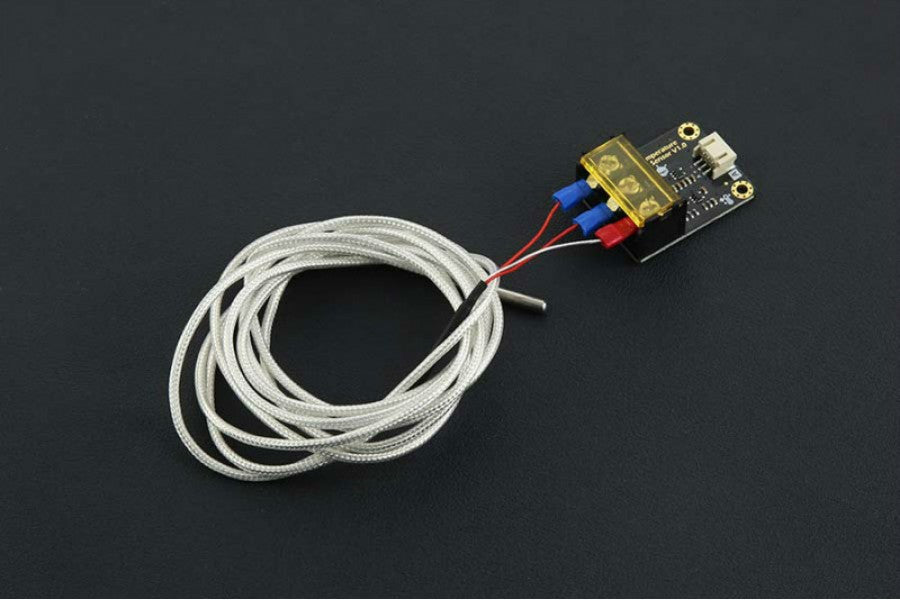

What sensor should you use when you need to measure temperature? Most people will think of a DS18B20 temperature sensor first, but this sensor is only capable of measuring temperatures up to 125C. In order to measure temperatures greater than 100C you will need something with a greater temperature range and resistance. This is the sensor you need! We have used a PT100 resistance type high temperature probe which is often used in industrial applications. Using this probe you can measure a temperature range between 30-350C. The module itself is compatible 3.3V-5.5V supply, so Arduino, STM32 and other microcontrollers are compatible.


Features:

  • Supports 3-Pin "Gravity"
  • interfaceAnalog output

Specification:

1.Module
  • Operating voltage: 3.3V-5.5V
  • Analog output voltage: 0.2V-2.8V
  • Working temperature range: 30-350C
  • Relative Error: ±2% F.S.
  • Interface: PH2.0-3P
  • Size: 42 * 32 * 18 mm/ 1.65 * 1.26 * 0.7 inches
  • Waterproof: No
2.PT100 Probe
  • Probe Working temperature: -20-400C
  • Sheathing Tolerance: up to 200
  • Length: 2m
  • Precision: 0.5C
  • Waterproof: Yes

Documents:

Product Includes:

  • Analog High Temperature Sensor Module x1
  • PT100 Probe x1
  • Analog Sensor Cable x1
