Gravity: Analog SHT30 Temperature & Humidity Sensor

Price:
A$14.08   Inc. GST
SKU:
DF-DFR0588
307 units Ships in 7 to 10 days

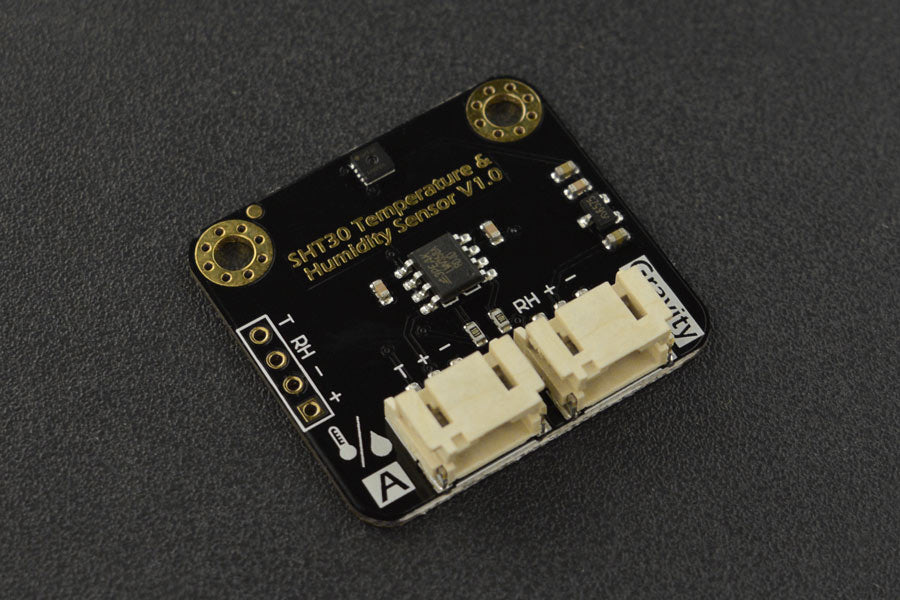

Gravity: Analog SHT30 Temperature & Humidity Sensor adopts the new generation SHT30 temperature and humidity sensor from Sensirion. Thanks to Sensirion's CMOSens® technology, highly integrated capacitive humidity sensing components and band-gap temperature sensing components, the SHT30 offers high reliability and long-term stability with low power consumption, fast response and immunity to interference. The sensor is internally calibrated, linearized and amplified to output analog voltages that are linear with temperature or humidity. It is compatible with 3.3V/5V controllers such as Arduino, micro:bit, ESP32. It is easy to achieve precise and high reliability temperature and humidity sensing for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Things applications.

Connection Diagram


Gravity: Analog SHT30 Temperature & Humidity Sensor connection diagram (Arduino UNO)


Gravity: Analog SHT30 Temperature & Humidity Sensor connection diagram (micro:bit+micro:mate)


Features:

  • Internal auto-calibration, linear analog voltage output
  • High precision, low power consumption, fast response
  • Compatible with 3.3V/5V controller

Applications:

  • Urban Environmental Monitoring
  • Intelligent Building, Home
  • Industrial Automation

Specification:

  • IC (Sensor): Sensirion SHT30
  • Input Voltage (VCC) : 3.3V~5.5V
  • Interface: Gravity Analog (PH2.0-3Panalog voltage output 0.3-2.7V)
  • Quiescent Current: <0.5 mA
  • Dimension: 30×32 mm / 1.18×1.26 in
  • Weight: 3g
  • Temperature Performance
             Range: -40 ~ 125
             Resolution: 0.01 , 14bit
             Accuracy: ±0.2@10~55 (typical), ±1.5@-40 ~ 125 (typical)
             Response Time: >2s

  • Humidity Performance
             Range: 0 - 100 %RH
             Resolution: 0.006 %, 14bit
             Accuracy: ±3 %RH@10~90 %RH (typical)±8 %RH@0~100 %RH (typical)
             Response Time: >8s

Documents:

  • Product wiki
  • More Documents

    • Product Includes:

    • Gravity: Analog SHT30 Temperature & Humidity Sensor x1
    • XH2.54-4P Black Header x1
    • Gravity-3P Analog Sensor Cable x2
