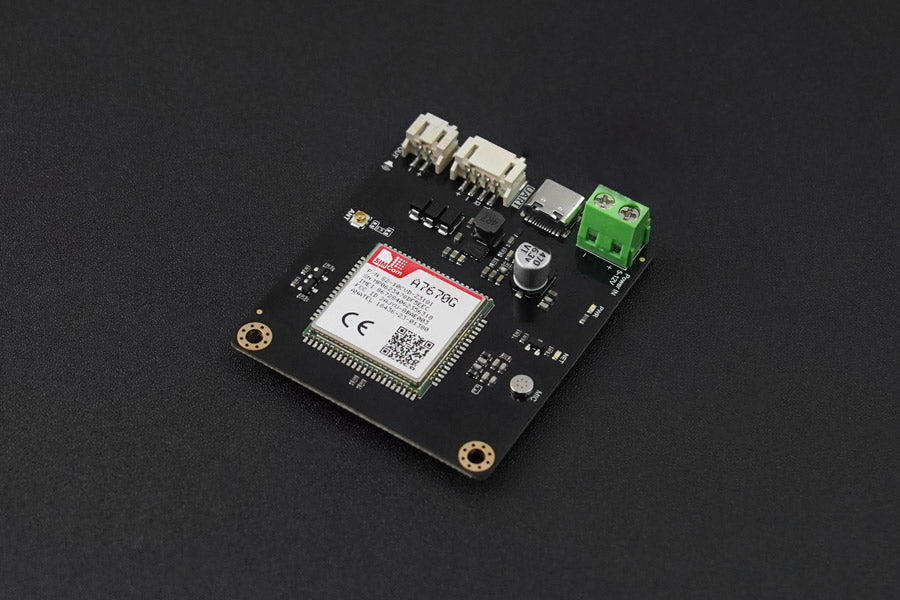

The A7670G is an integrated wireless communication module featuring 4G CAT1 (with an uplinkspeed of 5Mbps and a downlink speed of 10Mbps). It extensively supports multiple bands,including LTE-FDD, LTE-TDD, and GSM, making it suitable for global regions and most operators'networks. The module is compatible with Raspberry Pi, Arduino, and LattePanda single-board computers, and can be used as a 4G network card.
The specific bands areas follows:
Additionally, the A7670G module integrates support for various network protocols includingTCP/IP, IPV4, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS, and more. This allows for complex networkcommunications using AT commands without the need to learn or understand the underlyingnetwork protocols, offering strong compatibility and ease of use.
The A7670G communication module comes equipped with both UART and USB interfaces. It canconnect to other MCUs or main controllers via UART or to computers, Raspberry Pi, etc., as a USBnetwork card through the USB interface. It supports mainstream operating system drivers(Windows, Linux, Android, and other USB drivers).
Furthermore, the A7670G module includes a microphone and audio power amplifier circuit,enabling it not only to function for data transmission but also for making calls and sending textmessages.
The CAT1 SIM7600G 4G Communication Module can be connected to single-board computers like Raspberry Pi, LattePanda, etc., and can be used as a 4G network card for SBCs.
Connection Diagram of CAT1 A7670G 4G Communication Module and LattePanda 3 Delta single board computer
Connection Diagram of CAT1 A7670G 4G Communication Module and Raspberry Pi 5 single board computer
The SIM series wireless communication modules offer multiple products to choose from. Thisseries of 4G products is differentiated by communication rates and satellite positioningcapabilities. Click here to check the selection guide of 4G communication modules.
Functional Diagram of A7670G 4G Module
Connection Diagram of A7670G 4G Module and Arduino UNO
Features:
Applications:
Specification:
TYPE-C: 5V
Physical interface: PH2.0-4P Gravity sequence standard
LTE-TDD: B38/B39/B40/B41
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
GSM: 850/900/1800/1900MHz
Documents:
Product Includes:
