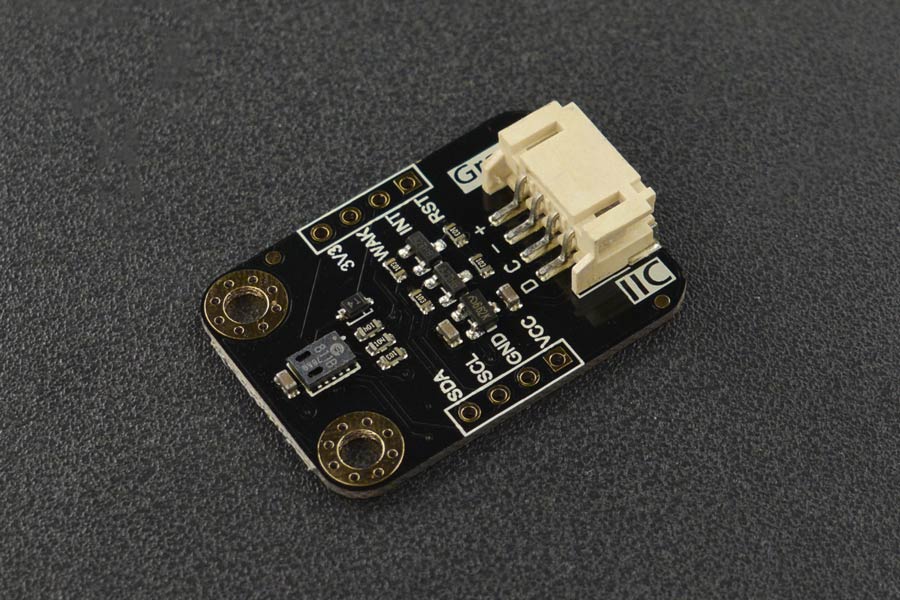

The CCS811 air quality sensor supports multiple modes, such as detect in every second, in every 10s, in every one minute, in every 250ms and sleep mode. These modes are optimized for low power consumption during the sensor measurement, so the CCS811 is also suitable for portable applications.
NOTE: The chip has stretched the clock in IIC. So, it is not compatible with some controllers, such as Raspberry Pi.
Features:
- Short warm-up time
- Low power consumption
- High integrated MCUs and ADCs
- IAQ threshold alert
Applications:
- Air quality detection in cars
- Indoor air quality detections
- Air purifiers
- Smart home
- Ventilation system
Specification:
- Operating Voltage: 3.3V~5.5V
- Current in Sleep: 0.7uA
- Warm-up Time: <15s
- IIC Address: 0x5A (in default) / 0x5B
- Operating Temperature Range: -40~85
- Operating Humidity Range: 0ppb~1100ppb
- Dimension: 22*31mm / 0.87*1.22inch
Documents:
Product Includes:
- Gravity: CCS811 Air Quality Sensor x1
- Gravity-4P I2C/UART Wire x1
- 2.54-4P Black Pin x2
