The module adopts the same high-brightness RGB LED in the traditional RGB LED strip, inheriting its excellent display performance and is fully compatible with the driving circuit or program. This requires little changes for existing programs to shift from RGB LED strip to RGB LED module string. Have fun with this tiny RGB LED module by cool effects of flashing, rainbow, even letters, pictures or animations.

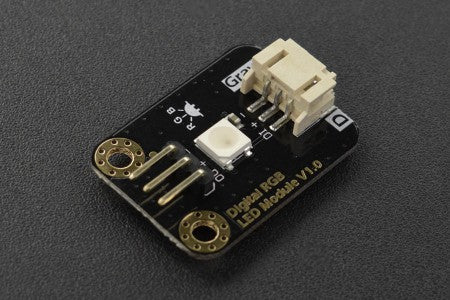

Introducing Digital RGB LED Module from Gravity Series
Connection Diagram
Gravity: Digital RGB LED Module connection diagram (Arduino UNO)
Modules cascading
Features:
- Excellent display performance, quality high-brightness WS2812 REB LED
- Extremely long cascading length, low unit length power consumption
- High compatibility, compatible with 3.3V/5V controller, RGB LED strip drivers or programs
- Standard connector, easy setup without cutting or soldering
Applications:
- Holiday Decorations
- Signal Indicator
Specification:
- LED Type: WS2812 RGB 5050 LED
- Input Voltage: 3.3V~5.5V
- Maximum Current: 48mA
- Quiescent Current: 0.7mA
- Interface: Gravity 3P Digital
- Dimension: 30.0mm*22.0mm / 1.18*0.87 in
Documents:
Product Includes:
- Gravity: Digital RGB LED Module x1
- Gravity 3P Digital Wire x1
