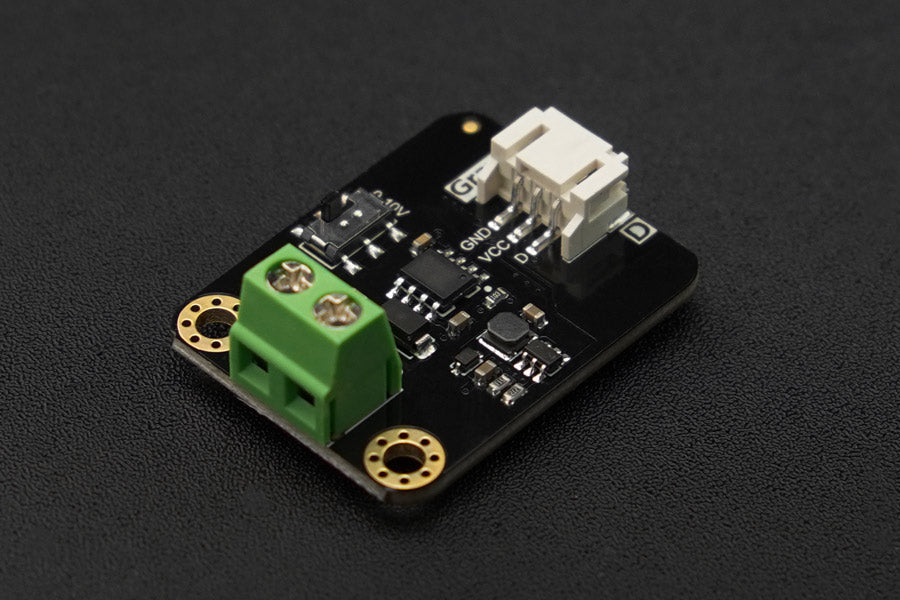

This product is a 1-channel DAC module with PWM communication, featuring an 8-bit resolution and 0.2% accuracy. It can generate standard analog voltage outputs of 0-10V or 0-5V, making it suitable for various automation control scenarios such as lighting adjustment, frequency converters, valve regulation, and pump control. Additionally, it can be programmed through Arduino to drive a variety of 0-10V or 0-5V controlled devices on the market.
The module can be easily controlled by the MCU's digital ports through PWM signal drive, making usage simple and convenient.
The DAC series modules are versatile products that can be controlled via I2C or PWM signals to produce voltage or current output signals. These modules offer various output signal ranges and come in three resolutions: 8-bit, 12-bit, and 15-bit. They can be configured as single-channel or dual-channel and multiple modules can be connected for a multi-channel output.
Functional Diagram of Gravity: GP8101S 1-Channel PWM to 0-5V/10V DAC Module
Wiring Diagram of Gravity: GP8101S 1-Channel PWM to 0-5V/10V DAC Module and Arduino UNO
We provide various models of DAC modules. If you need a different model, please check the selection guide:
Click here to get Selection Guide of DAC Modules
Features:
Applications:
Specification:
Documents:
Product Includes:
