Gravity: I2C BMI160 6-Axis Inertial Motion Sensor

Name: Gravity: I2C BMI160 6-Axis Inertial Motion Sensor
Brand: DFRobot
SKU: DF-SEN0250
Price: 19.184 AUD
Availability: OutOfStock

Title: Overseas stock

Variant

Price:

A$19.18 Inc. GST

Price match

SKU:

DF-SEN0250

Quantity:

238 units Ships in 7 to 10 days

The BMI160 6-axis inertial motion sensor is a new product from DFRobot. It is based on Bosch BMI160 6-axis MEMS sensor which integrates 16-bit 3-axis accelerometer with ultra-low-power 3-axis gyroscope. Bosch BMI160 is designed for smartphones, tablets, wearable devices. It has built-in intelligent step-counting algorithms that can be read directly through registers. Built-in 3-axis acceleration and 3-axis gyroscope can detect running, fitness and other motion. Built-in LDO power management chip, supports 3.2~6V wide voltage power supply, and also has I2C level conversion circuit, compatible with Arduino 3.3V and 5V micro controller.

Features:

Step Count

Acceleration Detection

Inclination Measurement

Display Toggle Horizontal / Vertical Mode

Specification:

Operating Voltage: 3.2V~6V

Current Consumption: <1mA

Interface: Gravity-IIC

Acceleration Range: ±2g/±4g/±8g/±16g

Gyroscopes Range: ±125°/s,±250°/s,±500°/s,±1000°/s,±2000°/s

Acceleration Zero-g Offset: ±40mg

Gyroscopes Zero-g Offset: ±10°/s

Programmable Frequency: 25/32Hz~1600Hz

6D Detection and Location

16-bit Data Output

Shock Resistance: 1000gx 200us

2 Independent Programmable Interrupt Generators

In-built 1024 Byte FIFO

Working Temperature:-40℃~+85℃

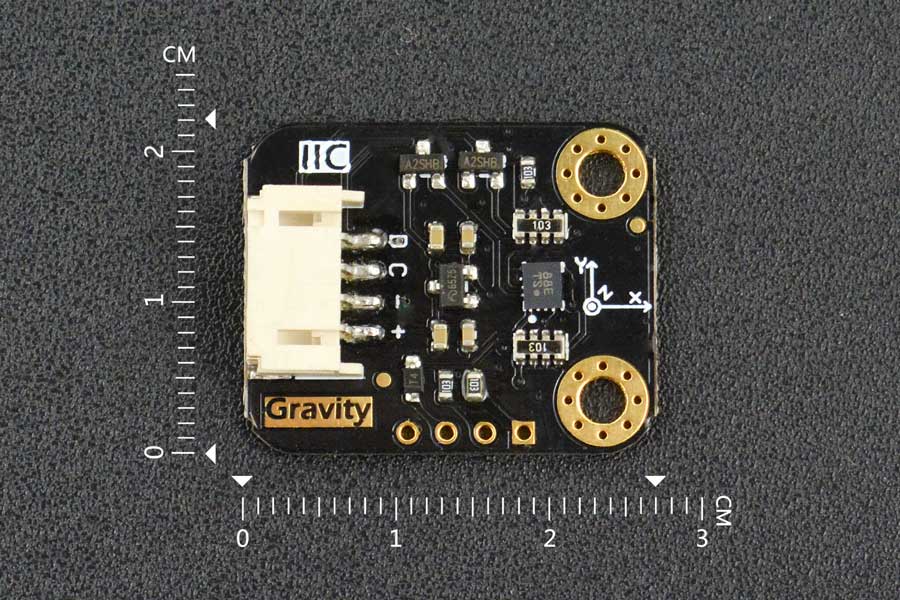

Dimension: 22X27mm/0.87x1.06 in

Documents:

Product wiki

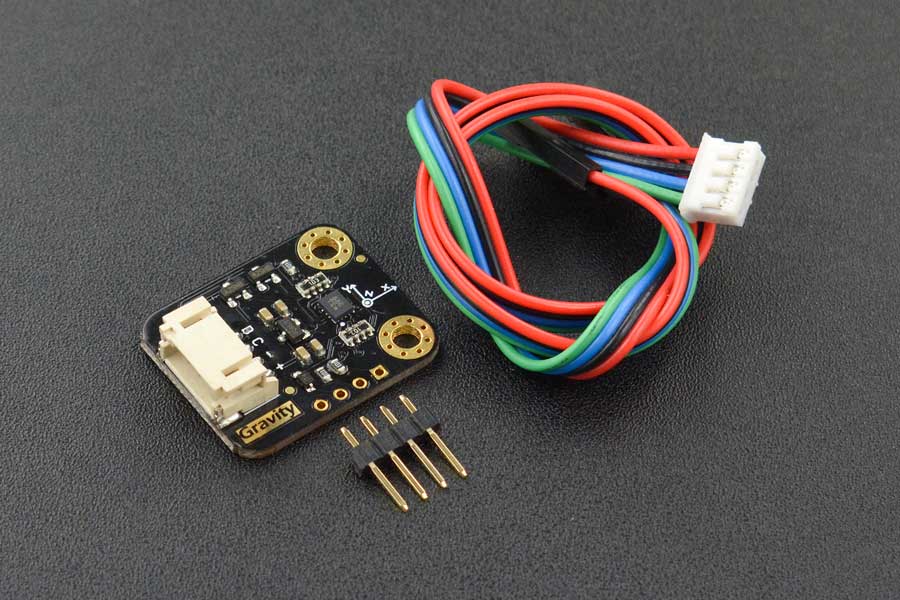

Product Includes:

Gravity: I2C BMI160 6-axis IMUx1

Gravity IIC/UART sensor cablex1

XH2.54 Single Row Pin Header-4Px1
