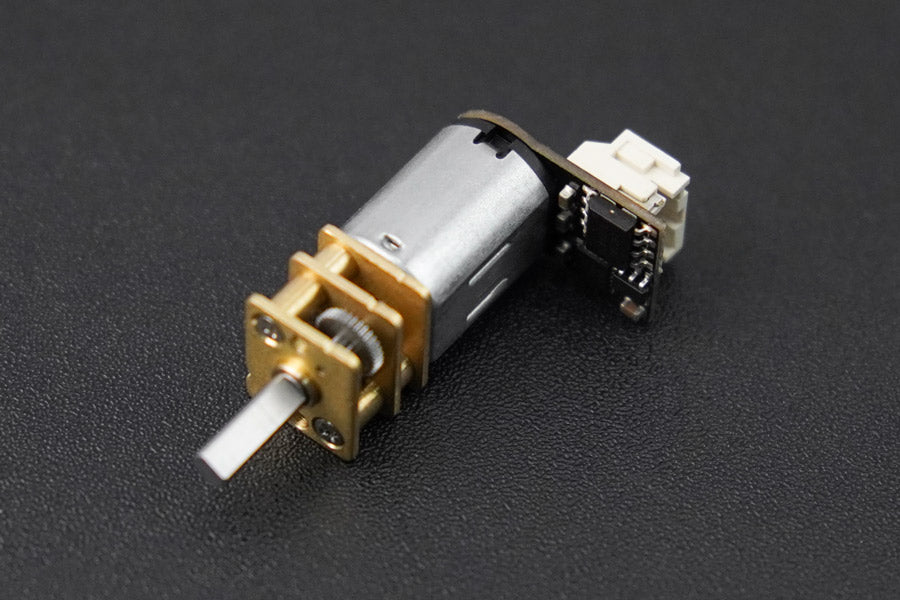

The Gravity: N20 miniature metal motor series, with its integrated drive chip and PWM servo control method, simplifies motor control. Operating within a voltage range of 3V-6V, it offers a variety of gear ratios and output speeds, catering to diverse application scenarios. The all-metal build, compact size, and reliable quality make it ideal for robots, mechanical motion control, valve control, and door lock control.
The single PWM port controls speed and direction, eliminating wiring troubles and simplifying programming. Performance is optimized with reduced standby power consumption and minimal current consumption when no control signal is present.
The motor operates at a speed of 20,000 RPM unreduced, with a gearbox reduction ratio of 150:1 and a no-load output speed of 133 RPM. It features a PPM signal resolution of 1μs and a PWM drive frequency of 500 Hz. Weighing only 10g and measuring L40mm × W12mm × H20mm, it's a compact and efficient solution for various applications.
Other Models: N20 Miniature Metal Motor Series: A Comprehensive Selection Guide
Connection Diagram of Integrated Drive N20 Motor and Arduino UNO R3
Dimension Diagram of Integrated Drive N20 Motor
Features:
Applications:
Specification:
Power Parameters
Motor Parameters
Control Parameters
Other Parameters
Documents:
Product Includes:
