Description

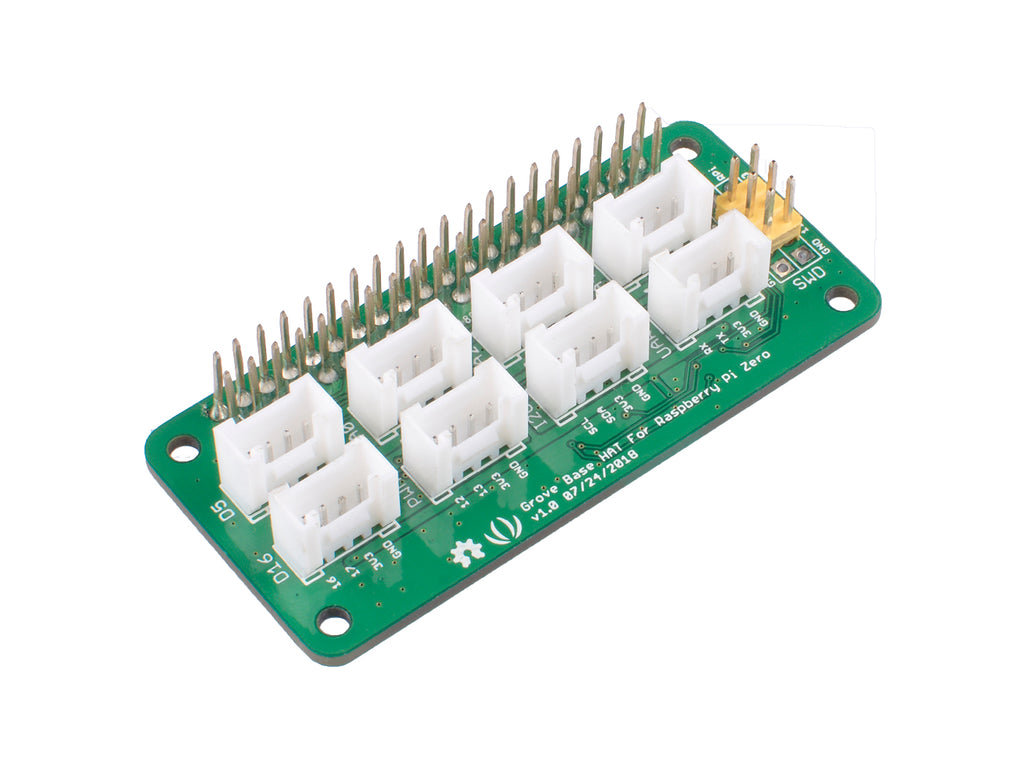

Today, the grove series of sensors, actuators, and displays have grown into a large family. More and more grove modules will join the whole Grove ecosystem in the future. We see the Grove helps makers, engineers, teachers, students and even artists to build, to make, to create...We always feel it is our responsibility to make the Grove module compatible with more platforms. Now we bring you the Grove Base Hat for Raspberry Pi and Grove Base Hat for Raspberry Pi Zero, in another word, we bring the Raspberry Pi the whole Grove System.
The Grove Base Hat for Raspberry Pi Zero provides Digital/Analog/I2C/PWM/UART port to meet all your needs. With the help of build-in MCU, a 12-bit 6 channel ADC is also available for Raspberry Pi.
Frankly speaking, only around 60 Grove modules support the Grove Base Hat for Raspberry Pi Zero now. However, we will continue to add new compatible modules, the more you use, the more grove added.
Attention
This hat do not contain a Raspberry Pi Zero, the second picture is just a connection diagram. If you need one, you can click Raspberry Pi Zero.
Features
Support Raspberry 2/ 3 B/B+ Zero
build-in MCU
12-bit ADC
Multi-type Grove port
Pin Out
Technical Details
| Dimensions | 30mm x 65mm x 0mm |
| Weight | G.W 14.90g |
| Battery | Exclude |
| Operating Voltage | 3.3 V |
| MCU | STM32 |
Part List
| Grove Base Hat for Raspberry Pi Zero | 1 |
ECCN/HTS
| ECCN | Not Available |
