- Color Detection: Measures red, green, blue, and white light components.
- I2C Interface: Easy integration with microcontrollers via I2C for data access.
- Supply Voltage: Operates at 3.3V or 5V.
- Synchronization: Can work with an external pulsed light source for accurate readings.

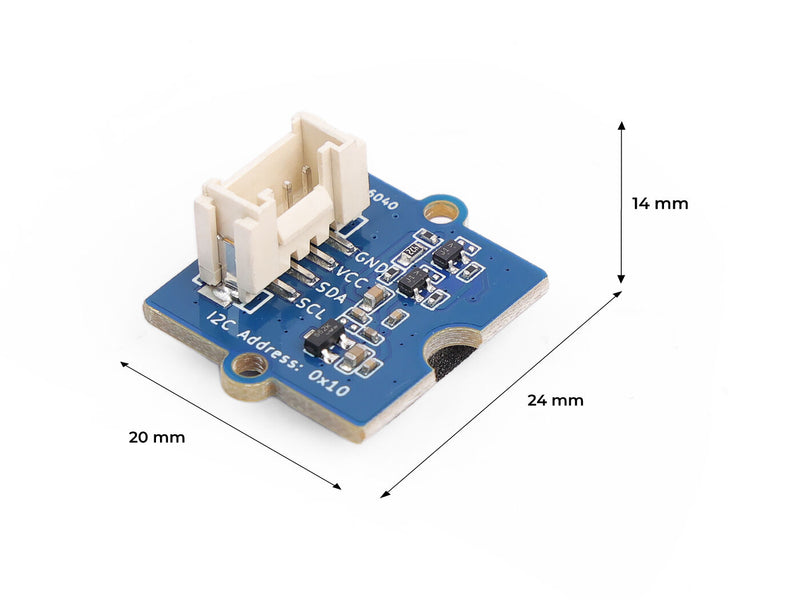

- Compact Design: Small form factor for easy integration into various projects.
- Low Power Consumption: Ideal for battery-operated devices.
Color Channels | Red, green, blue, and clear (white) |
Supply Voltag | 3.3V to 5V |
Interface | I2C |
Resolution | 16-bit color data output |
Operating Temperature Range | -40°C to +85°C |
Current Consumption | 200μA |
Selectable maximum detection range | 515.4, 1031, 2062, 4124, 8248, or 16 496 lux with highest sensitivity 0.007865 lux/step. |
Detection Range | 0-5cm |
- Ambient Light Sensing: Adjusting display brightness based on surrounding light conditions.
- Color Recognition: Identifying and classifying colors in objects for robotics or automation.
- Smart Home Devices: Integrating into lighting systems for color matching and ambient adjustments.
- Photography Equipment: Providing accurate color temperature readings for cameras.
- Wearable Technology: Monitoring environmental light levels for fitness or health tracking.
- Selectable maximum detection range:4, 1031, 2062, 4124, 8248, or 16 496 lux with highest sensitivity 0.007865 lux/step.
314020801_VISHAY_VEML6040A3OG_Datasheet.pdf
Grove - Color Sensor v3.0_SCH_PDF_240428.pdf

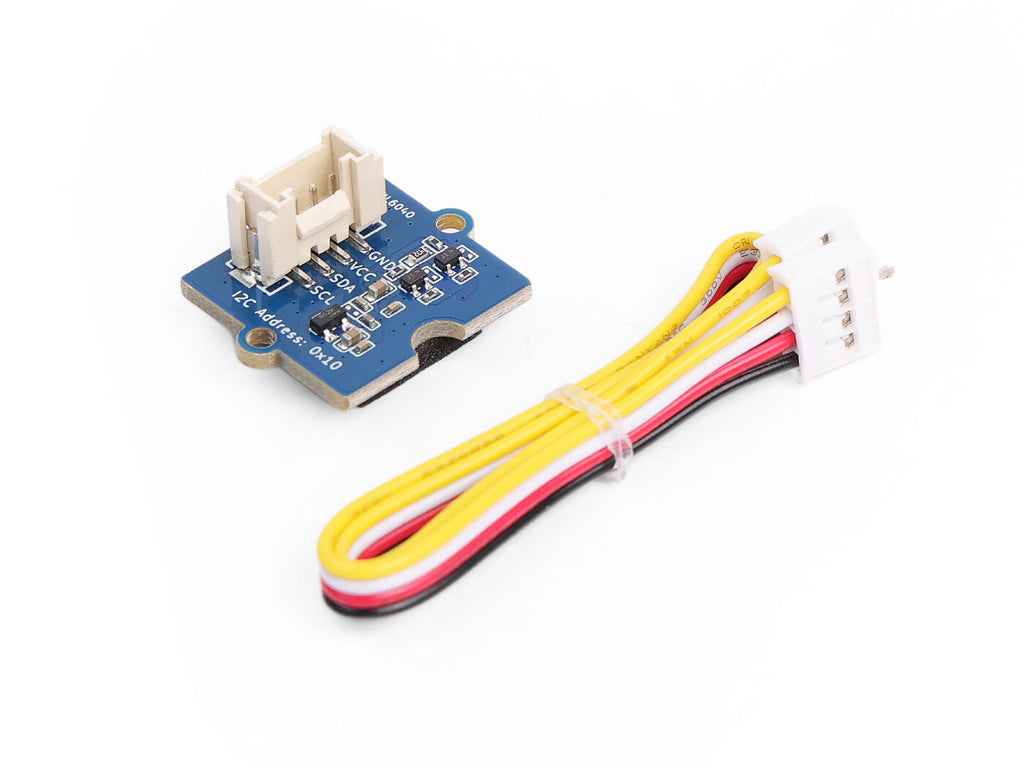

Grove - Color Sensor V3.0 | x1 |
Grove - Cable | x1 |
| HSCODE | 9031900090 |
| USHSCODE | 9026104000 |
| UPC | |
| EUHSCODE | 9013101000 |
| COO | CHINA |
