Description

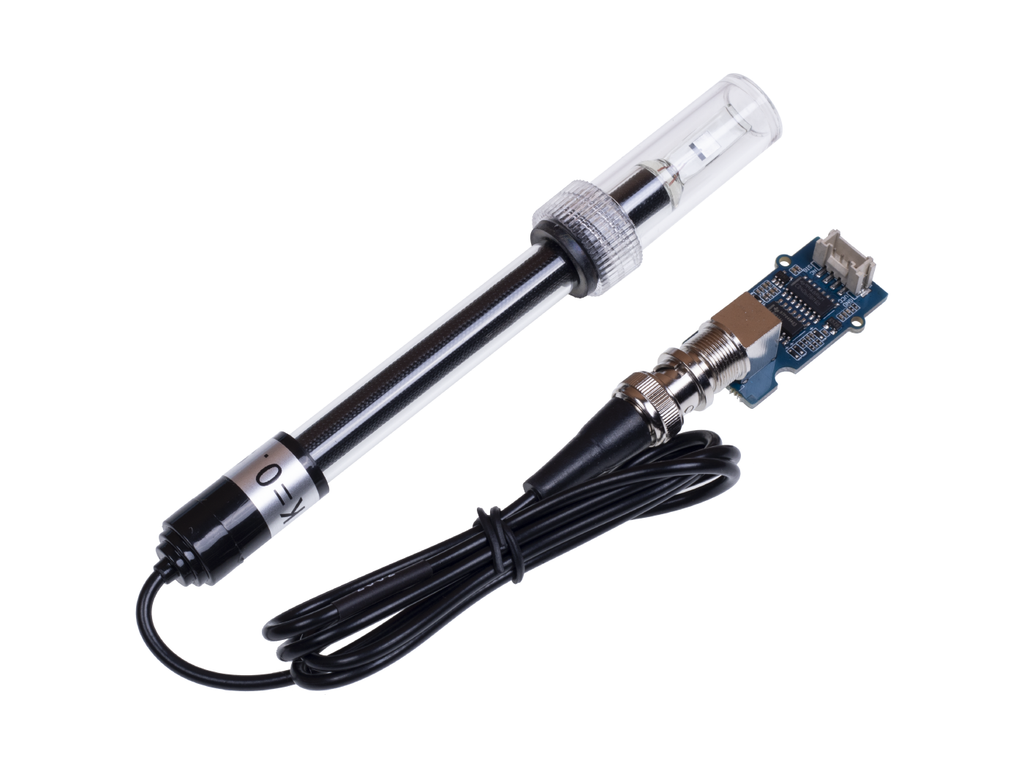

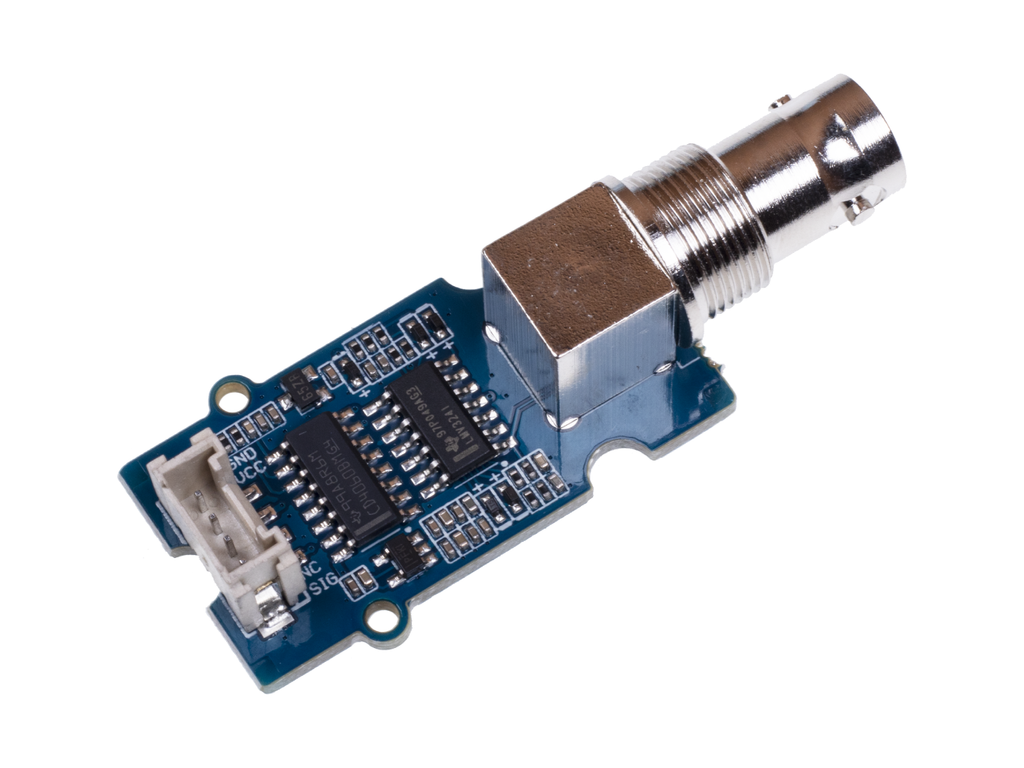

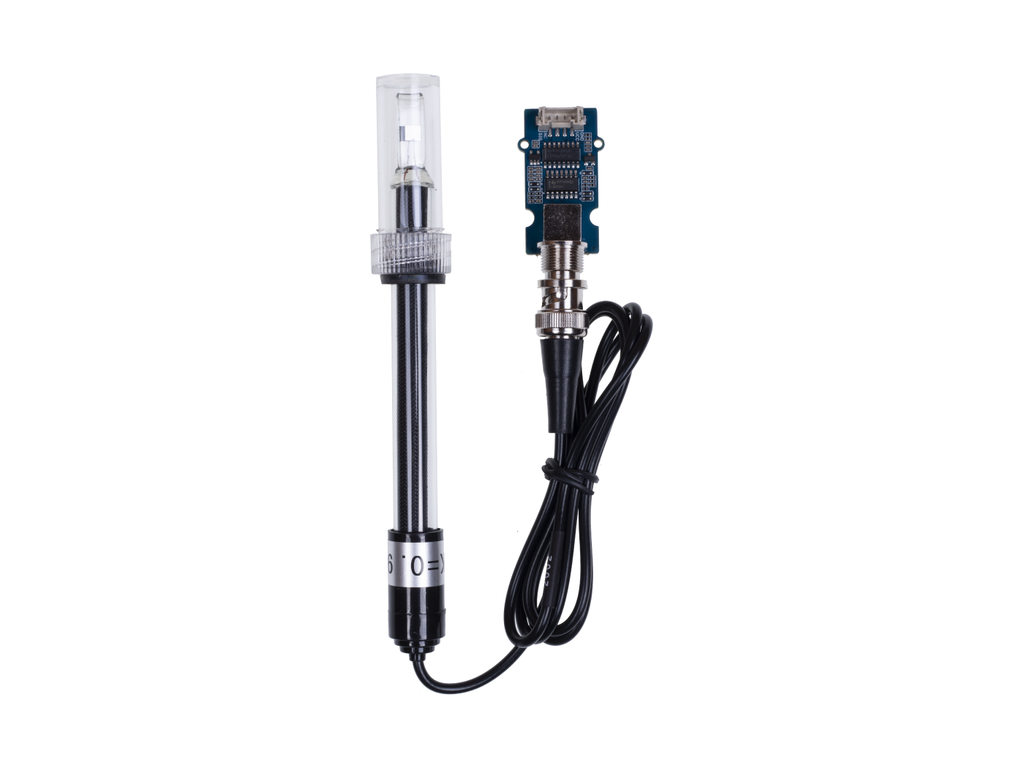

The electrical conductivity sensor (EC sensor) measures the electrical conductivity in a solution which usually used for aquaculture and water quality testing. The Grove - Electrical Conductivity Sensor is specially designed for a low-cost system with a relatively high accuracy which can cover most applications. The Grove connector and BNC probe interface make it easy to use and very suitable for Arduino and Raspberry Pi project. This Kit includes an EC probe and a driver board, and the driver board support both 3.3V and 5V system.
Feature
- Widely used for most applications of aquaculture and water quality testing
- Compact size for easy deployment
- Support with both Arduino and Rasberry Pi
- Cost-effective
Specification
| Items | Values |
|---|---|
| Operating voltage | 3.3V/5V |
| EC Range | 0-2000us/cm |
| Resolution | ±5%(STP) |
| Operating temperature | 5-80℃ |
| Response time | ＜10sec |
| Probe Interface | BNC |
Part list
| Items | Values |
|---|---|
| EC Probe | 1 |
| Driver Board | 1 |
| Grove Cable | 1 |
What is Grove?
Grove makes it easier to connect, experiment, and simplify the prototyping process. No jumpers or soldering required. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfil a variety of needs. Not only are these open hardware, but we also have open-source software.
Note
For all Grove users (especially beginners), we provide you with the guidance of operation. Please read the instructions through the official website before your using the product.
ECCN/HTS
| HSCODE | 9031809090 |
| UPC |
