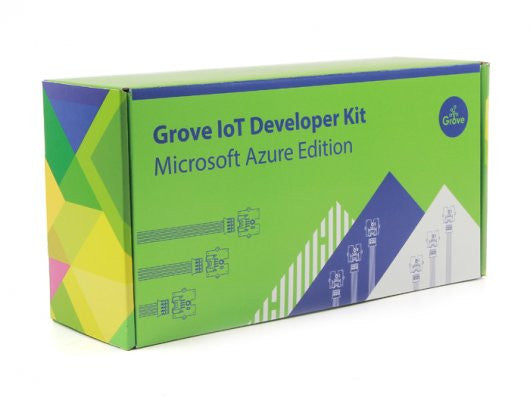

Grove IoT Developer Kit - Microsoft Azure Edition

Description:

Grove IoT Developer Kit – Microsoft Azure Edition contains an Intel® Edison module, an Intel® Edison for Arduino board, a Grove Base Shield, a set of Grove sensors and actuators with build-in Grove ports for rapid prototyping. Simply plug in the modules and you are ready to create.

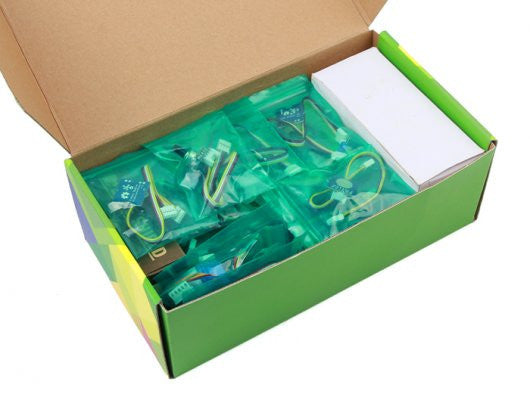

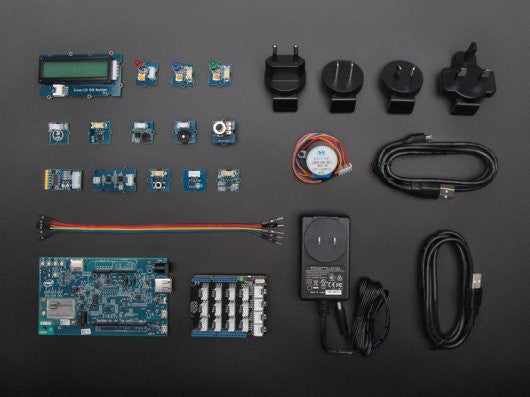

What’s included:

• 1 x Intel® Edison module
• 1 x Intel® Edison for Arduino
• 1 x Grove Base Shield V2

Sensors:

• 1 x Grove- Button
• 1 x Grove – Sound Sensor
• 1 x Grove – 3-Axis Digital Accelerometer(±1.5g)
• 1 x Grove – Touch Sensor
• 1 x Grove – Light Sensor
• 1 x Grove – Temperature Sensor
• 1 x Grove – LCD RGB Backlight
• 1 x Grove – Rotary Angle Sensor(P)
• 1 x Grove – Pieze Vibration Sensor

Actuators:

• 1 x Grove – Buzzer
• 1 x Grove – Green LED
• 1 x Grove – Blue LED
• 1 x Grove – Red LED
• 1 x Stepper Motor Driver
• 1 x Stepper Motor

About Intel® Edison For Arduino:

The Intel® Edison compute module is designed for expert makers, entrepreneurs, and some industrial IoT applications, it provides ease-of-development for a range of prototyping projects or commercial ventures when performance matters. With an expansion board interfaces with a wide range of Arduino shields, Intel® Edison for Arduino allows quick and easy prototyping with open source hardware and a software development environment.

Features:

Intel® Edison module:

• Uses a 22nm Intel® SoC that includes a dual core, dual threaded Intel® Atom™ CPU at 500MHz and a 32-bit Intel® Quark™ microcontroller at 100 MHz. It supports 40 GPIOs and includes 1GB LPDDR3, 4 GB EMMC, and dual-band WiFi and BTLE on a module slightly larger than a postage stamp.
• The Intel Edison module will initially support development with Arduino* and C/C++, followed by Node.JS, Python, RTOS, and Visual Programming support in the near future.
• It includes a device-to-device and device-to-cloud connectivity framework to enable cross-device communication and a cloud-based, multi-tenant, time-series analytics service.
• Has an SD card connector, micro USB or standard sized USB host Type-A connector(via mechanical switch), Micro USB device, 6 analog inputs, and 20 ditial input/output pins, 1x UART, 1x I2C, and 1x ICSP 6-pin header (SPI) Power jack with 7V-15V DC input.

Specification:

• Physics
  • Form factor: Board with 70-pin connector
  • Dimensions(Intel Edison module): 32.5 x 25.0 x 3.9 mm
  • Dimensions(Intel Edison for Arduino): 127.0 x 72.0 x 12.0 mm
  • Operating temperature: 0 to 40 degC
  • Connector: Hirose DF40 Series (1.5mm, 2.0mm, or 3.0mm stack height)
• Memory
  • Max Memory size: 4GB
  • Memory type: DDR3, Nand Flash
  • Physical add. Ext.: 32-bit
  • # of DIMMs: 0
  • ECC Memory supported: NO
• External Interfaces
  • Total of 40 GPIOs which can be configured as:
  • SD Card: 1 interface
  • UART: 2 Controllers
  • I2C: 2 Controllers
  • SPI: 1 Controller with 2 chip select
  • I2S: 1 Controller
  • GPIO: Additional 12 (with 4 capable of PWM)
  • USB2.0: 1 OTG Controller
  • Clock Output: 32 KHz, 19.2 MHz
• Major Edison Components
  • SoC: 22nm Intel SoC includes: a dual core, dual threaded Intel Atom CPU at 500MHz, and a 32-bit Intel Quark microcontroller at 100 MHz
  • RAM: 1 GB LPDDR3 POP memory
  • Flash Storage: 4 GB eMMC
  • WiFi: Broadcom 43340 802.11 a/b/g/n, Dual-band (2.4 and 5 GHz), On board antenna or external antenna SKU configurations
  • Bluetooth: BT 4.0
• Power
  • Input: 3.3V – 4.5V
  • Output: 100ma @3.3V and 100ma @ 1.8V
  • Power: Standby (No radios): 13mW, Standby (BT 4.0): 21.5mW, Standby (WiFi): 35 mW
• Firmware + Software
  • CPU OS: Yocto Linux v1.6
  • Development Environments:
  • Arduino IDE, Eclipse supporting: C, C++ & Python, Intel XDK supporting: Node.JS & HTML5
  • MCU OS: RTOS
  • Development Environments: MCU SDK and IDE

Tech Document:

• Intel Edison Product Page
• Intel Edison Product Brief
• Getting Start
• Software Download
• Forum
• Support

Related Products:

• Intel® Edison Module
• Intel® Edison Breakout kit
• Intel® Gelileo
• Intel® Gelieo Gen 2
• USB Console Adapter for Intel Galileo
• Grove starter kit plus – Intel IoT Edition for Intel Galileo Gen
• Grove starter kit plus – Intel IoT Edition for Intel Galileo Gen 1
• Galileo Case

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
