Feature
- Easy-to-use vision-based Camera: Perform full function and display in a second by the AI camera
- Compact AI-powered Camera Sensor: Apply Edge Machine Learning algorithm in one thumb-sized camera perfectly for detecting objects
- Ultra-low Power consumption: Activatewhile detected objects moving for power saving
- Customized Sensor Design: Support custom ML models by users' definition
- Two Signal Transmission Supported: Refer to Seeed Studio XIAO family elegant connecting and Grove base for Arduino/Raspberry Pi simple connection
- One wire for all data output: Represent Grove family simplified connection for only one Grove cable required between the sensor and the single board
Description

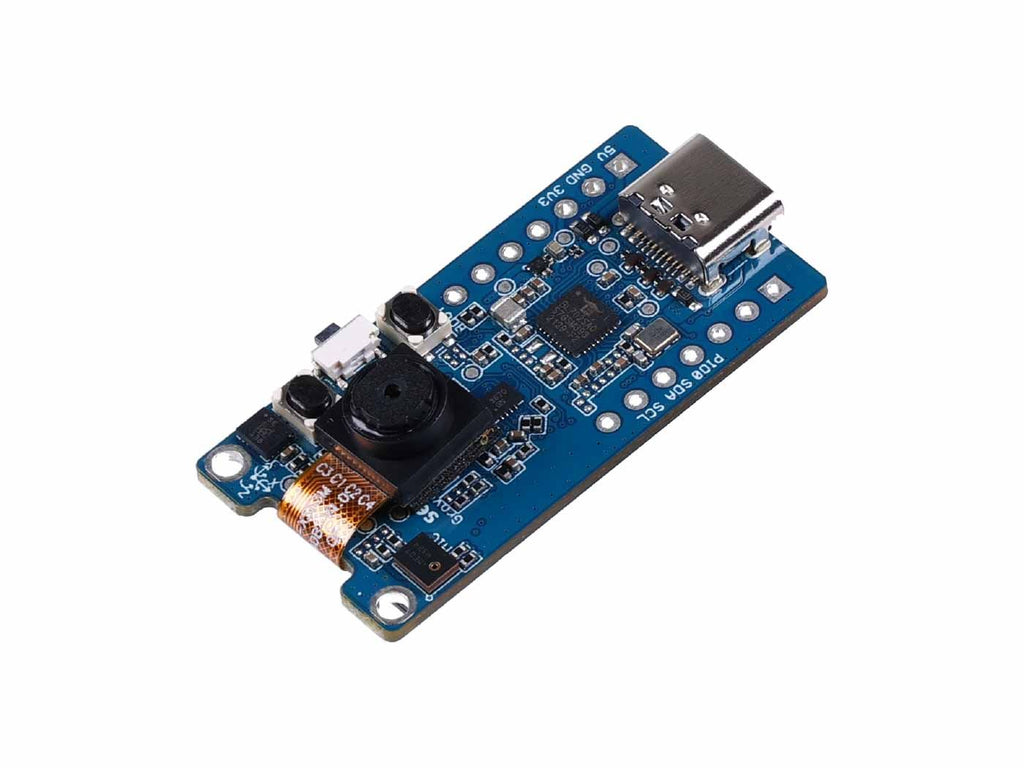

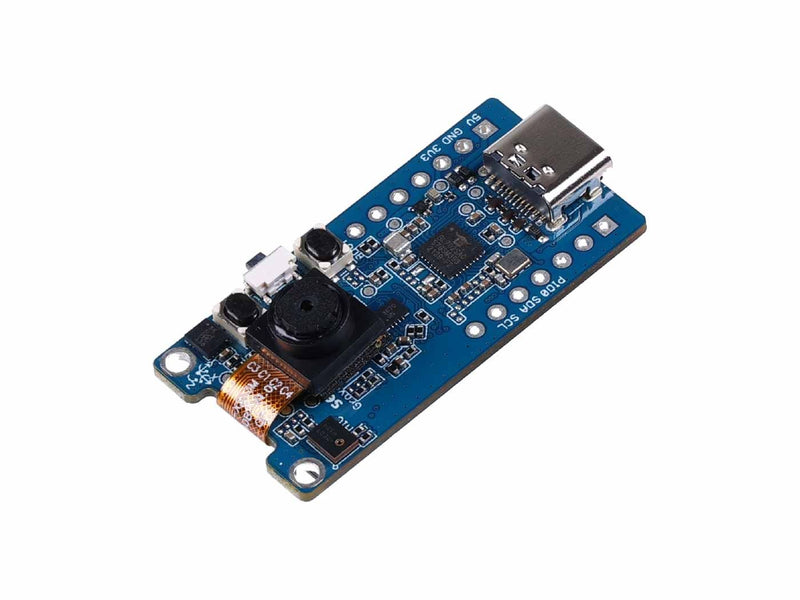

Grove Vision AI Module Sensor represents a thumb-sized AI camera or a compact Vision Sensor, as it can be easily deployed and displayed within a minute. It works under an ultra-low power consumption model and provides two signal transmissions, where you can connect elegant Seeed Studio XIAO family or simply link Grove base for Arduino/Raspberry Pi. It is a small and great assistant for your object detection projects, suitable for different types of detection and it can be customized by your definition.
Artificial Intelligence camera(AI camera) is the enhanced camera powered by a build-in Edge Machine Learning algorithm, smartly processing with computational photography, performing enhanced object detection in real-time. It has been widely used in smartphones for face recognition, edge devices for wild object detection, and other Edge detected Intelligence applications.
This compact camera sensor will be the perfect module for you to get to know the AI-powered camera. It has been pre-installed with three ML classification algorithms and one pre-trained model that allows you to detect faces and people immediately. For knowing better, it has been designed as a customized sensor that offers you to choose the objects you want to detect and apply them for your further projects. This is the new member of the Grove family, imagine giving sight to devices.
Application
- People Detection
- Customized Objects Detection
- Smart Doorkeeper
- Fall Detection & Alarm
- Face Recognition
Specification
| Characteristic | Value | Unit |
|---|---|---|
| Operating Voltage | 5 | V |
| Rate | 115200 | |
| I2C Interface | Seeed Studio XIAO & Arduino | - |
| Power Supply | dual 7-pin connector & Type-C | - |
| Downloading & Firmware Burn Interface | Type-C | - |

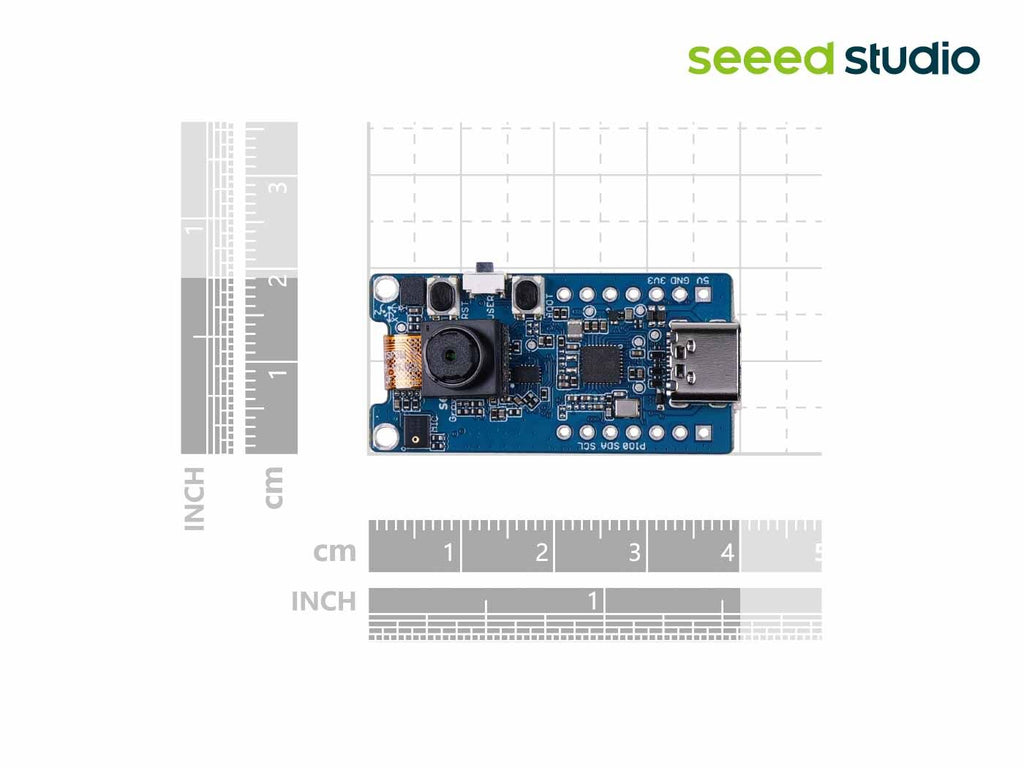

| Dimensions | 40 * 20 * 13 | mm |

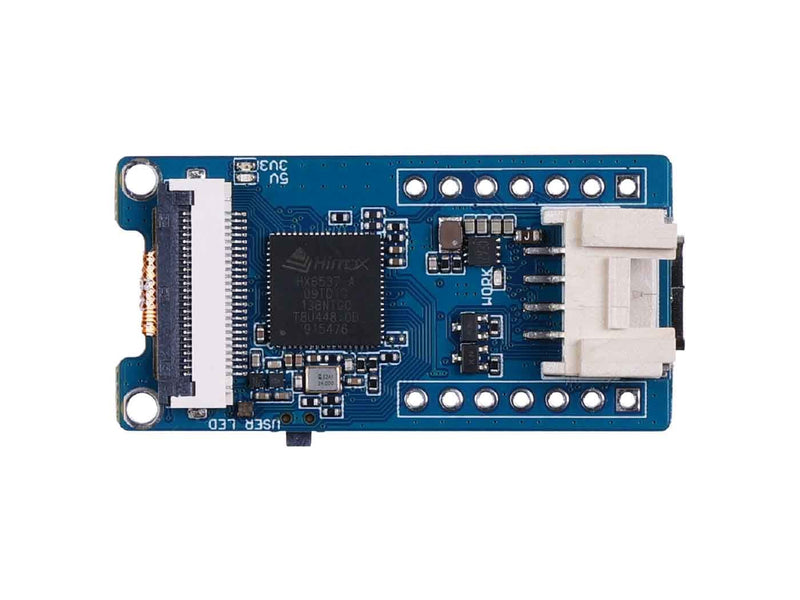

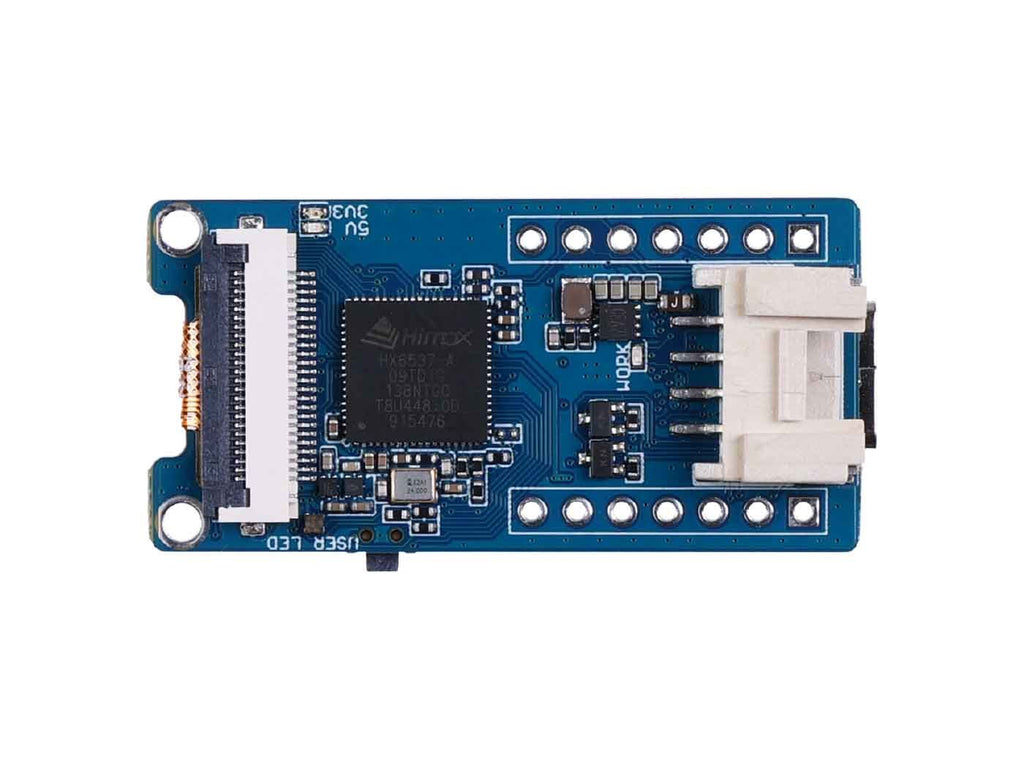

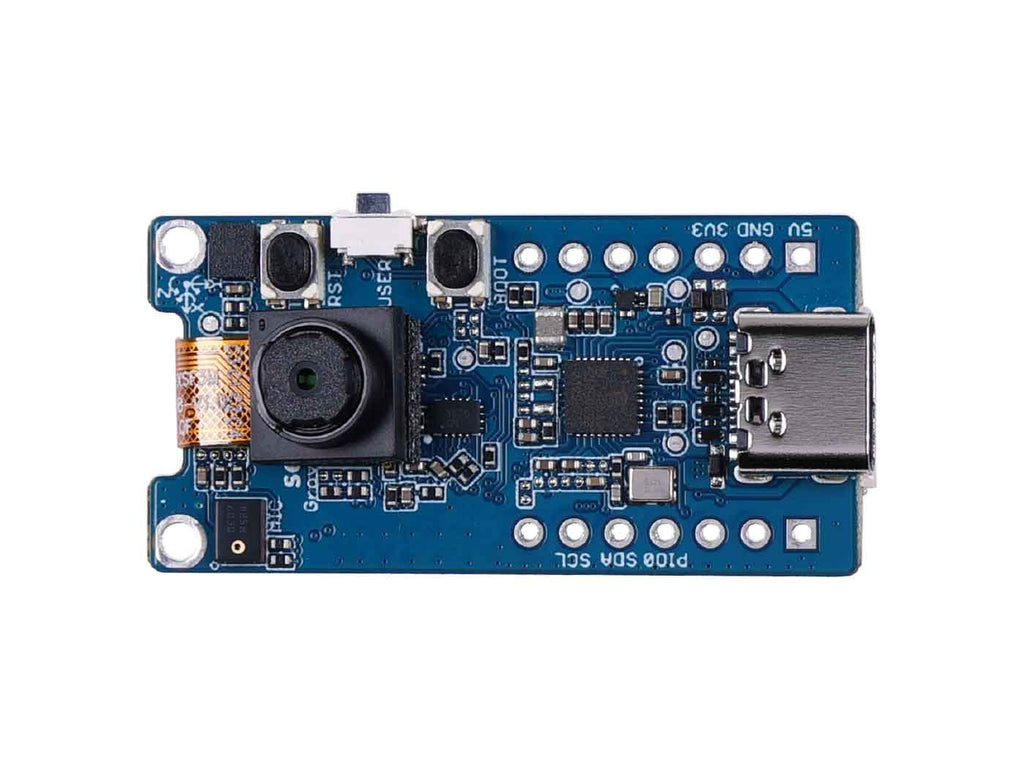

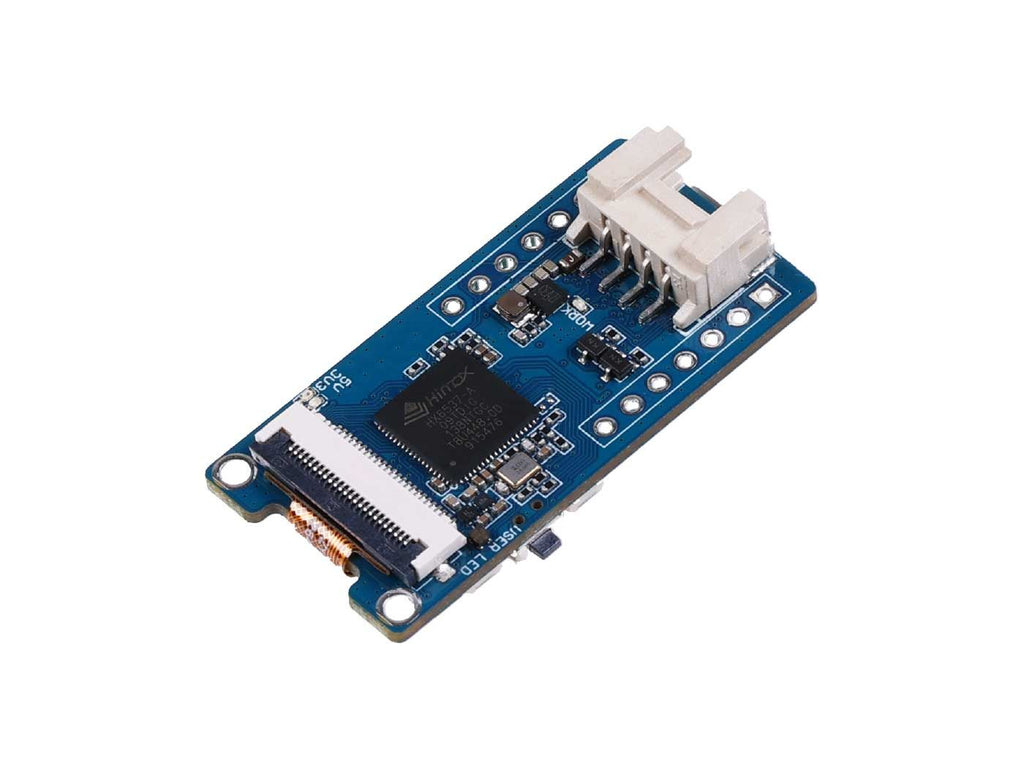

Hardware Layout
| Connector | Grove (Grove base for Arduino) | 5V Charge and Data Transmission |
|---|---|---|
| Double row 7pin socket (Seeed Studio XIAO) | 5V Charge and Data Transmission | |
| USB Type-C | 5V Charge and Firmware Burn | |
| Communication Mode | IIC | |
| Processor | Himax HX6537-A | 400Mhz DSP (ultra low power consumption) |
| Camera Sensor | OV2640 | Resolution Ratio 1600*1200 |

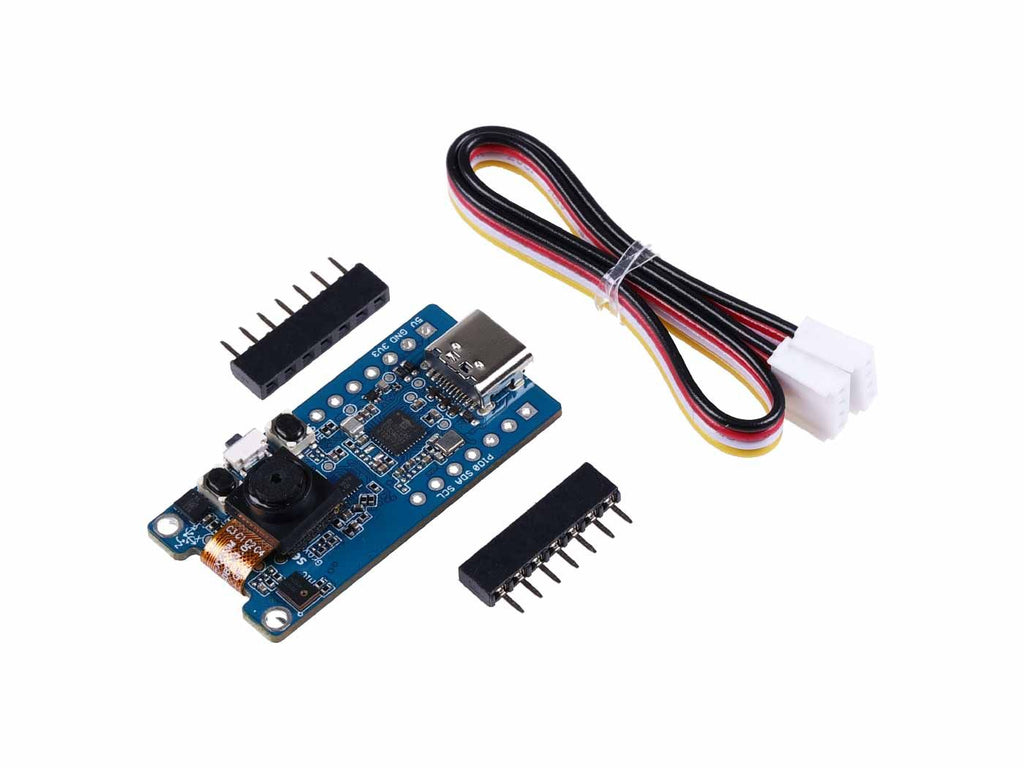

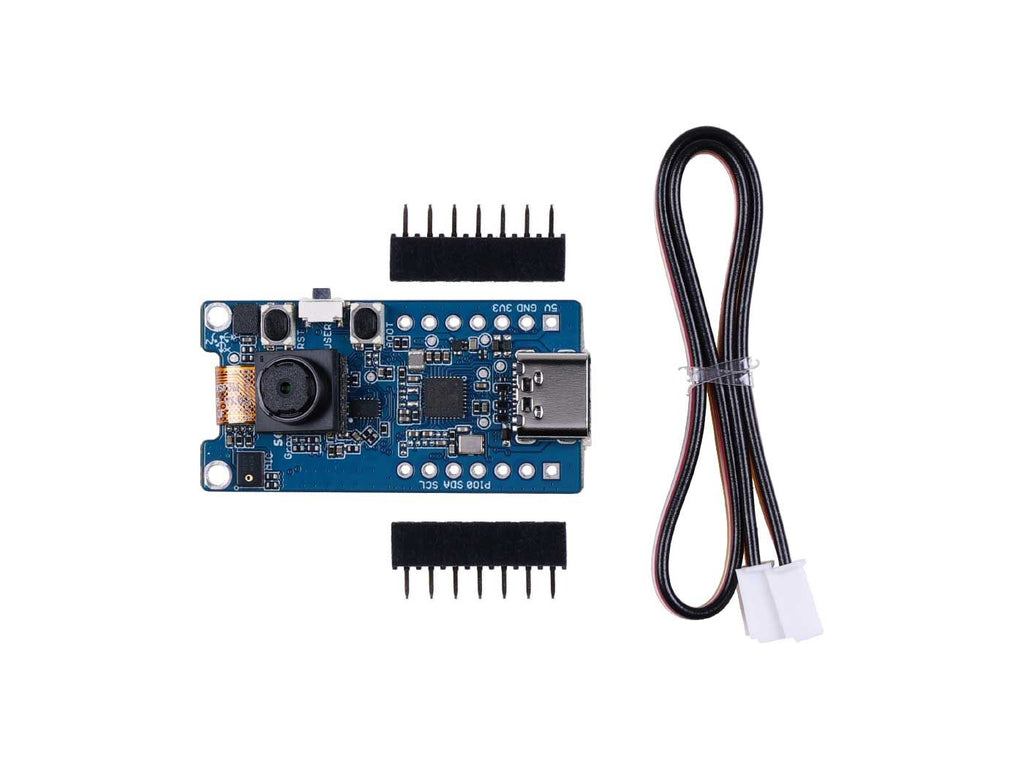

Part List
1x Grove - Vision AI Module
1x Grove Cable
ECCN/HTS
| HSCODE | 9031900090 |
| USHSCODE | 9031808070 |
| UPC |
