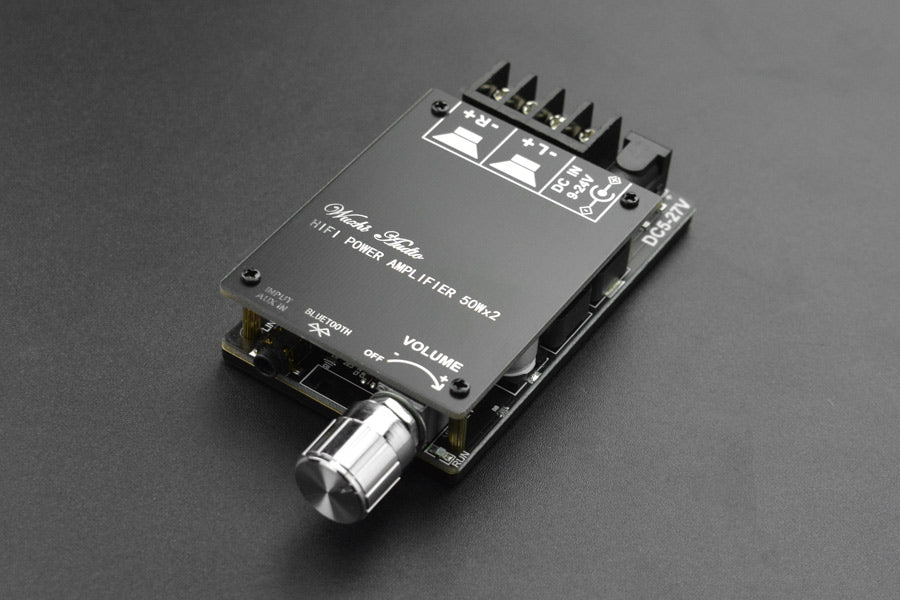

Does sound quality matter to you? If Yes, then come to take a look at this HIFI Bluetooth Power Amplifier board! With AM interference suppression and filtering function, the board THD can be as low as 0.1% even when working for a long time at large power output, while bringing you very round and clear sound. It features 50W output power, volume adjustment knob, AUX+Bluetooth 5.0 input, dual-channel output, and DC5-27V operating voltage. This Bluetooth Power Amplifier board works well with 4~8Ω, 30W-200W passive speakers. You can connect it to Raspberry Pi, mobile phones, and other main-controllers with Bluetooth to DIY your projects.
The board comes with bottom/top protective panels and supports protection mechanisms including overvoltage, undervoltage, overheating, short circuit protection, and DC detection.
Operation Instruction
Connect the board with a speaker, power it on. Rotate the knob then the indicator led lights up. Turn on the Bluetooth of your phone or Raspberry Pi, the” BT-WUZHI” will be searched, and then click to connect it. It connects successfully with a prompt tone, and now it can play music. The Bluetooth will be reconnected automatically when the module is powered on next time.
Note:
The board will output adequate power only when the audio input and power source voltage/current are sufficient. The higher the power supply voltage, the larger the output power. Besides that, speaker impedance also changes the amplifier board power output. Please note that in the case of enough voltage and current, the larger the speaker impedance in ohms, the smaller the output power.
Specification:
- Power Supply: 5-27V
- Input: AUX+Bluetooth 5.0
- Audio Quality: HIFI
- Output Power: 50W*2
- Compatible Speaker: 30W-200W, 4Ω-8Ω
- Channel: left/right channel (Stereo)
- Bluetooth Transmission Distance: 15m (Without any obstacle)
- Protection Mechanism: overvoltage, undervoltage, overheating, short circuit protection, and DC detection
- Power Voltage:
15V----8Ω/18W+18W4Ω/>30W+30W
19V----8Ω/32W+32W4Ω/>45W+45W
24V----8Ω/38W+38W4Ω/>55W+55W
Product Includes:
- Reviews
- Questions
AustraliaReview
When I finally got around to trying it out, it worked fine, trivial to set up in fact. I wouldn't buy another one however for the reason that there seems only to be one bluetooth name for this product. I had in mind a stereo pair of speakers, each with a bluetooth receiver, so that I didn't have to run a cable between the two.
