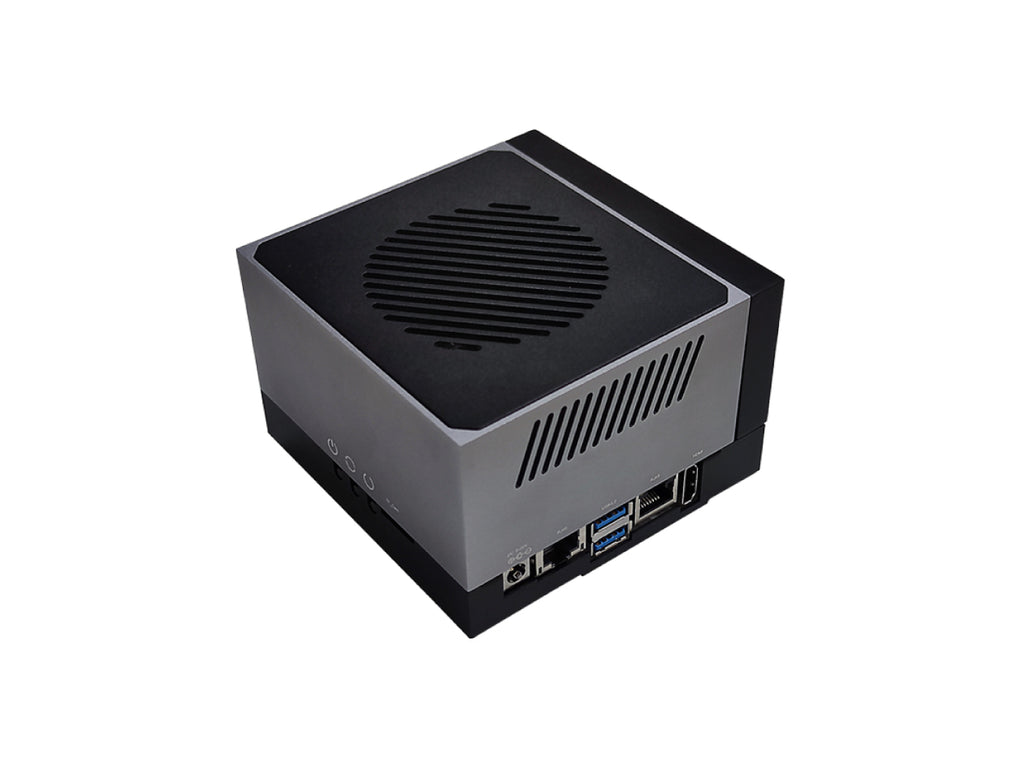

Jetson AGX Orin 32GB H01 Kit is a powerful and compact intelligent kit to bring up to 200 TOPS modern AI performance to the edge, which offers up to 10X the performance of Jetson Xavier NX and up to 6X the performance of Jetson AGX Xavier. Combining the NVIDIA Ampere™ GPU architecture with 64-bit operating capability, AGX Orin integrates advanced multi-function video and image processing, and NVIDIA Deep Learning Accelerators.
The full system includes one Jetson AGX Orin™ production module, a heatsink with a cooling fan, a case, and a power adapter while being an alternative option for the Jetson AGX Orin Dev Kit. It has a carrier board including PCIe X16, GbE, 10GbE, 3x USB 3.2, HDMI 2.1, M.2 Key M, M.2 Key E, 2.4/5GHz Wi-Fi, Bluetooth, 16 lane MIPI CSI-2, 40-Pin header, Jetson AGX Orin 32GB H01 Kit is preinstalled with Jetpack 5.0.2, simplifies development, and fits for deployment for edge AI solution providers working in video analytics, object detection, natural language processing, medical imaging, and robotics across industries of smart cities, security, industrial automation, smart factories.
Features
- Brilliant AI Performance for production: on-device processing with up to 200 TOPS AI performance with low power and low latency.
- Hand-size edge AI device: compact size at 107mm x 106.4mm x 70.5mm, includes Jetson AGX Orin™ production module, a heatsink with a cooling fan, enclosure, and a power adapter.
- Expandable with rich I/Os: PCIe X16, GbE, 10GbE, 3x USB 3.2, HDMI 2.1, M.2 Key M, M.2 Key E, 2.4/5GHz Wi-Fi, Bluetooth, 16 lane MIPI CSI-2, 40-Pin header.
- Accelerate solution to market: pre-installed JetPack 5.0.2, Linux OS BSP, support Jetson software and leading AI frameworks and software platforms.
Description
With rich extension modules, industrial peripherals, and thermal management, Jetson AGX Orin 32GB H01 Kit is ready to help you accelerate and scale the next-gen AI product by deploying popular DNN models and ML frameworks to the edge and inferencing with high performance, for tasks like real-time classification and object detection, pose estimation, semantic segmentation, and natural language processing (NLP).
At Seeed Studio, you will find everything you want to work with the NVIDIA Jetson Platform – official NVIDIA Jetson Dev Kits, Seeed-designed carrier boards, edge devices, as well as accessories.
We have prepared abundant guides to get started with NVIDIA Jetson using leading AI frameworks and software. For example, with Deepstream and TensorRT, developers can deploy custom YOLOv5 models on Jetson AGX Orin.
Welcome to check out our free Edge AI partner program. We are looking forward to leveraging local and global resources to accelerate next-gen AI products together with you.
Developer Tools
Pre-installed Jetpack for fast development and edge AI integration
Jetson software stack begins with NVIDIA JetPack™ SDK which provides a full development environment and includes CUDA-X accelerated libraries and other NVIDIA technologies to kickstart your development. JetPack includes the Jetson Linux Driver package which provides the Linux kernel, bootloader, NVIDIA drivers, flashing utilities, sample filesystem, and toolchains for the Jetson platform. It also includes security features, over-the-air update capabilities, and much more.
Computer Vision and embedded machine learning
- NVIDIA DeepStream SDK delivers a complete streaming analytics toolkit for AI-based multi-sensor processing and video and image understanding on Jetson.
- NVIDIA TAO tool kit, built on TensorFlow and PyTorch, is a low-code version of the NVIDIA TAO framework that accelerates the model training
- alwaysAI: build, train, and deploy computer vision applications directly at the edge of reComputer. Get free access to 100+ pre-trained Computer Vision Models and train custom AI models in the cloud in a few clicks via enterprise subscription. Check out our wiki guide to get started with alwaysAI.
- Edge Impulse: the easiest embedded machine learning pipeline for deploying audio, classification, and object detection applications at the edge with zero dependencies on the cloud.
- Roboflow provides tools to convert raw images into a custom-trained computer vision model of object detection and classification and deploy the model for use in applications. See the full documentation for deploying to NVIDIA Jetson with Roboflow.
- YOLOv5 by Ultralytics: use transfer learning to realize few-shot object detection with YOLOv5 which needs only a very few training samples. See our step-by-step wiki tutorials
- Deci: optimize your models on NVIDIA Jetson Nano. Check the webinar at Deci of Automatically Benchmark and Optimize Runtime Performance on NVIDIA Jetson Nano and Xavier NX Devices
Speech AI
NVIDIA® Riva is a GPU-accelerated SDK for building Speech AI applications that are customized for your use case and deliver real-time performance.
Remote Fleet Management
Enable secure OTA and remote device management with Allxon. Unlock 90 days free trial with code H4U-NMW-CPK.
Robot and ROS Development
- NVIDIA Isaac ROS GEMs are hardware-accelerated packages that make it easier for ROS developers to build high-performance solutions on NVIDIA hardware. Learn more about NVIDIA Developer Tools
- Cogniteam Nimbus is a cloud-based solution that allows developers to manage autonomous robots more effectively. Nimbus platform supports NVIDIA® Jetson™ and ISAAC SDK and GEMs out-of-the-box. Check out our webinar on connecting your ROS Project to the Cloud with Nimbus.
Comparison among Jetson AGX Orin 32GB H01 Kit and AGX Orin Developer Kit
Specifications |
Jetson AGX Orin 32GB H01 Kit |
|
AI Performance |
200 TOPS |
275 TOPS |
GPU |
1792-core NVIDIA Ampere GPU with 56 Tensor Cores |
NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 Tensor Cores |
CPU |
8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
Memory |
32 GB 256-bit LPDDR5 204.8 GB/s | |
DL Accelerator |
2 x NVDLA v2.0 | |
Vision Accelerator |
1 x PVA v2.0 | |
Storage |
64GB eMMC 5.1 | |
Video Encoder |
1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) |
2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265) |
Video Decoder |
1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) 1x 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.264) |
1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60| 24x 1080p30 (H.265) |
Display |
1* HDMI 2.1 |
1* DisplayPort 1.4a (+MST) |
Camera |
1* 16 lane MIPI CSI-2 connector | |
Networking |
1* GbE 1* 10GbE |
1* 10GbE |
USB |
2x USB 3.2 Type-A (Integrated USB 2.0), 1x USB 3.2 Type-C (Integrated USB 2.0) |
2x USB 3.2 Gen2 Type-Cwith USB-PD support 4x USB 3.2 Gen2 Type-A USB 2.0 Micro-B
|
M.2 Key M |
1* M.2 Key M | |
M.2 Key E |
1* M.2 Key E (pre-installed WIFI+BT:8265.NGWMG.NV 949399) |
/ |
Fan |
1* 4-pin fan (5V PWM) |
4-pin fan header (fan not included) |
microSD card slot |
1 * microSD card slot | |
Audio Jack |
1* 3.5mm audio jack |
/ |
RTC |
2-pin RTC | |
RS485 |
1* RS485(3P 1.5mm pitch) |
/ |
RS232 |
1* RS232(3P 1.5mm pitch) |
/ |
Others |
40-pin header, 1* SPI Bus(+3.3V Level), 6* GPIO(+3.3V Level), 1x CAN, Force Recovery, Reset and Power ON/ OFF buttons |
40-pin header, 12-pin automation header, 10-pin audio panel header, 10-pin JTAG header, Force Recovery, and Reset buttons |
Power Supply |
+9---+20V DC Input @ 8A |
19V via USB Type-C |
Mechanical |
107mm x 106.4mm x 70.5mm |
110mm x 110mm x 71.65mm |
Operating Temperature |
-25 ⁰C to +70 ⁰C |
0 ⁰C to 35 ⁰C |
For a more comprehensive overview of the Jetson-powered devices, services that we offer, and applications together with other partners, please visit our NVIDIA Jetson Series Catalog.
Hardware Overview
Interface-rich reference carrier board
Jetson AGX Orin 32GB H01 Kit is a high-performance, interface-rich kit, providing PCIe X16, 1x 1GbE, 1x 10GbE, 3x USB 3.2, HDMI 2.1, M.2 Key M, and M.2 Key E, 2.4/5GHz Wi-Fi, Bluetooth, 16 lane MIPI CSI-2, UART, 40-Pin header, and other rich peripheral interfaces.
Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capabilities to all your embedded AI and edge systems.
Applications
Jetson AGX Orin 32GB H01 Kit is ideal for building autonomous applications and complex AI tasks of image recognition, object detection, pose estimation, semantic segmentation, video processing, and many more. The following are few of the applications that have been tested with Xavier NX and you can take them for reference in order to build applications using AGX Orin as well.
- Traffic management
- license plate detection
- car detection
- pedestrian detection
- Industry 4.0:
- helmet detection, hard hat detection, and custom PPE detection
- visual anomaly detection using NVIDIA Deepstream IoT
- Retail:
- sentiment analysis(webinar: learn your customer with AI by Zenus smart camera),
- retail store items detection
- Robotics:
- Edge AI into the Wild: Wildfire detection
- Agriculture: weeding machines, Tractors, Livestock detection
- Healthcare: medical imaging analysis
Find in the Jetson Community Resources page tools and tutorials the community has created to power your development experience, and check out the Community Projects page to inspire your next project!
Note
Part List
Jetson AGX Orin 32GB | ×1 |
Seeed carrier board | ×1 |
Aluminum heatsink with fan | ×1 |
Aluminum case | ×1 |
19V/4.74A(Barrel Jack 5.5/2.5mm) power adapter | ×1 |
Note
ECCN/HTS
HSCODE | 8471504090 |
USHSCODE | 8473301180 |
UPC | |
EUHSCODE | 8471707000 |
COO | CHINA |
