JST PH 4-Pin to Male Header Cable - I2C STEMMA Cable - 200mm

Price:
Sale price A$4.77   Inc. GST
SKU:
ADA3955
Out Of Stock

We will notify you when this product becomes available.

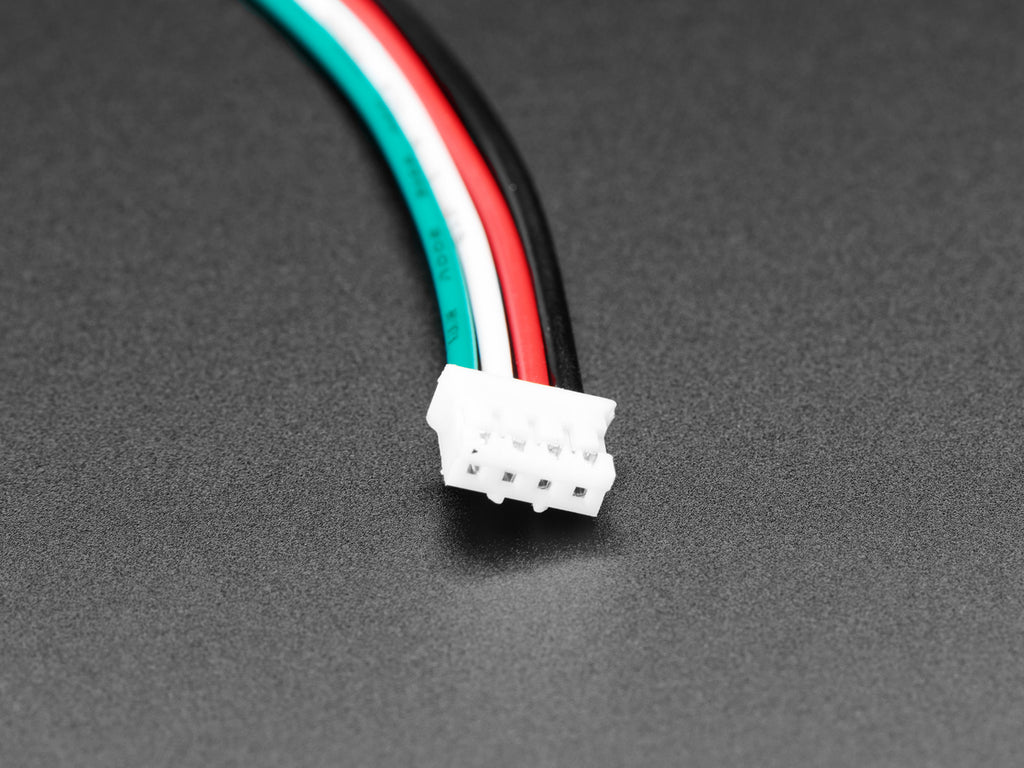

This cable will let you turn a JST PH 4-pin cable port into 4 individual wires with high-quality 0.1" male header plugs on the end. We're carrying these to match up with any of our boards with 'STEMMA' connectors on them such as the Hallowing or Trellis M4. Can also be used with any STEMMA breakouts! This one has header pins, so it could be used to connect to socket header or breadboards.

The wires are even color coded:

  • Black for GND
  • Red for V+
  • White for SDA
  • Green for SCL

Even though this is a JST PH connector, it will fit into a Seeed Grove connector and have the right matching wires as well.

We also stock a version with female headers on the end

For more information about JST PH connectors, visit the JST website



Technical Details

  • Wire Length: 7.8" / 200mm
  • Wire Diameter: 1.6mm
  • JST Connector: 8.5mm
  • JST Pitch: 2mm
  • 22 AWG
    RoHS 2 2011 65 EU Compliant
