Slow, slow, snail.
Fast, fast, flash.
Welcome to the era of fast charging! 5V/3A Lipo Rider Plus will greatly increase the charging speed, just like flashing lightning.
The Lipo Rider Plus from Seeed is simply a performance monster, supports up to 5V/3A charging current, boost output integration, output up to 5V/2.4A, can also output 3.3V /250mA. Wow, can’t believe it’s less than $5!
Simply put, the Lipo Rider Plus can charge the Lipo battery much faster, at the same time it can provide strong power for the slave device. Oops, forgot to introduce the difference between the Lipo rider and the traditional Lipo charger.
Lipo Rider VS Lipo Charger
As we know, the traditional Lipo Charger can charge the lithium battery. Well, usually they can only charge. But what can a Lipo Rider do? Let's see.

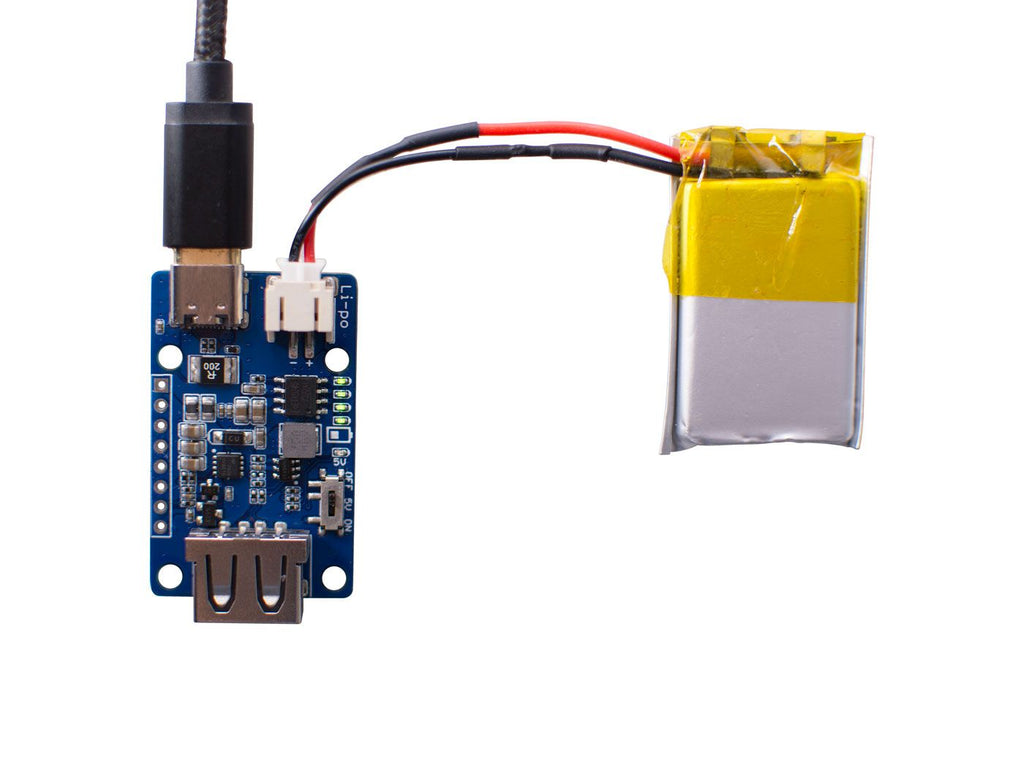

Charging the lithium battery
Of course, Lipo Rider Plus can charge the Lipo battery, and it is very fast, 5V/3A, 15W charging power, what a flying experience.
Use the battery to power the device
Not only a charger but also a power supply and a booster. With the help of Lipo Rider Plus, you can input a 3.7V lipo battery, and output up to 5V/2.4A via the USB Type-A port. With the on-board switch, you can control the ON/OFF of USB port easily. Meanwhile, we provide the full function pin header, which can output 3.3V/250mA as well.
Lipo Rider Plus VS Lipo Rider & Lipo Rider Pro
You may find that we've already released the Lipo Rider V1.3 and Lipo Rider Pro, so, what's the difference between Seeed Lipo Rider? In short, both LiPo Rider Pro and Lipo Rider v1.3 have two JST2.0 Port, which allows you to use a solar panel to charge a lipo battery.
However, the Lipo Rider Plus only has one JST2.0 port. Hence, it can not use a solar panel as the power source. The good news is that Lipo Rider Plus has become more compact, it is almost half the size of LiPo Rider Pro and Lipo Rider v1.3, you can easily mount it in any project. More importantly, its performance is much stronger than its two predecessors. All in all, if you need to work with solar panels, then LiPo Rider Pro and Lipo Rider v1.3 are right for you; if you want to experience fast charging, then Lipo Rider Plus will be your best choice.
Features
- Up to 5V / 3A charging current - USB Type C
- Up to 5V / 2.4A output current - USB Type A
- Provides 3.3V / 250mA output - Pin Header
- Support for shutdown output (IO control/manual switch)
- Onboard charge status indicator LED + Onboard 4-segment power indicator LED

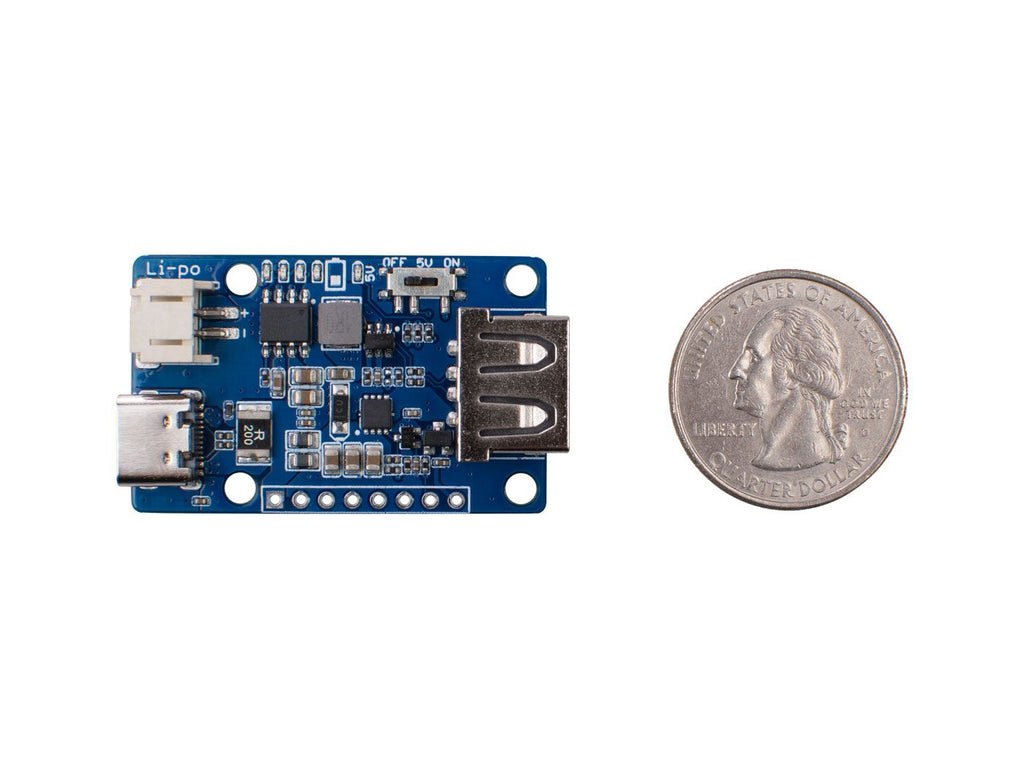

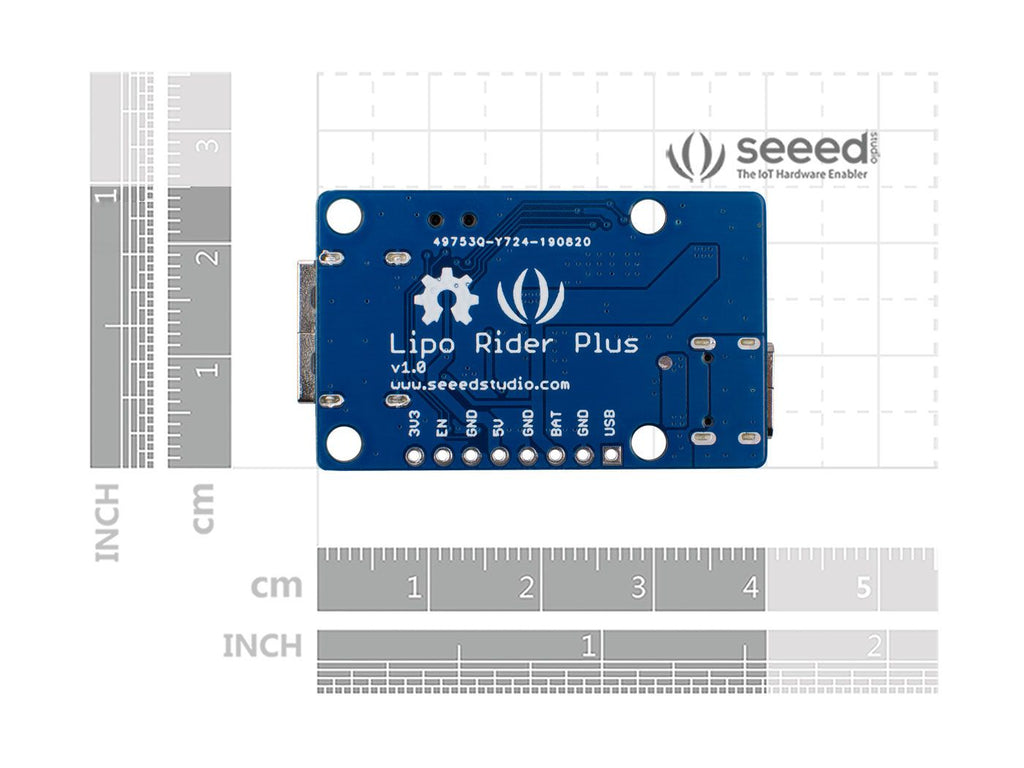

- Ultra-small 2.5cm*4.1cm
- Single-layer layout easy mount.
Hardware Overview
ECCN/HTS
| ECCN | EAR99 |
| HSCODE | 9030900090 |
| UPC |
- Reviews
- Questions
AustraliaLiPo Charger/Booster Review
I recently got this cool little LiPo 5V boost/charger module and has worked amazingly. I can power my Arduino projects with a small LiPo battery instead of the 6 AA batteries I usually use. This creates a more compact bundle for portable projects. It also has LEDs for battery percentage and power output. Would definitely recommend!
AustraliaA very good product
Fast deliveryHigh quality productEasy to use
AustraliaGreat product!
Straight forward connections and easy to use.
