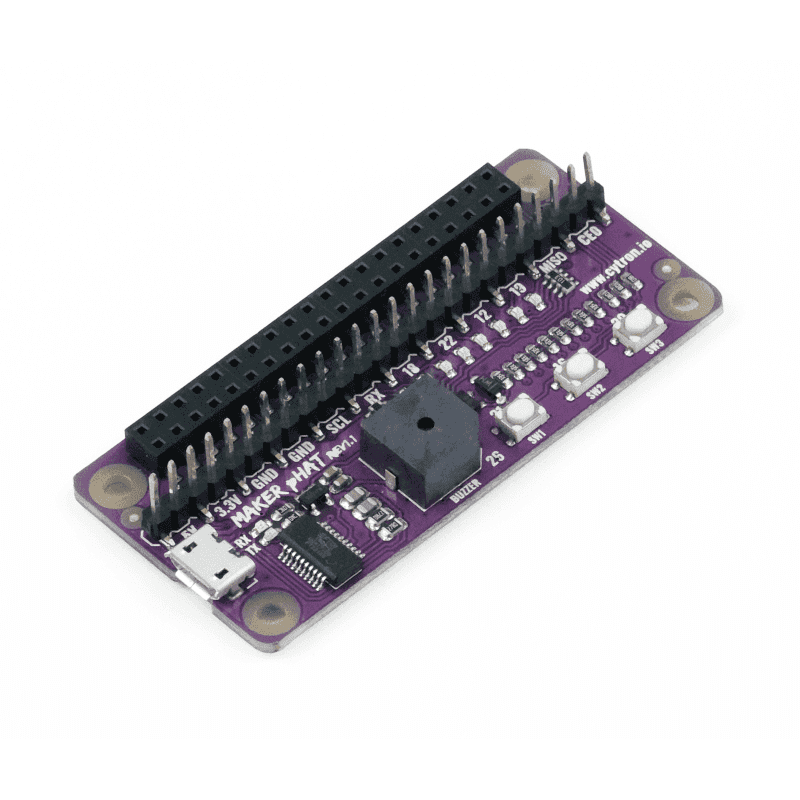

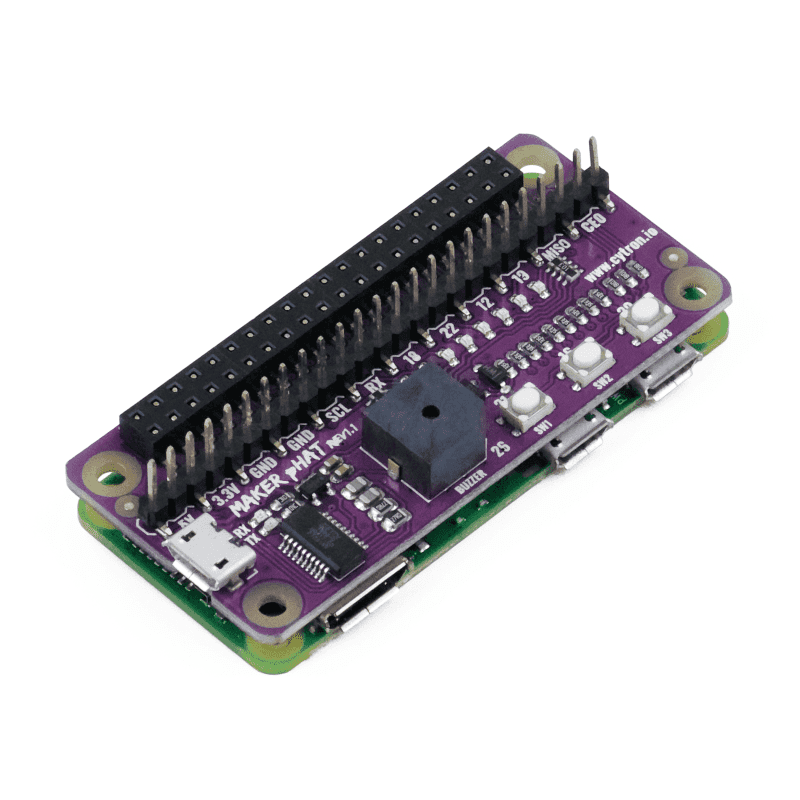

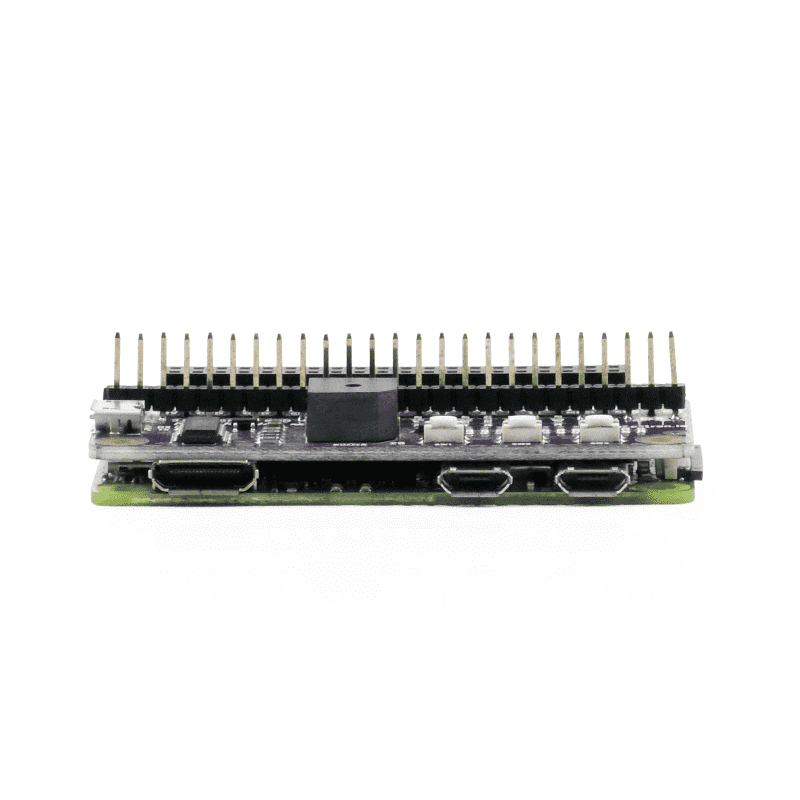

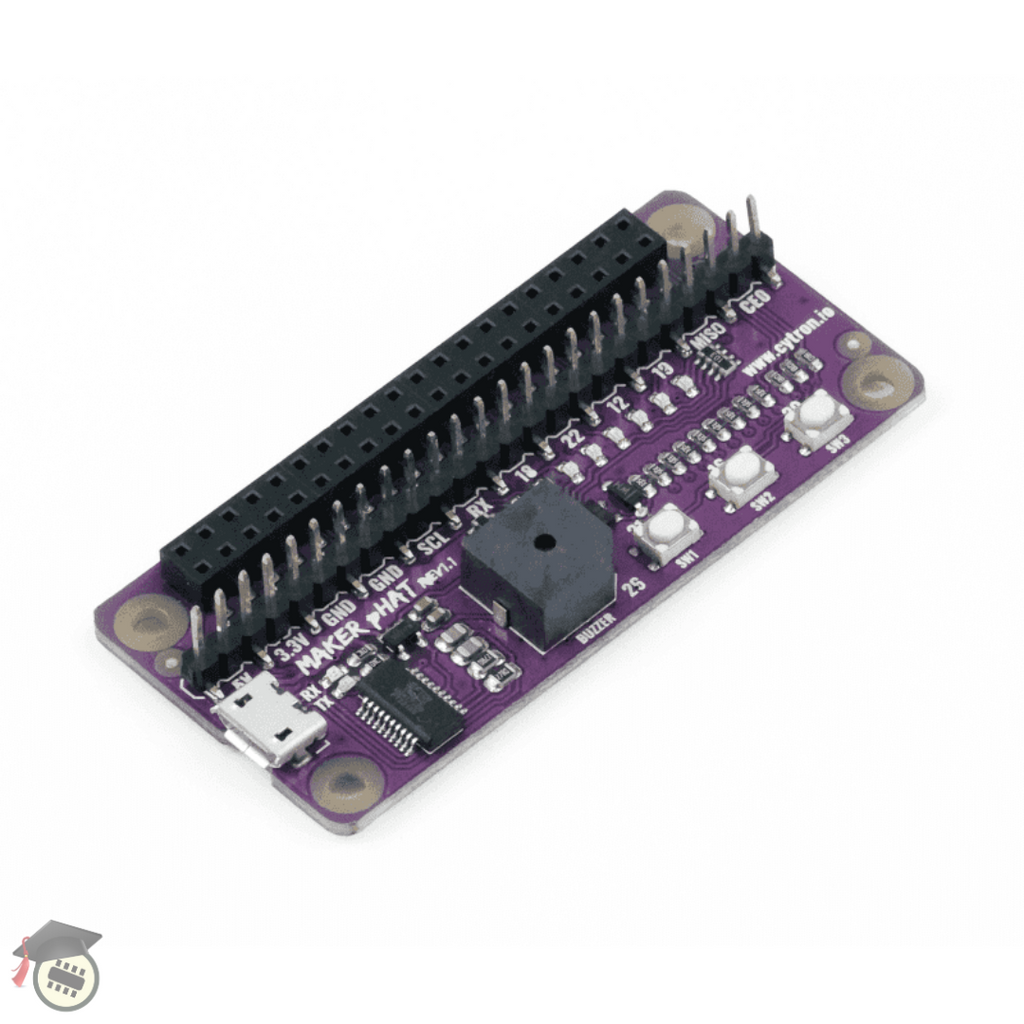

- Raspberry Pi Zero size, stack perfectly on to Pi Zero Series of SBC (Single Board Computer).

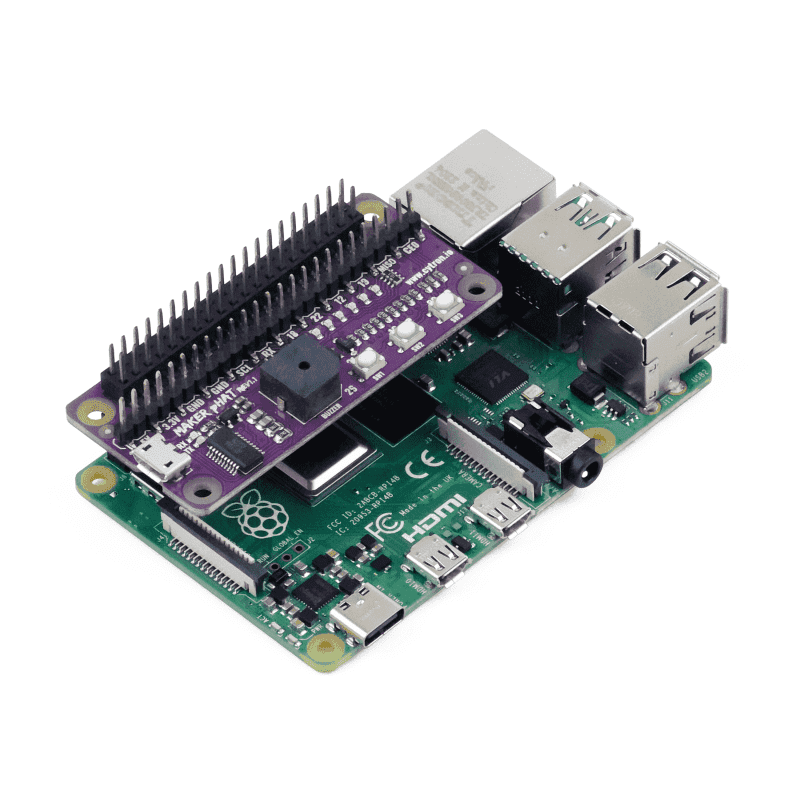

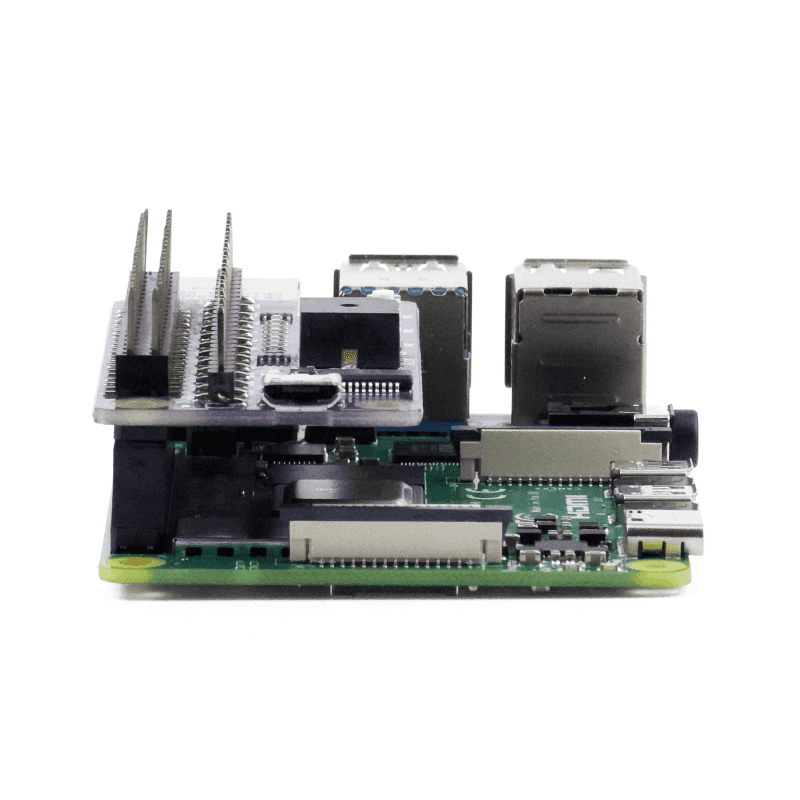

- Compatible with standard size Raspberry Pi 3B/3B+/4B1GB/4B2GB/4B4GB, medium size Raspberry Pi 3A+ and smaller size Raspberry Pi Zero/W/WH.
- Standard Raspberry Pi GPIO footprint.
- LED array for selected GPIO pins (GPIO 17, 18, 27, 22, 25, 12, 13, 19).
- 3x onboard programmable push buttons (GPIO 21, 19 and 20, need to configure as input pull up).
- Onboard active buzzer (GPIO 26).

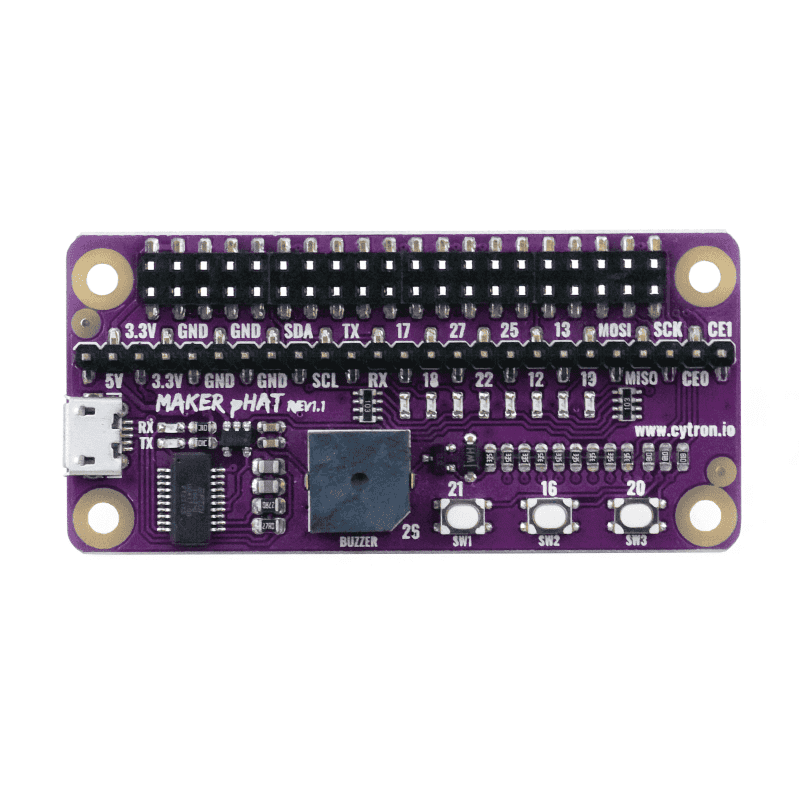

- Proper label for all GPIOs, including SPI, UART, I2C, 5V, 3.3V, and GND.
- Utilize USB Micro-B socket for 5V input and USB to UART communication.
- USB serial facilitated by the CH340, Rev1.10 uses FT231X as the USB to UART
- Input voltage: USB 5V, from the computer, power bank or standard USB adapter.
- PURPLE PCB!
- 1 x Maker pHAT
- 1 x 2x20 Stacking Header
- Schematic Rev1.00 (pdf)
- Schematic Rev1.10 (pdf)
