mBot2 replacement part Encoder motor

mBot 2 is powered by powerful Encoder motor

If you are looking for a replacement part for your mBot 2 then look no further.

Please note it does not include a cable if you also need cable then buy this.

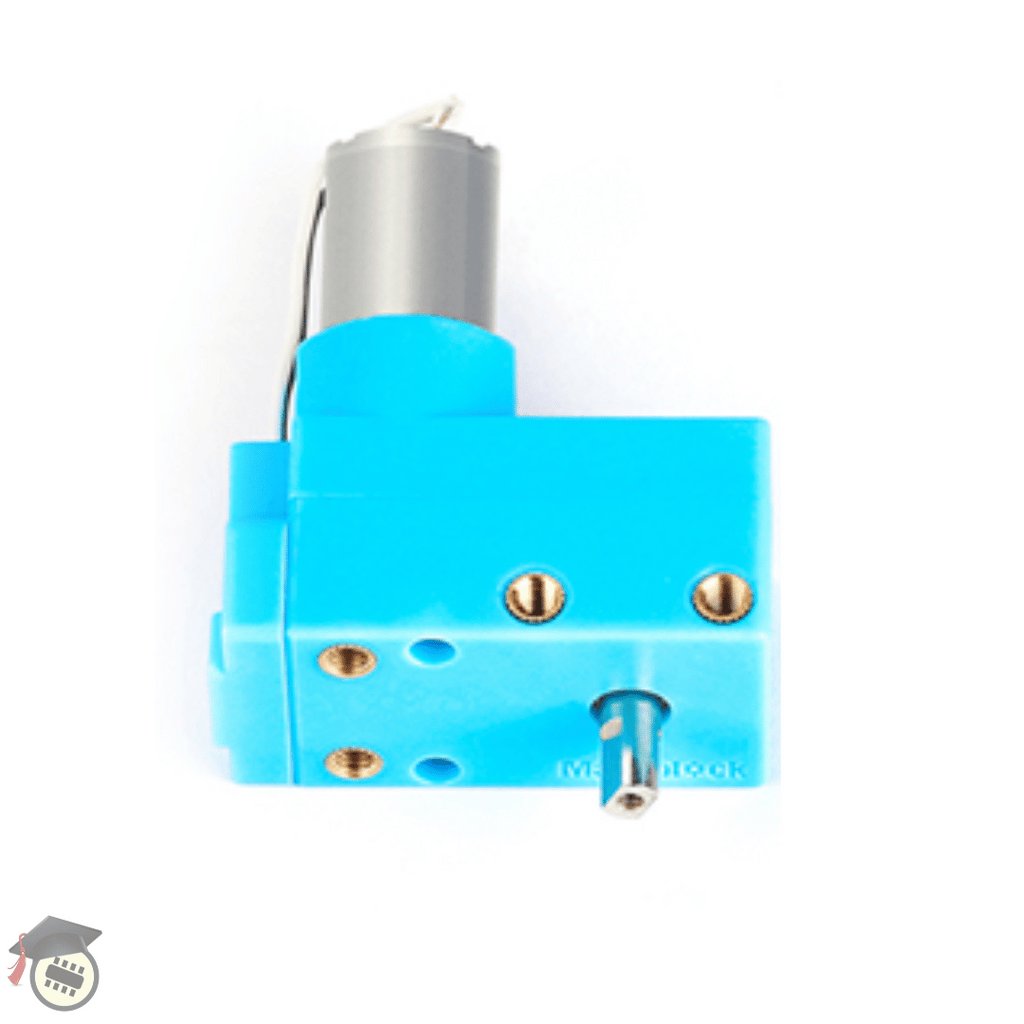

The photoelectric encoder motor 180 RPM is equipped with an optical encoder that enables high-accuracy control. With two M4 threaded holes on each of the three sides, it can be easily connected to Makeblock mechanical parts and thus can be used flexibly in combination with various other parts. The customized material it uses reduces noise and promises large output torque. It supports multiple motor drivers and main control boards, such as Orion, MegaPi, MegaPi Pro, and Me Auriga.

Specifications

• Reduction gear ratio: 39.6
• Rated voltage: 7.4 V
• No-load current: 240 mA
• Load current: ≤750 mA
• No-load speed: 350 ± 5% (RPM)
• Original speed: 14,000 ± 5% (RPM)
• Start torque: 5 kg·cm
• Rated torque: 800 g·cm
• Length of output shaft: 9 mm
• Power: 3.7 W
• Encoder rotation angle: 360°

Programming guide

● Program with mBlock 5

Block description (main control board: Auriga)

Block	Feature
	Select a port   Set the power to -100–100
	Select a port   Set the speed (the maximum speed depends on the motor model)
	Select a port   Set the rotation angle (a natural number) Set the speed (the maximum speed depends on the motor model)
	Obtain the speed of the motor
	Obtain the angle of the motor from the origin

After the following program runs, encoder motor 1 and encoder motor 2 rotate at the speed of 100 RPM for 1 second and stop rotating for 1 second, and then repeat this process.

● Program with mBlock 3

Block description

Block	Feature
	Select a slot   Set the power to -255–255
	Select a slot   Set the speed (the maximum speed depends on the motor model)
	Select a slot   Set the rotation angle (a natural number) Set the speed (the maximum speed depends on the motor model)
	Obtain the speed of the motor
	Obtain the position or degree of the motor from the origin

After the following program runs, encoder motor 1 and encoder motor 2 rotate at the speed of 100 RPM for 1 second and stop rotating for 1 second, and then repeat this process.

● Program in Arduino

If you program in Arduino, you need to use Makeblock-Library-master to control the motor.

After the following program runs, encoder motor 1 and encoder motor 2 rotate at the speed of 100 RPM for 1 second and then stop rotating for 1 second, and then repeat this process.

● Program in Python

1. Install MegaPi Pro on Raspberry Pi, and connect the photoelectric encoder motor 180 RPM to the DC/encoder driver.
2. Install the latest Makeblock library for Raspberry Pi, do a “pip3 install makeblock” in the command line, and then do an “upgrade” in the command line.
3. Create a Python file suffixed with .py.
4. Write a program in the Python file.
5. Run the Python file, for example, “python123.py”.

Function description

Example program 1:

After the following program runs, the encoder motor connected to port 1 for DC/encoder motor on MegaPi Pro rotates clockwise at the speed of 50 RPM for 2 seconds, stops rotating for 1 second, rotates anticlockwise at the speed of 50 RPM for 2 seconds, stops rotating for 1 second, and then repeats this process.

from time import sleep
from makeblock import MegaPiPro
board = MegaPiPro.create()
encoder = board.EncoderMotor(MegaPiPro.PORT1)
while True:
encoder.run(50)
sleep(2)
encoder.run(0)
sleep(1)
encoder.run(-50)
sleep(2)
encoder.run(0)
sleep(1)

Example program 2:

After the following program runs, the encoder motor connected to port 1 for DC/encoder motor on MegaPi Pro rotates to the target position.

10 lines (9 sloc) 274 Bytes
RawBlameHistory

from time import sleep
from makeblock import MegaPiPro
board = MegaPiPro.create()
encoder = board.EncoderMotor(MegaPiPro.PORT1)
position = 0
def on_finished(value):
position = 5000 – position
encoder.move_to(position,100,on_finished)

on_finished(position)

Wiring mode

● Connect electronic modules

Connect the photoelectric encoder motor 180 RPM to the port for encoder motor on the main control board or the port for encoder motor on the encoder motor driver by using the cable for photoelectric encoder motor 180 RPM.

● Build the structure

The photoelectric encoder motor 180 RPM can be used to provide power or used as a part of the chassis of mBot Ranger. Its shaft is compatible with the plastic timing pulley 62T with step and the plastic timing pulley 90T with step on Maker’s Platform of Makeblock.
